74240 (Z 286 E) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) GROUP 5-IGNITION/ELECTRICAL ASSEMBLY KOHLER CH26S-78518 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

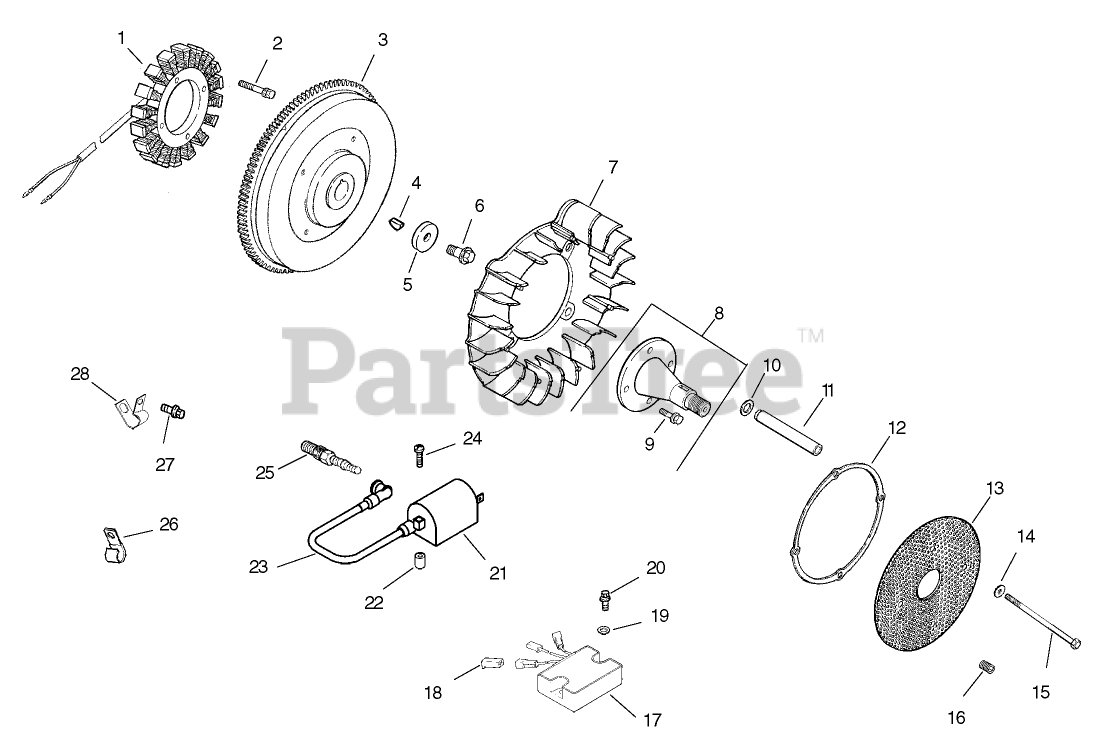

GROUP 5-IGNITION/ELECTRICAL ASSEMBLY KOHLER CH26S-78518 Parts Diagram

  • Title

1

Kohler 28 085 02-S

STATOR ASM (25 AMP)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$194.99

$

In Stock, only 1 left!

0

2

Kohler M-545030-S

Screw-Cap, Hex (M5x0.8x30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler 24 025 09-S

Flywheel
(Superseded to 24 025 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$283.99

$

Usually ships in 2-5 days

0

4

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 4 left!

0

5

Kohler 12 468 03-S

WASHER-FLAT (13/32)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

6

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 24 157 04-S

Fan

Note: Call PartsTree Customer Service for more information on Kohler Parts

$79.99

$

Usually ships in 2-5 days

0

8

Kohler 24 755 08-S

Kit, front drive shaft (Includes 9)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$174.99

$

Usually ships in 2-5 days

0

9

Kohler M-839025-S

Screw-HF (M8x1.25x25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

8

Kohler 24 468 11-S

Washer-Spring (10MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

9

Kohler 24 112 14-S

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

In Stock, Qty 12

0

10

Kohler 24 141 06-S

Ring-Support
(Superseded to 25 141 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, Qty 10

0

11

Kohler 24 162 22-S

Screen-Grass
(Superseded to 24 162 38-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, only 1 left!

0

12

Kohler X-25-53-S

WASHER-FLAT (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 13

0

13

Kohler M-603100-S

Screw-HH (M6x1.0x100)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 15

0

14

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 25 403 05-S

Rectifier-Regulator (15 amp)
(Superseded to 25 403 39-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$85.99

$

In Stock, Qty 17

0

16

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

In Stock, Qty 11

0

17

Kohler X-25-92-S

WASHER-FLAT (.188)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 2 left!

0

18

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 24 519 02-S

Coil-Ignition

Note: Call PartsTree Customer Service for more information on Kohler Parts

$179.99

$

In Stock, only 1 left!

0

20

Kohler 24 112 16-S

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$29.99

$

Usually ships in 2-5 days

0

21

Kohler 24 131 02-S

Spark Plug Boot ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$57.99

$

Usually ships in 2-5 days

0

22

Kohler 24 086 48-S

Screw-Tapping

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

23

Kohler 12 132 06-S

Spark Plug
(Superseded to 25 132 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$20.99

$

Usually ships in 2-5 days

0

24

Kohler 48 154 02-S

Clip-Cable

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

Usually ships in 2-5 days

0

25

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

26

Kohler 25 237 06-S

Clamp-Hose
(Superseded to 25 237 35-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, only 1 left!

0

Kohler 24 518 12-S

Lead-Black

Note: Not illustrated

$4.99

$

In Stock, only 1 left!

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Not illustrated

$2.49

$

In Stock, Qty 6

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 6

0

Kohler 12 454 03-S

Tie-Wire

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

Kohler 12 454 03-S

Tie-Wire

Note: Not illustrated

$3.49

$

Usually ships in 2-5 days

0
