74241 (Z 286 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) TANK AND FUEL LINE ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

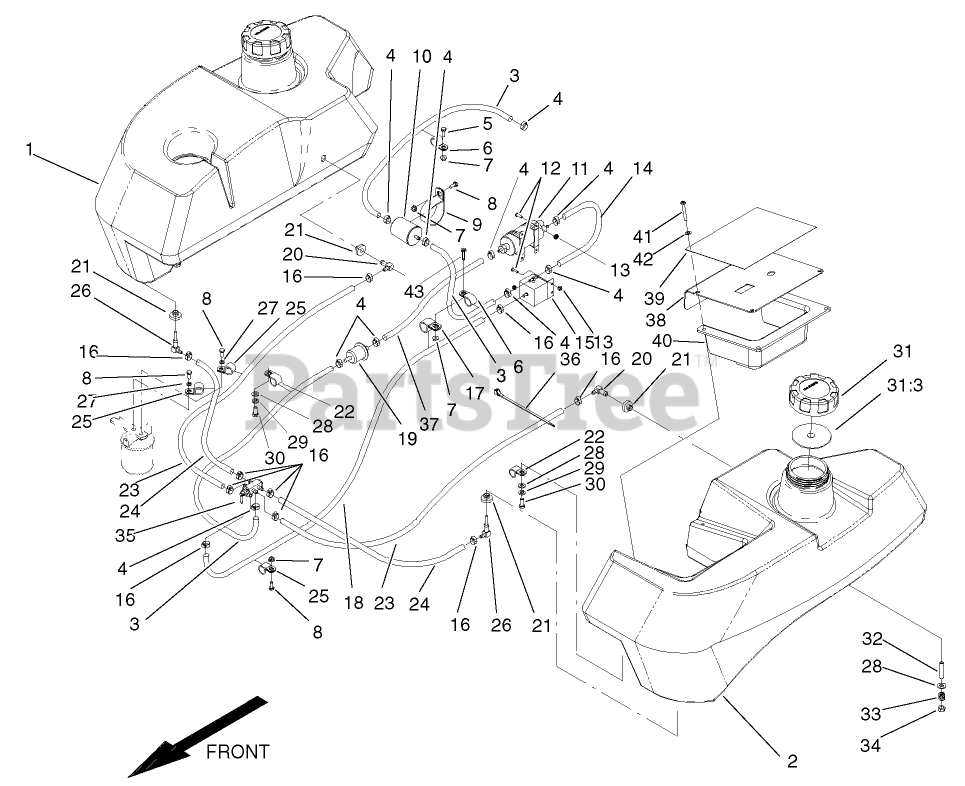

TANK AND FUEL LINE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-5111

TANK-FUEL, RH
(Superseded to 110-0440)

$

$

Not available

2

Toro 104-5110

TANK-FUEL, LH
(Superseded to 114-8222)

$687.99

$

Usually ships in 3-6 days

0

3

Toro 1-643238

HOSE-FUEL

$

$

Not available

4

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

Usually ships in 3-6 days

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

7

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 1 left!

0

9

Toro 1-643241

CLIP-LOOM

$18.99

$

Usually ships in 3-6 days

0

10

Toro 24-050-03

Kohler Fuel Filter

$

$

Currently unavailable

11

Toro 24-393-20

Kohler Fuel Pump

$

$

Currently unavailable

12

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 1-643236

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0

15

Toro 24-403-12

Kohler Fuel Regulator

$

$

Currently unavailable

16

Toro 1-643293

CLAMP-HOSE, FUEL

$6.49

$

In Stock, Qty 6

0

17

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

18

Toro 1-643235

HOSE-FUEL

$27.99

$

Usually ships in 3-6 days

0

19

Toro 99-9403

FILTER-FUEL
(Superseded to 108-3831)

$10.99

$

In Stock, only 2 left!

0

20

Toro 1-643172

ELBOW-90 DEG

$11.99

$

Usually ships in 3-6 days

0

21

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

22

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

23

Toro 103-0216

HOSE-FUEL

$

$

Not available

24

Toro 1-543456

HOSE-FUEL

$12.99

$

In Stock, Qty 7

0

25

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

26

Toro 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 20+

0

27

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

31:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 4 left!

0

32

Toro 1-633023

STUD

$6.49

$

In Stock, only 3 left!

0

33

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 9

0

34

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

35

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$217.99

$

In Stock, only 1 left!

0

36

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

37

Toro 1-643239

HOSE-FUEL

$18.99

$

Usually ships in 3-6 days

0

38

Toro 99-4656-03

Panel-Control

$

$

Not available

39

Toro 99-4632

DECAL-PANEL, CONTROL

$33.99

$

Usually ships in 3-6 days

0

40

Toro 99-4940

SHIELD-PANEL, CONTROL

$83.99

$

Usually ships in 3-6 days

0

41

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 20+

0

42

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

43

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
