74241 (Z 286 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) FUEL SYSTEM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

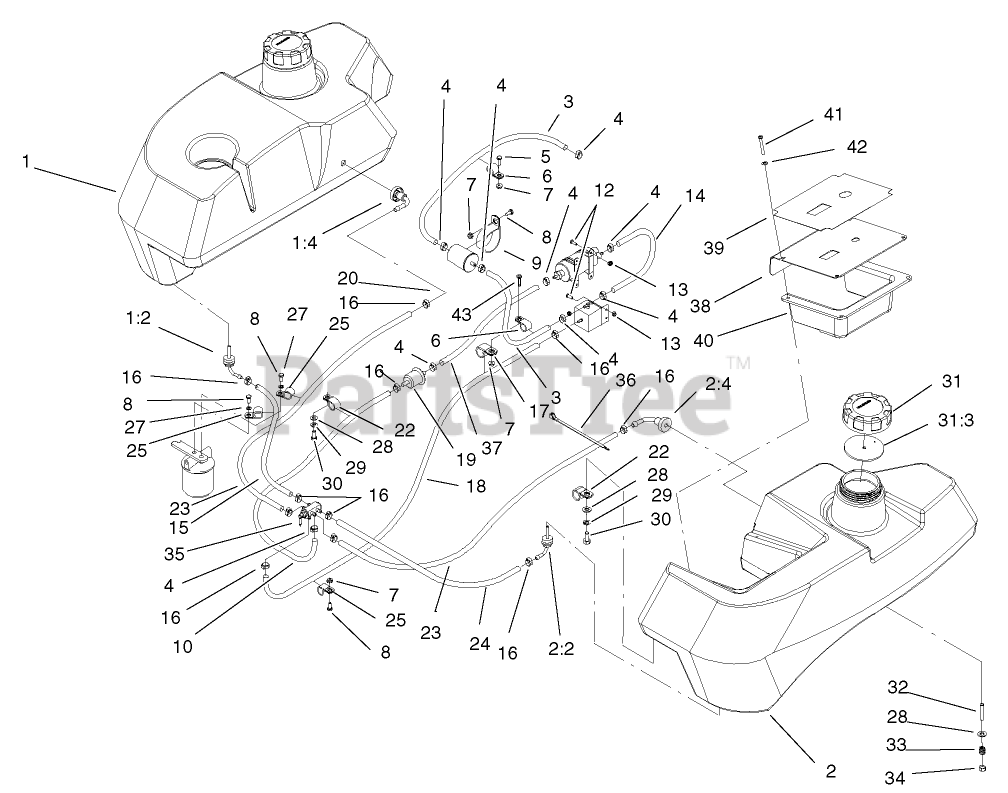

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 105-3626

ASM, TANK-FUEL RH
(Superseded to 110-0440)

$

$

Not available

1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, Qty 11

0

1:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$39.99

$

In Stock, only 1 left!

0

2

Toro 105-3627

ASM, TANK-FUEL LH
(Superseded to 114-8222)

$687.99

$

Usually ships in 3-6 days

0

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, Qty 11

0

2:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$39.99

$

In Stock, only 1 left!

0

3

Toro 103-2491

Hose-Fuel

$93.99

$

Usually ships in 3-6 days

0

4

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

Usually ships in 3-6 days

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

7

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 1 left!

0

9

Toro 1-643241

CLIP-LOOM

$18.99

$

Usually ships in 3-6 days

0

10

Toro 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

12

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 103-2490

Hose-Fuel
(Superseded to 109-2067)

$66.99

$

Usually ships in 3-6 days

0

15

Toro 103-2885

Hose-Fuel

$13.99

$

Usually ships in 3-6 days

0

16

Toro 1-643293

CLAMP-HOSE, FUEL

$6.49

$

In Stock, Qty 6

0

17

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

18

Toro 103-2492

Hose-Fuel

$

$

Not available

19

Toro 103-2595

Connector

$6.49

$

Usually ships in 3-6 days

0

22

Toro 103-0373

Clip

$3.99

$

Usually ships in 3-6 days

0

23

Toro 103-0216

HOSE-FUEL

$

$

Not available

24

Toro 1-543456

HOSE-FUEL

$12.99

$

In Stock, Qty 7

0

25

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

27

Toro 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

31:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 4 left!

0

32

Toro 1-633023

STUD

$6.49

$

In Stock, only 3 left!

0

33

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 9

0

34

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

35

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$217.99

$

In Stock, only 1 left!

0

36

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

37

Toro 1-643239

HOSE-FUEL

$18.99

$

Usually ships in 3-6 days

0

38

Toro 99-4656-03

Panel-Control

$

$

Not available

39

Toro 99-4632

DECAL-PANEL, CONTROL

$33.99

$

Usually ships in 3-6 days

0

40

Toro 99-4940

SHIELD-PANEL, CONTROL

$83.99

$

Usually ships in 3-6 days

0

41

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 20+

0

42

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

43

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
