74242 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240003001 - 240999999) (2004) EXHAUST ASSEMBLY KOHLER CH20 PS-64706 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

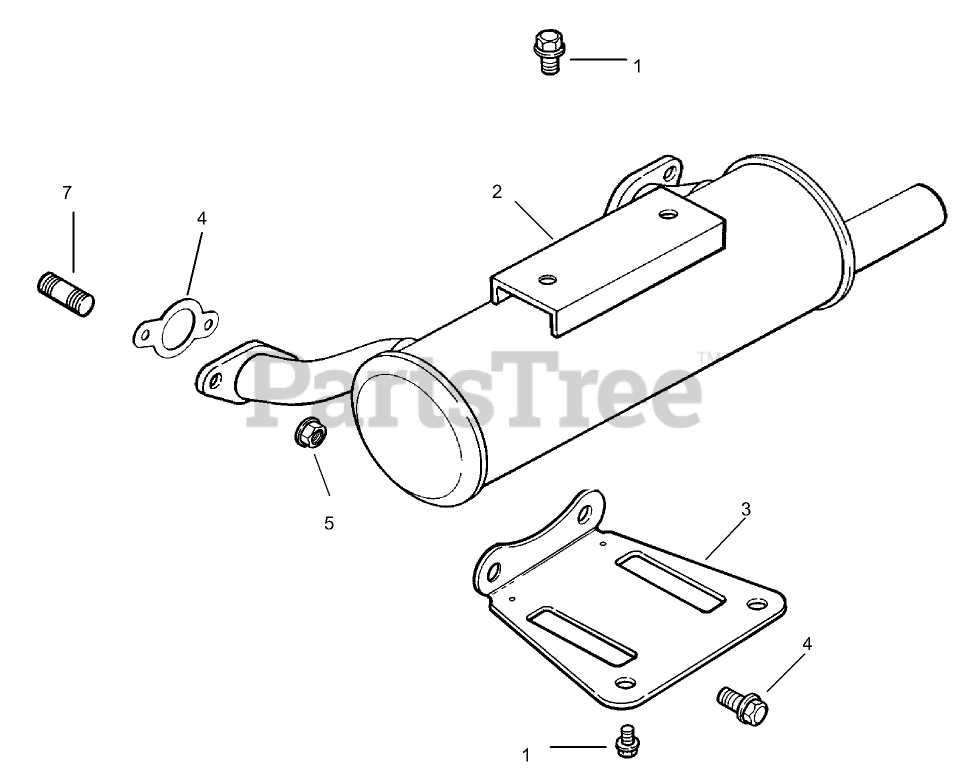

EXHAUST ASSEMBLY KOHLER CH20 PS-64706 Parts Diagram

  • Title

1

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

2

Kohler 24 068 18-S

Muffler
(Superseded to 24 068 132-S)

Note: Obtain parts from www.kohlerplus.com

$354.99

$

In Stock, only 1 left!

0

3

Kohler 24 126 12-S

Bracket-Muffler

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 1 left!

0

4

Kohler M-839020-S

SCREW-HF (M8X1.25X20)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 2 left!

0

5

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 6

0

7

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 8

0

Kohler 24 522 167

Shortblock

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 522 167

Shortblock

Note: Not illustrated

$

$

Not available

Kohler 24 782 15

Miniblock

Note: Not illustrated

$

$

Not available

Kohler 24 782 15

Miniblock

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 24 755 107-S

Gasket Set

Note: Obtain parts from www.kohlerplus.com

$165.99

$

In Stock, only 2 left!

0

Kohler 24 755 107-S

Gasket Set

Note: Not illustrated

$165.99

$

In Stock, only 2 left!

0
