74242 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240003001 - 240999999) (2004) OIL PAN AND LUBRICATION ASSEMBLY KOHLER CH20 PS-64706 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

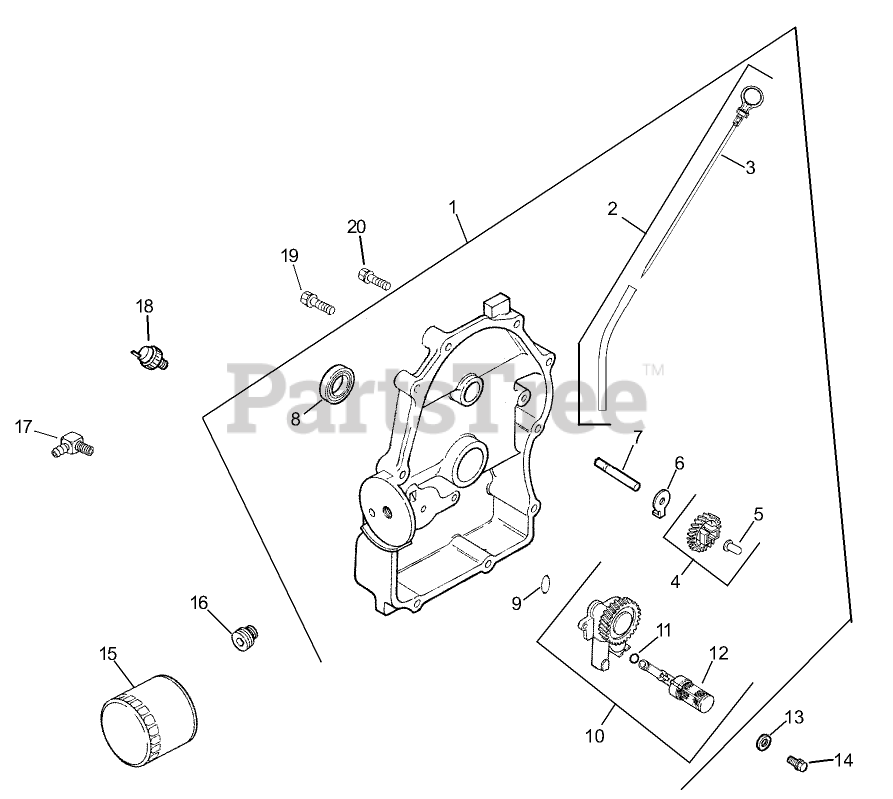

OIL PAN AND LUBRICATION ASSEMBLY KOHLER CH20 PS-64706 Parts Diagram

  • Title

1

Kohler 24 009 83-S

Kit, closure plate (Includes 2-12,19,20)
(Superseded to 24 009 238-S)

Note: Obtain parts from www.kohlerplus.com

$406.99

$

Usually ships in 2-5 days

0

2

Kit, dipstick and tube (Includes 3)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Dipstick

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 24 043 12-S

Kit, governor gear w/pin (Includes 5)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

Usually ships in 2-5 days

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 13

0

6

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 5

0

8

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

9

Kohler 24 153 08-S

O-Ring

Note: Obtain parts from www.kohlerplus.com

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 24 393 10-S

Oil pump assembly (Includes 11, 12)
(Superseded to 24 393 37-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 24 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

12

Kohler 24 381 04-S

TUBE-PICK UP, OIL

Note: Obtain parts from www.kohlerplus.com

$34.99

$

In Stock, only 4 left!

0

13

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

14

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

15

Filter-Oil

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

16

Kohler 24 136 01-S

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

Usually ships in 2-5 days

0

17

Kohler 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0

18

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL

Note: Obtain parts from www.kohlerplus.com

$34.99

$

In Stock, only 2 left!

0

19

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 19

0

20

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 19

0
