74244 (Z 553) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) EXHAUST ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

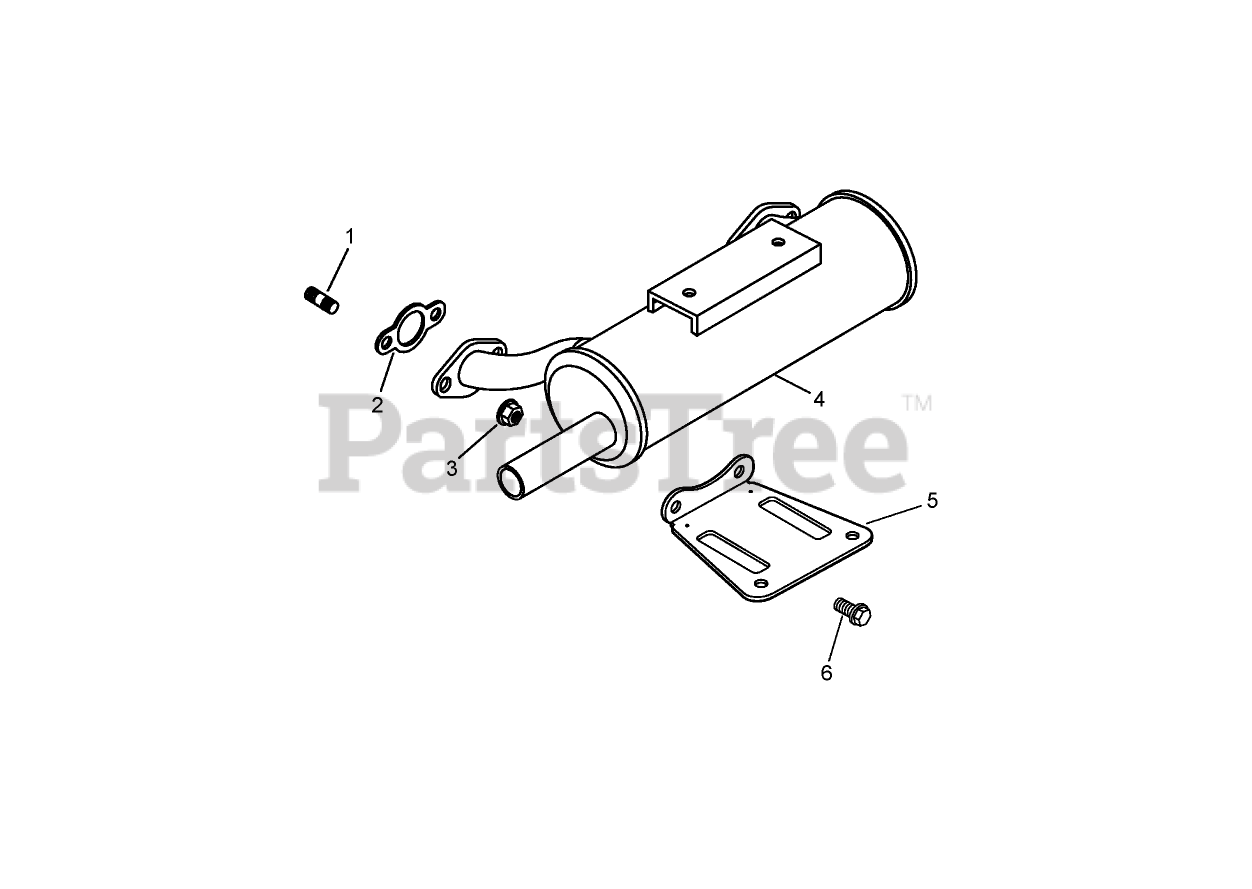

EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Kohler 25 072 04-S

STUD (M8X1.25X33)
(Superseded to 25 072 24-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

2

Kohler 24 041 49-S

GASKET-EXHAUST
(Superseded to 25 041 17-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

3

Kohler M-841080-S

NUT-FLANGE (M8X1.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 11

0

4

Kohler 24 068 18-S

Muffler
(Superseded to 24 068 132-S)

Note: Obtain parts from www.kohlerplus.com

$279.99

$

In Stock, only 2 left!

0

5

Kohler 24 126 12-S

Bracket-Muffler

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

6

Kohler M-839020-S

SCREW-HF (M8X1.25X20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler 24 522 252

Short Block

Note: Obtain parts from www.kohlerplus.com

$2103.99

$

Usually ships in 2-5 days

0

Kohler 24 522 252

Short Block

Note: Not illustrated

$2103.99

$

Usually ships in 2-5 days

0

Kohler 24 782 27

Miniblock ASM

Note: Not illustrated

$1198.99

$

Usually ships in 2-5 days

0

Kohler 24 782 27

Miniblock ASM

Note: Obtain parts from www.kohlerplus.com

$1198.99

$

Usually ships in 2-5 days

0

Kohler 24 755 107-S

Gasket Set

Note: Obtain parts from www.kohlerplus.com

$140.99

$

In Stock, only 2 left!

0

Kohler 24 755 107-S

Gasket Set

Note: Not illustrated

$140.99

$

In Stock, only 2 left!

0
