74251 (Z 587 L) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) ENGINE, CLUTCH, AIR CLEANER AND MUFFLER ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

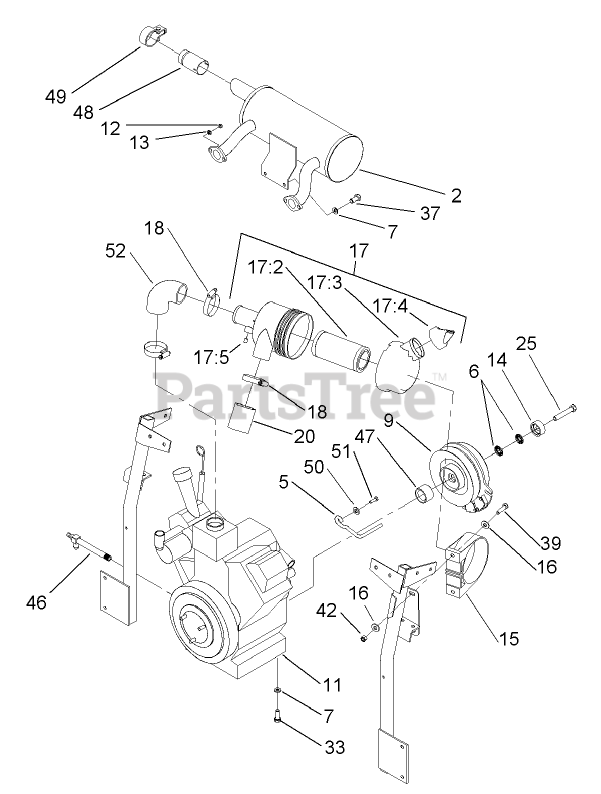

ENGINE, CLUTCH, AIR CLEANER AND MUFFLER ASSEMBLY Parts Diagram

  • Title

2

Toro 103-2759

MUFFLER

$314.99

$

Usually ships in 3-6 days

0

5

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

9

Toro 103-2453

Clutch
(Superseded to 103-6589)

$512.99

$

Usually ships in 3-6 days

0

11

Engine-Kawasaki, Fd750d-As03

Note: Not serviced separately

$

$

Not available

12

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 4 left!

0

13

Toro 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

14

Toro 103-0152

KEEPER-CLUTCH

$12.99

$

In Stock, only 3 left!

0

15

Toro 95-5806

BRACKET-MOUNTING

$28.99

$

Usually ships in 3-6 days

0

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 95-5805

AIR CLEANER ASM

$161.99

$

In Stock, only 1 left!

0

17:2

Toro 93-2195

FILTER
(Superseded to 108-3811)

$23.99

$

In Stock, Qty 20+

0

17:3

Toro 94-3652

COVER ASM

$96.99

$

In Stock, only 4 left!

0

17:4

Toro 94-1414

VALVE-VACUATOR

$

$

Currently unavailable

17:5

Toro 285-17

PLUG-PIPE

$2.99

$

Usually ships in 3-6 days

0

18

Toro 1-643009

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

20

Toro 1-643084

HOSE-INLET, AIR

$23.99

$

Usually ships in 3-6 days

0

25

Toro 48-7570

SCREW-HH

$9.49

$

In Stock, only 1 left!

0

33

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

37

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

42

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

46

Toro 103-3068

Valve-Drain, Oil

$108.99

$

Usually ships in 3-6 days

0

47

Toro 103-0114

SPACER-CLUTCH

$33.99

$

Usually ships in 3-6 days

0

48

Toro 103-1511

ARRESTOR-SPARK

$

$

Not available

49

Toro 103-1512

CLAMP-MUFFLER

$28.99

$

Usually ships in 3-6 days

0

50

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Toro 48-7630

SCREW
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 11

0

52

Toro 1-643083

HOSE-AIRCLEANER

$72.99

$

Usually ships in 3-6 days

0
