74251 (Z 587 L) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) FUEL TANK ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

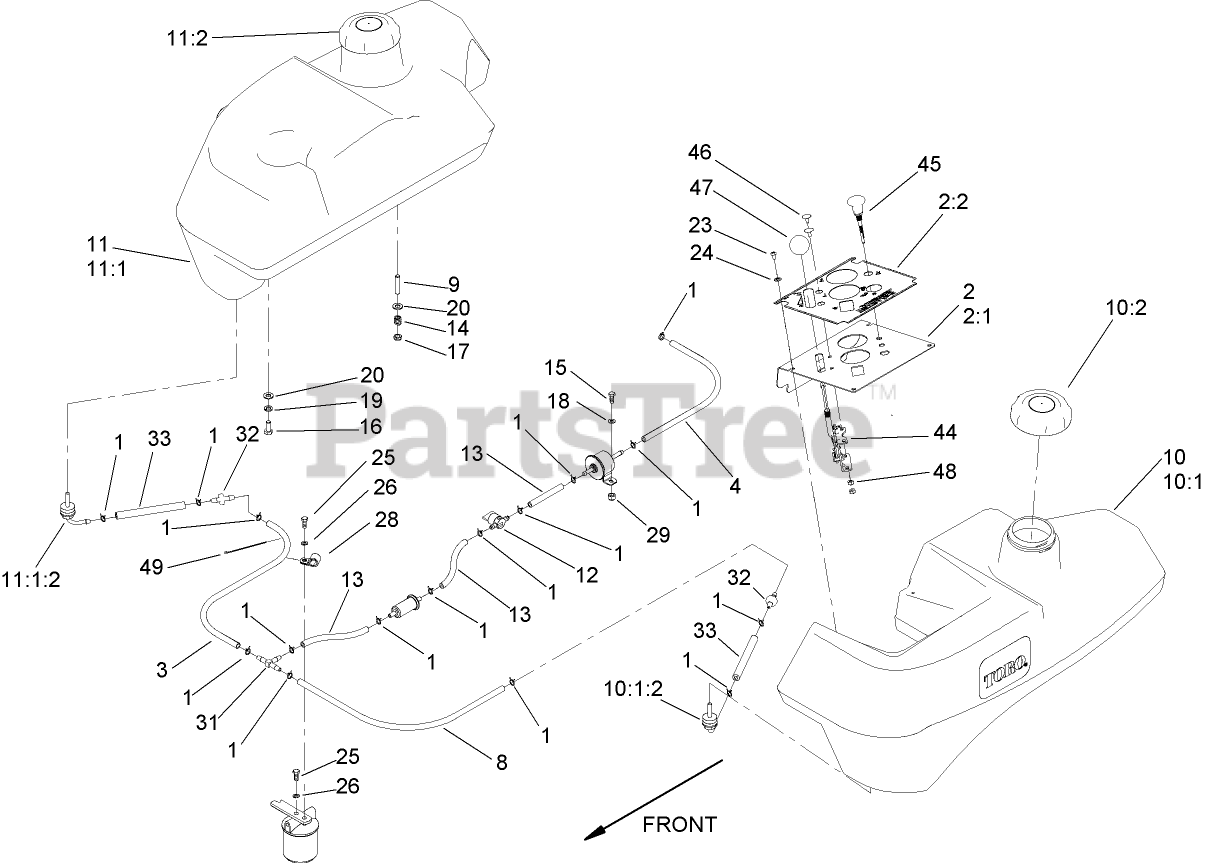

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Toro 110-9887

CONTROL PANEL ASM

$

$

Not available

2:1

Toro 110-3871-03

PANEL-CONTROL

$

$

Not available

2:2

Toro 110-5722

DECAL-PANEL, CONTROL (LC)

$

$

Not available

3

Toro 109-0302

HOSE-FUEL

$13.99

$

In Stock, only 2 left!

0

4

Toro 110-4170

HOSE-FUEL

$

$

Not available

8

Toro 110-1876

HOSE-FUEL

$13.99

$

In Stock, only 2 left!

0

9

Toro 1-633023

STUD

$6.99

$

In Stock, only 2 left!

0

10

Toro 105-3644

LH FUEL TANK KIT

$955.99

$

Usually ships in 3-6 days

0

10:1

TANK-FUEL, LH

Note: Not serviced separately

$

$

Not available

10:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$38.99

$

In Stock, only 4 left!

0

10:2

Toro 109-0346

CAP-FUEL, GAS

$22.99

$

In Stock, Qty 7

0

11

Toro 105-3643

RH FUEL TANK KIT

$955.99

$

Usually ships in 3-6 days

0

11:1

TANK-FUEL, RH

Note: Not serviced separately

$

$

Not available

11:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$38.99

$

In Stock, only 4 left!

0

11:2

Toro 109-0346

CAP-FUEL, GAS

$22.99

$

In Stock, Qty 7

0

12

Toro 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

0

13

Toro 109-0660

HOSE-FUEL

$4.49

$

In Stock, only 2 left!

0

14

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 12

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3251-1

SCREW-PPH

$11.99

$

In Stock, Qty 6

0

24

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

28

Toro 1-513762

CLIP-LOOM

$8.49

$

In Stock, only 1 left!

0

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

32

Toro 99-5000

VALVE-CHECK, FUEL

$9.99

$

In Stock, Qty 6

0

33

Toro 109-0678

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

44

Toro 110-5717

CABLE-THROTTLE

$96.99

$

In Stock, only 1 left!

0

45

Toro 110-5720

CONTROL-CHOKE, PUSH / PULL

$72.99

$

In Stock, Qty 6

0

46

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

47

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 4 left!

0

48

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0
