74252 (Z 587 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) FUEL TANK ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

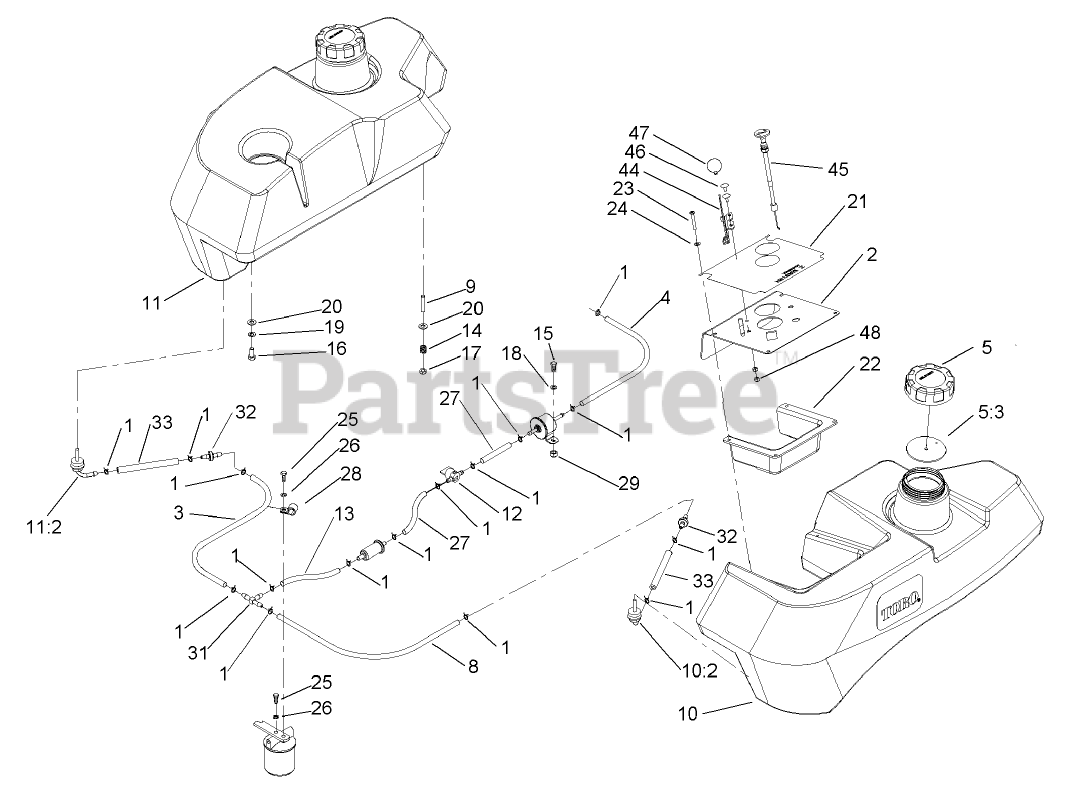

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

2

Toro 106-7475-03

Panel-Control
(Superseded to 110-3871-03)

$45.99

$

Usually ships in 3-6 days

0

3

Toro 1-543526

HOSE-FUEL
(Superseded to 109-0302)

$12.99

$

In Stock, Qty 9

0

4

Toro 103-1335

Hose-Fuel

$

$

Not available

5

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 8

0

5:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 4 left!

0

8

Toro 80-7360

HOSE-FUEL
(Superseded to 110-1876)

$12.99

$

In Stock, only 4 left!

0

9

Toro 1-633023

STUD

$6.49

$

In Stock, only 3 left!

0

10

Toro 106-9980

LH Fuel Tank ASM
(Superseded to 105-3644)

$771.99

$

Usually ships in 3-6 days

0

10:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, Qty 11

0

11

Toro 106-9979

RH Fuel Tank ASM
(Superseded to 105-3643)

$771.99

$

Usually ships in 3-6 days

0

11:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, Qty 11

0

12

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 16

0

13

Toro 47-2965

HOSE-FUEL

$

$

Not available

14

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 9

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 18

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 106-9968

Decal-Panel, Control

$84.99

$

Usually ships in 3-6 days

0

22

Toro 99-4940

SHIELD-PANEL, CONTROL

$83.99

$

Usually ships in 3-6 days

0

23

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 6

0

26

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 9

0

27

Toro 47-2965

HOSE-FUEL

$

$

Not available

28

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 3 left!

0

32

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, Qty 11

0

33

Toro 99-7190

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

44

Toro 1-633696

THROTTLE CABLE ASM

$59.99

$

In Stock, Qty 16

0

45

Toro 106-9962

Control-Choke, Push / Pull

$75.99

$

In Stock, only 1 left!

0

46

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

47

Toro 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 20+

0

48

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: Not illustrated

$0.99

$

In Stock, Qty 8
