74255 (Z 588 E) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) Oil Pan and Lubrication Assembly Kohler CH745-0007 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

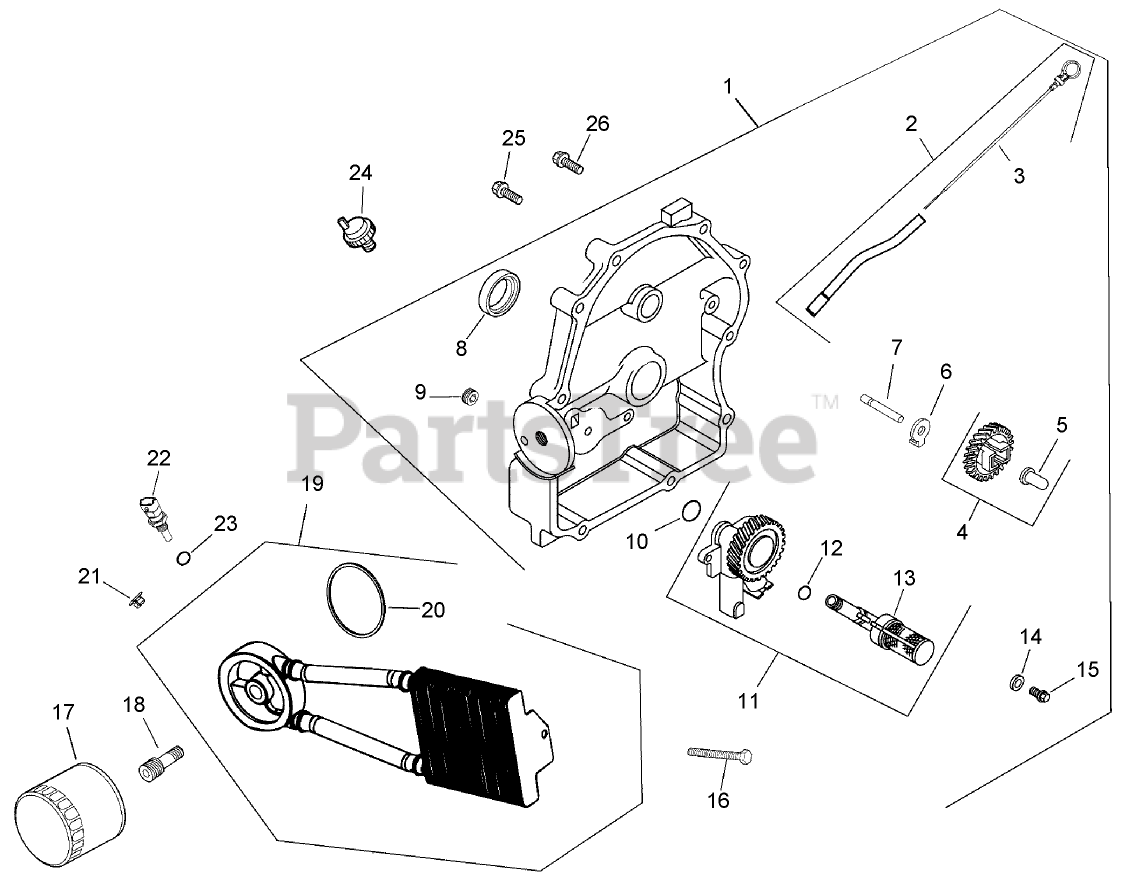

Oil Pan and Lubrication Assembly Kohler CH745-0007 Parts Diagram

  • Title

1

Toro 24 009 83-S

Kit-Plate, Closure (Incl. Ref.# 2-13)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 24 755 121-S

Kit-Dipstick and Tube (Incl. Ref. # 3)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 24 038 10-S

Dipstick

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 24 043 12-S

Kit-Governor Gear Asm (Incl. Ref. #7)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 24 448 02-S

TAB-LOCKING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 52 032 08-S

SEAL-OIL (P-T-O END)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 24 153 08-S

O-Ring

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 24 393 37-S

Pump assembly, oil (Includes 3, 4) for SN 3229000001 and later

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro 24 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 24 381 04-S

TUBE-PICK UP, OIL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

14

Toro M-631005-S

WASHER-FLAT (6 MM)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

15

Toro M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

16

Toro 25 086 49-S

SCREW-TAPPING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

17

Toro 12 050 01-S

See Supercession: 98020
(Superseded to 98020)

Note: Obtain parts from www.kohlerplus.com

$18.99

$

In Stock, Qty 20+

0

18

Toro 24 136 05-S

NIPPLE-FILTER, OIL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

19

Toro 24 594 31-S

Cooler, oil (Includes 20)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

20

Toro 24 153 21-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

21

Toro 24 100 01-S

Nut-Plastic

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

22

Toro 24 418 12-S

Sensor-Temperature

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 153 04-S

O Ring-Oil Pick-up

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

24

Toro 24 099 03-S

SWITCH-PRESSURE, OIL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

25

Toro 24 086 16-S

Screw-HF (M8x1.25x45)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

26

Toro 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 24 113 25-S

DECAL-COOLER, OIL

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 24 113 25-S

DECAL-COOLER, OIL

Note: Not illustrated

$

$

Currently unavailable
