74255 (Z 588 E) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000109 - 260999999) (2006) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

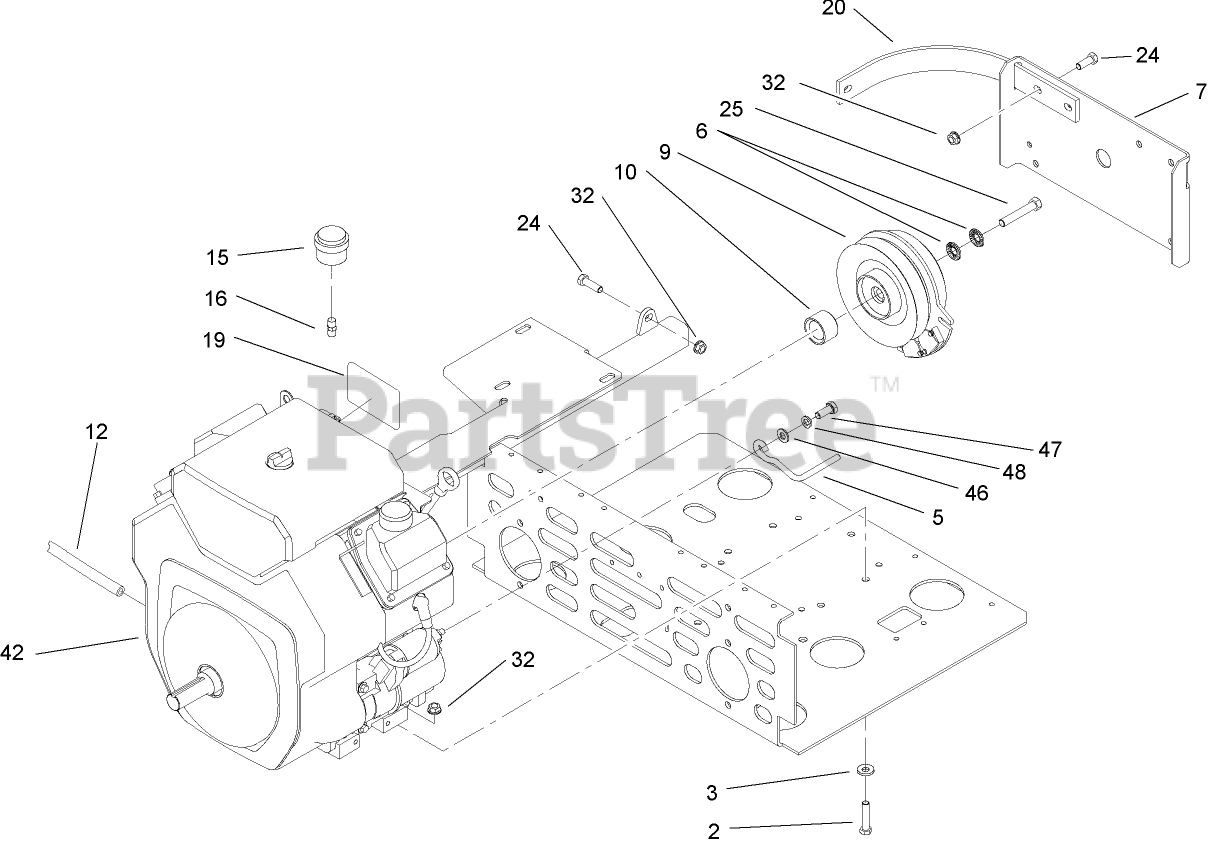

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 52-4780

ROD-BELT

$14.99

$

In Stock, Qty 6

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Toro 1-633615-03

GUARD-CLUTCH

$80.99

$

Usually ships in 3-6 days

0

9

Toro 103-6579

CLUTCH
(Superseded to 116-1611)

$512.99

$

In Stock, only 1 left!

0

10

Toro 1-633179

SPACER-CLUTCH

$19.99

$

In Stock, Qty 8

0

12

Toro 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, Qty 7

0

13

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0

15

Toro 104-7755

INDICATOR-FILTER, AIR

$115.99

$

Usually ships in 3-6 days

0

16

Toro 94-1416

ADAPTER-INDICATOR

$13.99

$

Usually ships in 3-6 days

0

19

Toro 103-3270

DECAL

$

$

Not available

20

Toro 103-7454-03

STRAP-GUARD

$46.99

$

Usually ships in 3-6 days

0

24

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

42

ENGINE-KOHLER, CH745-0012

Note: Not serviced separately

$

$

Not available

46

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

47

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

48

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
