74263 CP (Z 560) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) CRANKCASE ASSEMBLY KOHLER CH750-0010 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

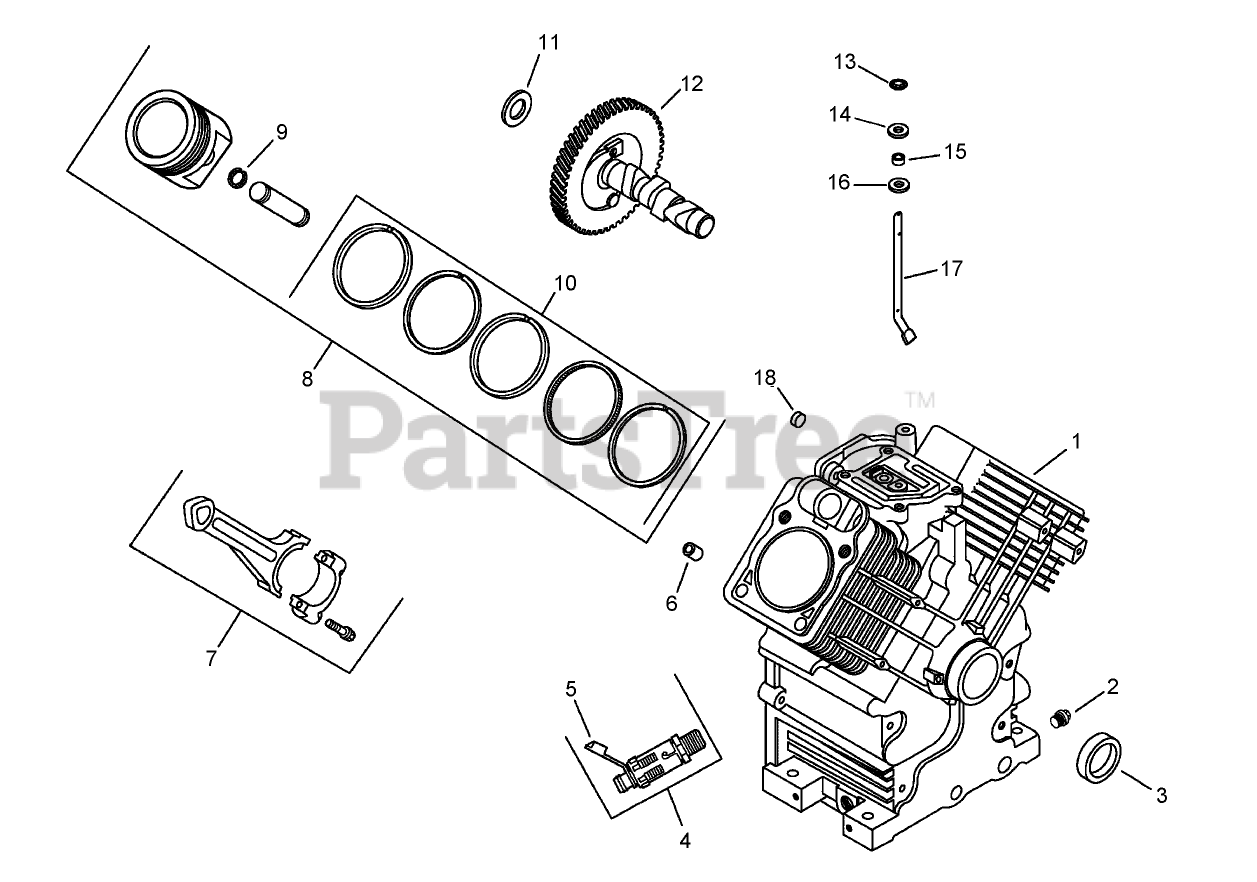

CRANKCASE ASSEMBLY KOHLER CH750-0010 Parts Diagram

  • Title

1

Crankcase

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

Crankcase

Note: Not serviced separately

$

$

Not available

2

Kohler 52 139 02-S

PLUG-PIPE HEAD, 3/8

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, only 2 left!

0

3

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, Qty 20+

0

4

Kohler 25 755 14-S

Valve-Drain, Oil (Includes 5)

Note: Obtain parts from www.kohlerplus.com

$30.99

$

In Stock, only 4 left!

0

5

Kohler 25 173 14-S

CAP-VALVE, OIL DRAIN

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

6

Kohler 24 380 16-S

PIN-LOCATING

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

7

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

Note: Obtain parts from www.kohlerplus.com

$75.99

$

In Stock, Qty 20+

0

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

Note: Obtain parts from www.kohlerplus.com

$75.99

$

In Stock, only 1 left!

0

8

Kohler 66 874 01-S

Piston w/Ring Set (STD) (Includes 9,10)
(Superseded to 25 874 14-S)

Note: Obtain parts from www.kohlerplus.com

$221.99

$

In Stock, Qty 9

0

Kohler 66 874 02-S

Piston w/Ring Set (.08)
(Superseded to 25 874 10-S)

Note: Obtain parts from www.kohlerplus.com

$262.99

$

Usually ships in 2-5 days

0

Kohler 66 874 03-S

Piston w/Ring Set (.25)
(Superseded to 25 874 11-S)

Note: Obtain parts from www.kohlerplus.com

$321.99

$

In Stock, only 1 left!

0

Kohler 66 874 04-S

Piston w/Ring Set (.50)
(Superseded to 25 874 17-S)

Note: Obtain parts from www.kohlerplus.com

$332.99

$

Usually ships in 2-5 days

0

9

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 14

0

10

Kohler 24 108 05-S

Ring Set (.25)
(Superseded to 24 108 15-S)

Note: Obtain parts from www.kohlerplus.com

$113.99

$

In Stock, only 1 left!

0

Kohler 24 108 06-S

Ring Set (.25)
(Superseded to 24 108 16-S)

Note: Obtain parts from www.kohlerplus.com

$113.99

$

In Stock, only 2 left!

0

Kohler 24 108 07-S

Ring Set (.50)
(Superseded to 24 108 17-S)

Note: Obtain parts from www.kohlerplus.com

$89.99

$

Usually ships in 2-5 days

0

11

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 11

0

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 24 012 18-S

CAMSHAFT KIT

Note: Obtain parts from www.kohlerplus.com

$137.99

$

Usually ships in 2-5 days

0

13

Kohler 24 018 09-S

RETAINER-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 19

0

14

Kohler M-931010-S

WASHER-FLAT (9MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

15

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 1 left!

0

16

Kohler 24 468 15-S

WASHER-FLAT (11/32)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

17

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Obtain parts from www.kohlerplus.com

$52.99

$

Usually ships in 2-5 days

0

18

Kohler 52 139 09-S

PLUG-CUP

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 8

0
