74264 TE (Z 593-D) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) THROTTLE, CONTROL PANEL AND FUEL TANK ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

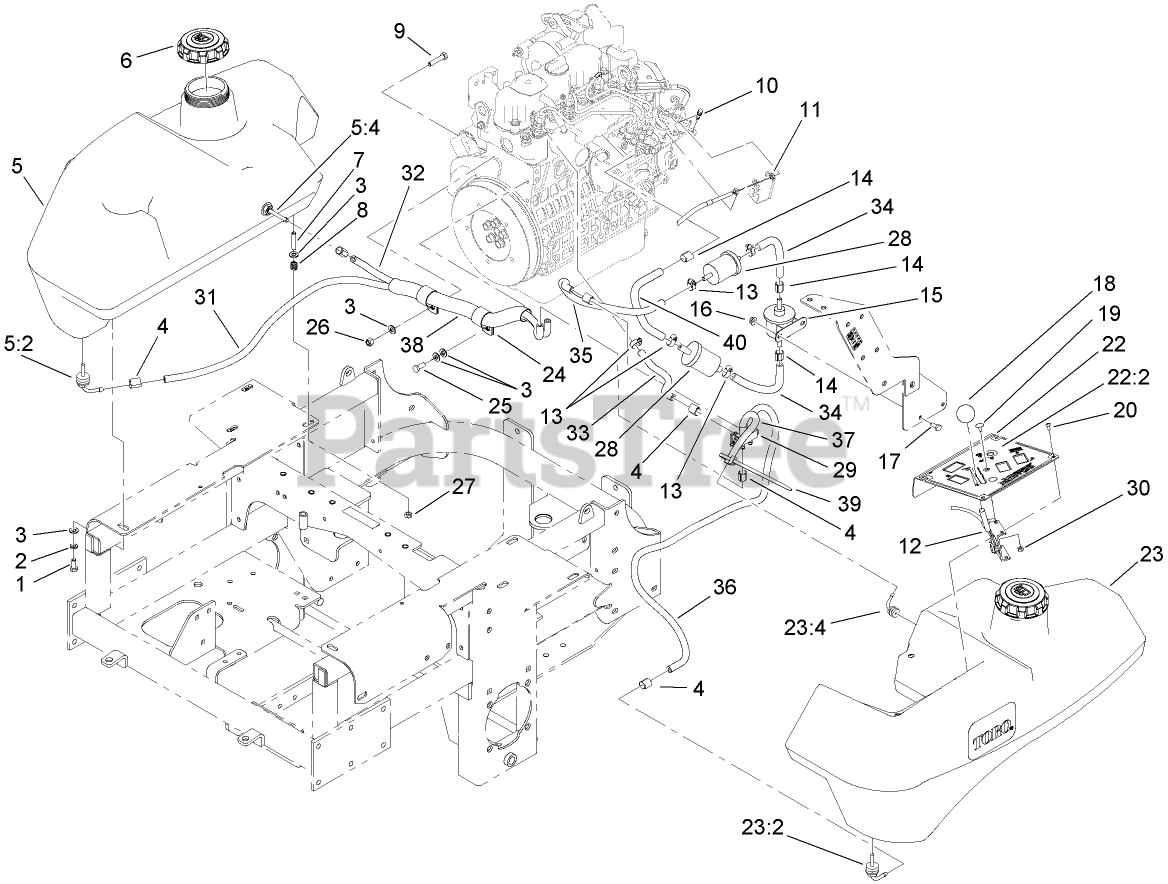

THROTTLE, CONTROL PANEL AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

4

Toro 1-643293

CLAMP-HOSE, FUEL

$6.99

$

In Stock, Qty 6

0

5

Toro 108-5361

RH FUEL TANK ASM
(Superseded to 114-8221)

$772.99

$

Usually ships in 3-6 days

0

5:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$39.99

$

In Stock, only 3 left!

0

5:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$44.99

$

In Stock, only 1 left!

0

6

Toro 110-0897

CAP-FUEL, DIESEL
(Superseded to 114-5062)

$36.99

$

Usually ships in 3-6 days

0

7

Toro 1-633023

STUD

$6.99

$

In Stock, only 2 left!

0

8

Toro 1-633349

SPRING-TANK, FUEL

$5.99

$

In Stock, Qty 6

0

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

10

Toro 108-5928

SWIVEL-STOP, CABLE

$17.99

$

Usually ships in 3-6 days

0

11

Toro 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

12

Toro 108-5927

CABLE-CONTROL, THROTTLE

$110.99

$

Usually ships in 3-6 days

0

13

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

14

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

15

Toro 107-0122

PUMP-FUEL, ELECTRIC
(Superseded to 144-4020)

$224.99

$

In Stock, only 2 left!

0

16

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 5

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 2 left!

0

19

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

20

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

22

Toro 112-2388

CONTROL PANEL ASM

$

$

Not available

22:2

Toro 112-2389

DECAL-PANEL, CONTROL

$

$

Not available

23

Toro 108-5362

LH FUEL TANK ASM
(Superseded to 114-8222)

$772.99

$

Usually ships in 3-6 days

0

23:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$39.99

$

In Stock, only 3 left!

0

23:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$44.99

$

In Stock, only 1 left!

0

24

Toro 1-643312

CLIP-LOOM

$6.99

$

Usually ships in 3-6 days

0

25

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 7

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

28

Toro 98-7612

FILTER-FUEL

$8.49

$

In Stock, only 1 left!

0

29

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$217.99

$

In Stock, only 4 left!

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

31

Toro 108-5376

HOSE-FUEL

$46.99

$

In Stock, only 1 left!

0

32

Toro 109-0301

HOSE-FUEL

$14.99

$

In Stock, only 2 left!

0

33

Toro 110-1876

HOSE-FUEL

$13.99

$

In Stock, only 1 left!

0

34

Toro 112-2386

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

35

Toro 109-0282

HOSE-FUEL

$8.49

$

Usually ships in 3-6 days

0

36

Toro 109-0275

HOSE-FUEL

$14.99

$

In Stock, only 2 left!

0

37

Toro 109-0297

HOSE-FUEL

$8.49

$

Usually ships in 3-6 days

0

38

Toro 108-5377

SLEEVE-FABRIC

$18.99

$

Usually ships in 3-6 days

0

39

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 9

0

40

Toro 110-4170

HOSE-FUEL

$

$

Not available
