74264 (Z 593-D) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) COOLING SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

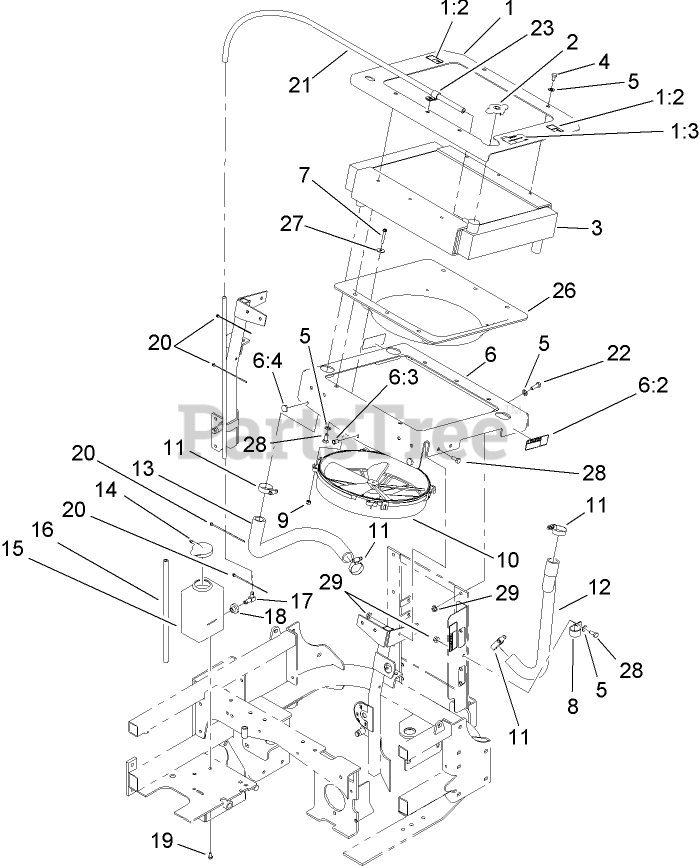

COOLING SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 108-5937

TOP RADIATOR PLATE ASM

$

$

Not available

1:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

1:3

Toro 110-3842

DECAL-ANTIFREEZE

$9.99

$

Usually ships in 3-6 days

0

2

Toro 1-643161

CAP-RADIATOR

$91.99

$

In Stock, only 3 left!

0

3

Toro 107-9932

RADIATOR

$1714.99

$

Usually ships in 3-6 days

0

4

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 108-5938

BOTTOM RADIATOR PLATE ASM

$

$

Not available

6:2

Toro 1-643253

DECAL-FAN, RADIATOR

$5.49

$

Usually ships in 3-6 days

0

6:3

Toro 32148-6

INSERT-NUT

$2.49

$

Usually ships in 3-6 days

0

6:4

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

7

Toro 108-5988

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

0

8

Toro 1-643312

CLIP-LOOM

$6.99

$

Usually ships in 3-6 days

0

9

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-633831

FAN

$672.99

$

Usually ships in 3-6 days

0

11

Toro 1-633989

CLAMP-HOSE
(Superseded to 2412-34)

$2.49

$

In Stock, only 3 left!

0

12

Toro 108-5905

HOSE-INLET, ENGINE
(Superseded to 108-5372)

$95.99

$

Usually ships in 3-6 days

0

13

Toro 108-5904

HOSE-OUTLET, ENGINE

$115.99

$

Usually ships in 3-6 days

0

14

Toro 1-643164

CAP-TANK, OVERFLOW

$21.99

$

In Stock, only 1 left!

0

15

Toro 1-643163

TANK-OVERFLOW

$106.99

$

Usually ships in 3-6 days

0

16

Toro 1-603954

HOSE-LINE, FUEL

$10.99

$

Usually ships in 3-6 days

0

17

Toro 1-643259

FITTING-ELBOW
(Superseded to 46-6550)

$44.99

$

Usually ships in 3-6 days

0

18

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

19

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

20

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 103-1428

HOSE-OVERFLOW

$30.99

$

Usually ships in 3-6 days

0

22

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

26

Toro 108-5971

SHROUD-COOLING, ENGINE

$218.99

$

Usually ships in 3-6 days

0

27

Toro 3256-67

WASHER

$0.99

$

In Stock, Qty 8

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
