74267 CP (Z 580-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) HYDRAULIC TANK, MOTOR AND PUMP ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

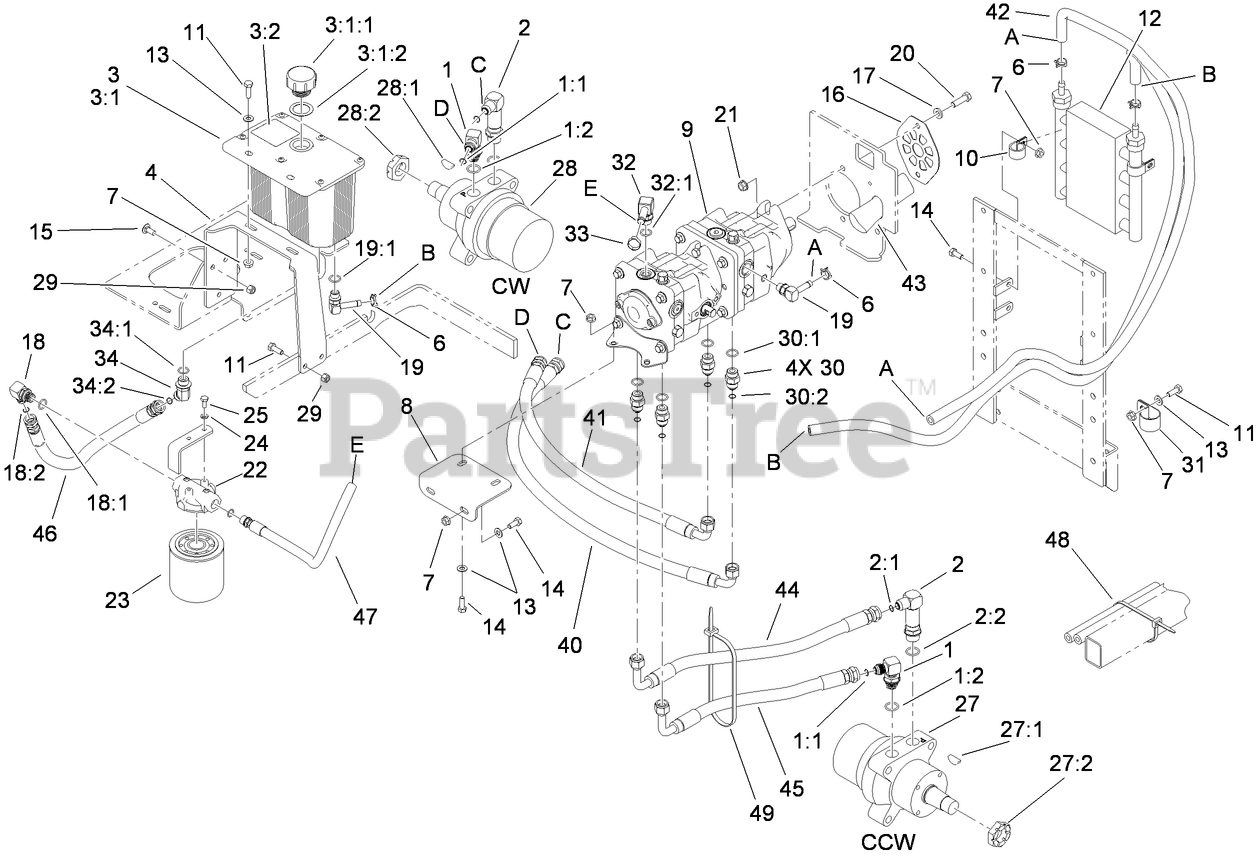

HYDRAULIC TANK, MOTOR AND PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633605

FITTING-HYD, 90 DEG

$53.99

$

Usually ships in 3-6 days

0

1:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

1:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

2

Toro 108-5323

FITTING-ELBOW-90

$108.99

$

Usually ships in 3-6 days

0

2:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

2:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

3

Toro 108-5315

HYDRAULIC TANK ASM

$

$

Not available

3:1

TANK-HYDRAULIC

Note: Not serviced separately

$

$

Not available

3:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$36.99

$

In Stock, only 4 left!

0

3:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

3:2

Toro 1-523552

DECAL-TANK, HYD

$2.49

$

In Stock, Qty 14

0

4

Toro 108-5352-03

BRACKET-TANK, HYDRAULIC

$101.99

$

Usually ships in 3-6 days

0

6

Toro 110-6242

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 107-3462-03

BRACKET-PUMP, FRONT

$29.99

$

Usually ships in 3-6 days

0

9

Toro 107-9885

TANDEM PUMP ASM

$3879.99

$

Usually ships in 3-6 days

0

10

Toro 110-0824

R-CLAMP

$5.49

$

Usually ships in 3-6 days

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 114-8168

COOLER-OIL, HYDRO

$377.99

$

Usually ships in 3-6 days

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 108-5367-03

PLATE-SHIELD, PUMP

$26.99

$

Usually ships in 3-6 days

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 103-2153

FITTING-90 DEG

$53.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

18:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

19

Toro 109-6449

FITTING-ELBOW, 90

$36.99

$

Usually ships in 3-6 days

0

19:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 86-9080

HEAD-FILTER

$119.99

$

In Stock, only 1 left!

0

23

Toro 67-8110

CARTRIDGE-FILTER, OIL

$28.99

$

In Stock, Qty 9

0

24

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 112-8357

HYD MOTOR ASM (CCW)

$1544.99

$

Usually ships in 3-6 days

0

27:1

Toro 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 14

0

27:2

Toro 1-809036

NUT-HH

$39.99

$

In Stock, only 1 left!

0

27:3

Toro 109-5966

WHEEL MOTOR SEAL KIT
(Superseded to 126-7279)

Note: Not illustrated

$389.99

$

Usually ships in 3-6 days

0

28

Toro 112-8358

HYD MOTOR ASM (CW)

$1461.99

$

Usually ships in 3-6 days

0

28:1

Toro 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 14

0

28:2

Toro 1-809036

NUT-HH

$39.99

$

In Stock, only 1 left!

0

28:3

Toro 109-5966

WHEEL MOTOR SEAL KIT
(Superseded to 126-7279)

Note: Not illustrated

$389.99

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, Qty 7

0

30:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

30:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

31

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

32

Toro 108-5316

FITTING-ELBOW, 90 DEG

$52.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

33

Toro 103-2104

CLAMP-HOSE

$

$

Not available

34

Toro 1-523221

FITTING-HYD, 45 DEG

$53.99

$

Usually ships in 3-6 days

0

34:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

34:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

40

Toro 107-3495

HYDRAULIC HOSE ASM

$157.99

$

Usually ships in 3-6 days

0

41

Toro 107-3490

HYDRAULIC HOSE ASM

$150.99

$

Usually ships in 3-6 days

0

42

Toro 114-8169

HOSE-HYDRAULIC

$70.99

$

Usually ships in 3-6 days

0

43

Toro 114-8201

SLEEVE-FABRIC

$27.99

$

Usually ships in 3-6 days

0

44

Toro 108-5318

HYDRAULIC HOSE ASM

$145.99

$

In Stock, only 1 left!

0

45

Toro 107-3491

HYDRAULIC HOSE ASM

$136.99

$

Usually ships in 3-6 days

0

46

Toro 110-3854

HYDRAULIC HOSE ASM

$108.99

$

Usually ships in 3-6 days

0

47

Toro 108-5374

HYDRAULIC HOSE ASM

$52.99

$

Usually ships in 3-6 days

0

48

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 10

0

49

Toro 1-809066

CABLE TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days
