74268 (Z 597-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY NO. 106-7437 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

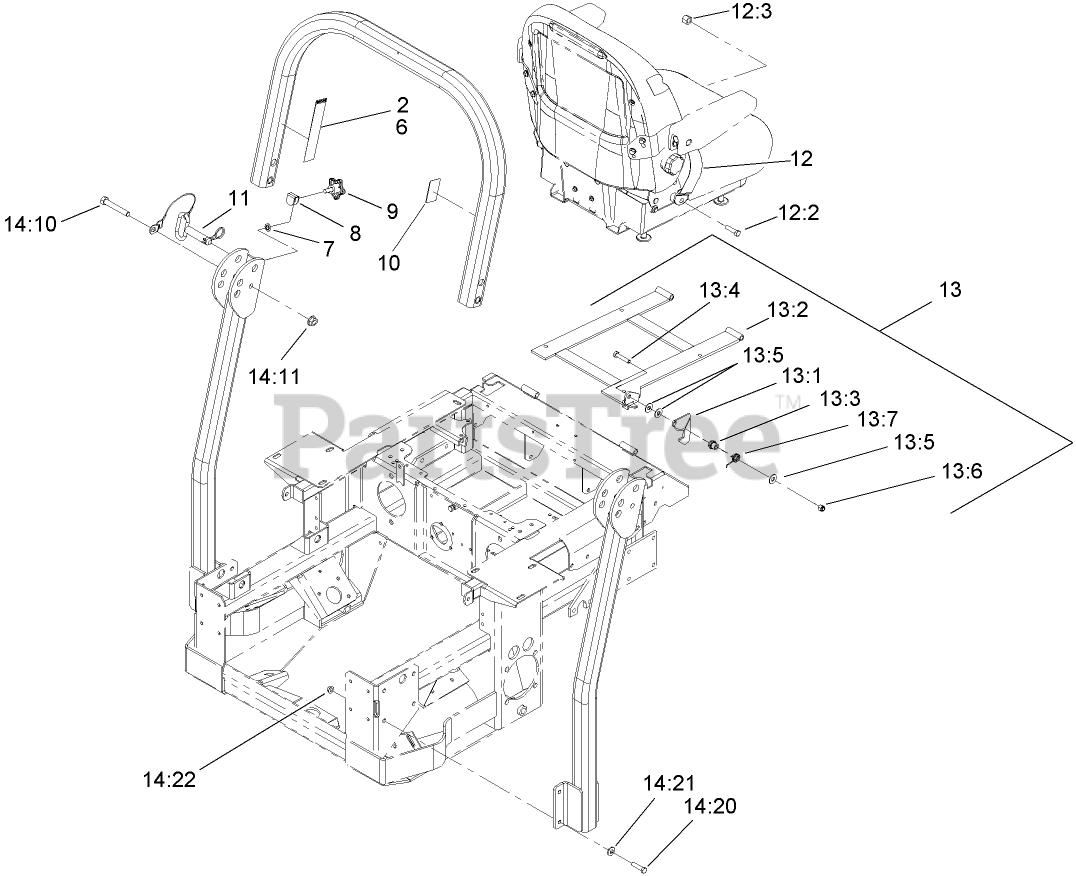

ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY NO. 106-7437 Parts Diagram

  • Title

2

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$10.99

$

Usually ships in 3-6 days

0

6

Toro 107-3069

DECAL-WARNING

$23.99

$

Usually ships in 3-6 days

0

7

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

8

Toro 107-3124

CLIP

$5.49

$

In Stock, only 2 left!

0

9

Toro 106-0887

KNOB

$8.99

$

In Stock, only 1 left!

0

10

Toro 107-2101

DECAL-ROPS

$

$

Not available

11

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

Usually ships in 3-6 days

0

12

Toro 103-4469

SEATBELT KIT

$177.99

$

Usually ships in 3-6 days

0

12:2

Toro 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12:3

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

13

Toro 103-5600

SEAT FRAME ASM

$419.99

$

Usually ships in 3-6 days

0

13:1

Toro 103-5520

CATCH-LATCH, SINGLE

$181.99

$

Usually ships in 3-6 days

0

13:3

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

13:4

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13:5

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13:6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13:7

Toro 103-5519

SPRING-TORSION, LATCH

$8.99

$

Usually ships in 3-6 days

0

14:10

Toro 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

14:11

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

14:20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14:21

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14:22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

BAG-BOLT

Note: Not serviced separately

$

$

Not available
