74268 (Z 597-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) DECK ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

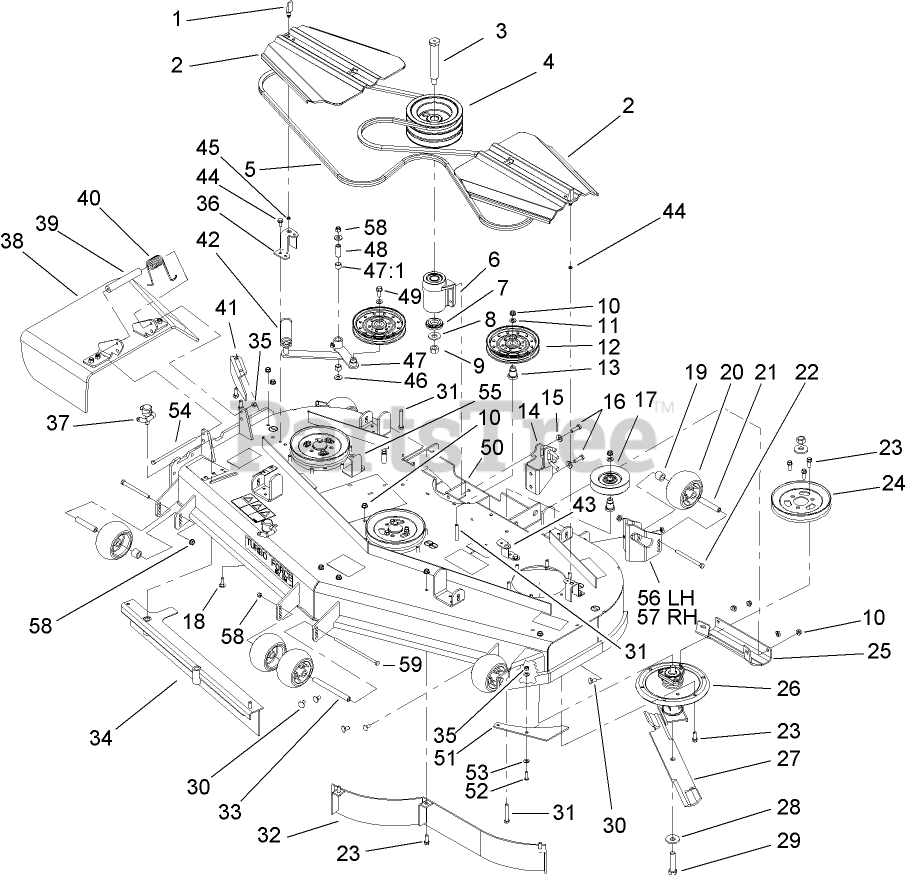

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 74-5950

LATCH-SWELL

$25.99

$

In Stock, Qty 20+

0

2

Toro 107-8536

COVER-BELT

$23.99

$

In Stock, Qty 6

0

3

Toro 1-643393

JACKSHAFT

$35.99

$

In Stock, Qty 20+

0

4

Toro 103-5381

SHEAVE-JACKSHAFT

$707.99

$

Usually ships in 3-6 days

0

5

Toro 107-7667

BELT-V

$76.99

$

In Stock, only 2 left!

0

6

Toro 103-2544

JACKSHAFT ASM
(Superseded to 114-0250)

$364.99

$

Usually ships in 3-6 days

0

7

Toro 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 4 left!

0

8

Toro 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

9

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

10

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$45.99

$

In Stock, Qty 20+

0

13

Toro 106-3214

MOUNT-PULLEY

$13.99

$

In Stock, Qty 20+

0

14

Toro 103-3445-01

GUARD-JACKSHAFT

$

$

Not available

15

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

16

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

17

Toro 1-603805

PULLEY-IDLER

$58.99

$

In Stock, Qty 20+

0

18

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

19

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

20

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

21

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

22

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

23

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

24

Toro 105-7735

Pulley

$46.99

$

In Stock, only 4 left!

0

25

Toro 105-8792-01

Plate-Skid

$88.99

$

In Stock, only 1 left!

0

26

Toro 106-3217

Spindle ASM
(Superseded to 119-8599)

$653.99

$

In Stock, only 4 left!

0

27

Toro 105-7718-03

BLADE-HI FLOW

$26.99

$

In Stock, Qty 20+

0

28

Toro 103-0865

Washer-Blade Bolt, Heavy

$6.49

$

In Stock, Qty 20+

0

29

Toro 103-0862

Screw-Cap

$6.49

$

In Stock, Qty 20+

0

30

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

31

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 105-7657-01

Baffle

$178.99

$

Usually ships in 3-6 days

0

33

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

34

Toro 105-7669-01

BAFFLE

$314.99

$

Usually ships in 3-6 days

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$13.99

$

In Stock, only 3 left!

0

37

Toro 107-1664

LEVER ASM

$79.99

$

Usually ships in 3-6 days

0

38

Toro 108-2792

RUBBER DEFLECTOR ASM

$241.99

$

In Stock, Qty 5

0

39

Toro 105-4622

SPACER

$11.99

$

In Stock, only 4 left!

0

40

Toro 108-4052

SPRING-TORSION

$26.99

$

In Stock, Qty 5

0

41

Toro 106-3216-01

BAFFLE-DISCHARGE

$26.99

$

In Stock, only 2 left!

0

42

Toro 105-6992

SPRING-EXTENSION

$28.99

$

Usually ships in 3-6 days

0

43

Toro 108-2177-01

BRACKET-COVER, TALL

$34.99

$

In Stock, only 2 left!

0

44

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

45

Toro 99-3058

WASHER

$3.99

$

In Stock, Qty 20+

0

46

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

47

Toro 107-9868

IDLER ARM ASM

$146.99

$

In Stock, only 1 left!

0

47:1

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

48

Toro 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

49

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

50

Toro 107-7675

DECK DECAL ASM

$

$

Not available

51

Toro 107-3137

PLATE-TURBO

$51.99

$

Usually ships in 3-6 days

0

52

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

53

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

54

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 10

0

55

Toro 108-4122-01

BRACKET-COVER
(Superseded to 119-4221-01)

$33.99

$

Usually ships in 3-6 days

0

56

Toro 106-7354-01

MOUNT-WHEEL, LH

$113.99

$

In Stock, only 1 left!

0

57

Toro 106-7355-01

MOUNT-WHEEL, RH

$113.99

$

Usually ships in 3-6 days

0

58

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

59

Toro 323-28

SCREW-HH

$8.49

$

In Stock, Qty 20+

0
