74269 CP (Z 590-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) CAMSHAFT ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

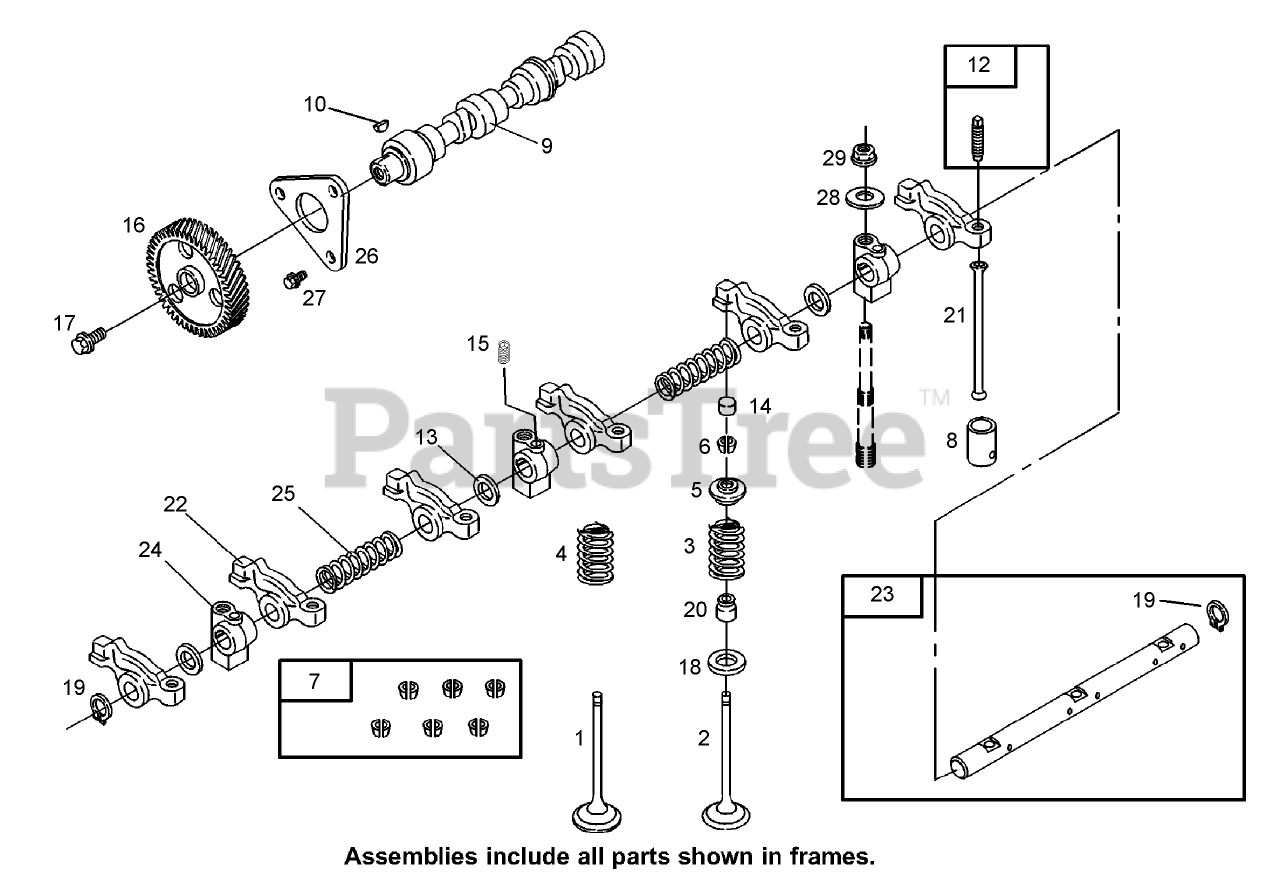

CAMSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9638

VALVE-EXHAUST

$

$

Not available

2

Toro 99-9639

VALVE-INTAKE

$

$

Not available

3

Toro 99-9640

SPRING-VALVE

$13.99

$

Usually ships in 3-6 days

0

4

Toro 99-9640

SPRING-VALVE

$13.99

$

Usually ships in 3-6 days

0

5

Toro 99-9084

RETAINER-VALVE

$20.99

$

Usually ships in 3-6 days

0

6

Toro 99-9086

KEEPER-VALVE (SET)

$

$

Not available

7

Toro 99-9087

KEEPER-VALVE (SET OF 6)
(Superseded to 99-9086)

$

$

Not available

8

Toro 99-9088

TAPPET-VALVE

$54.99

$

Usually ships in 3-6 days

0

9

Toro 99-9097

SHAFT-CAM

$

$

Not available

10

Toro 99-9675

Key-Timing
(Superseded to 99-9095)

$6.99

$

Usually ships in 3-6 days

0

12

Toro 99-9092

ADJUSTER-ARM, ROCKER

$16.99

$

Usually ships in 3-6 days

0

13

Toro 99-9093

WASHER-SPACER

$18.99

$

Usually ships in 3-6 days

0

14

Toro 99-9094

CAP-VALVE

$

$

Not available

15

Toro 99-9090

SCREW-METRIC

$21.99

$

Usually ships in 3-6 days

0

16

Toro 99-9641

GEAR-CAM

$

$

Not available

17

Toro 99-9085

SCREW-METRIC

$

$

Not available

18

Toro 99-9096

SEAT-SPRING, VALVE

$19.99

$

Usually ships in 3-6 days

0

19

Toro 99-9099

RETAINER

$19.99

$

Usually ships in 3-6 days

0

20

Toro 99-9643

SEAL-VALVE

$

$

Not available

21

Toro 99-9103

ROD-PUSH

$36.99

$

Usually ships in 3-6 days

0

22

Toro 99-9104

ARM-ROCKER

$154.99

$

Usually ships in 3-6 days

0

23

Toro 99-9106

SHAFT-ARM, ROCKER

$

$

Not available

24

Toro 99-9107

SUPPORT-ARM, ROCKER

$46.99

$

Usually ships in 3-6 days

0

25

Toro 99-9108

SPRING-SHAFT, ROCKER

$10.99

$

Usually ships in 3-6 days

0

26

Toro 99-9109

RETAINER-CAMSHAFT

$

$

Not available

27

Toro 99-9083

SCREW-HEX

$16.99

$

Usually ships in 3-6 days

0

28

Toro 99-9079

WASHER-FLAT

$16.99

$

Usually ships in 3-6 days

0

29

Toro 99-9091

NUT-HEX, METRIC

$16.99

$

Usually ships in 3-6 days

0
