74269 CP (Z 590-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) TANK AND FUEL LINE ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

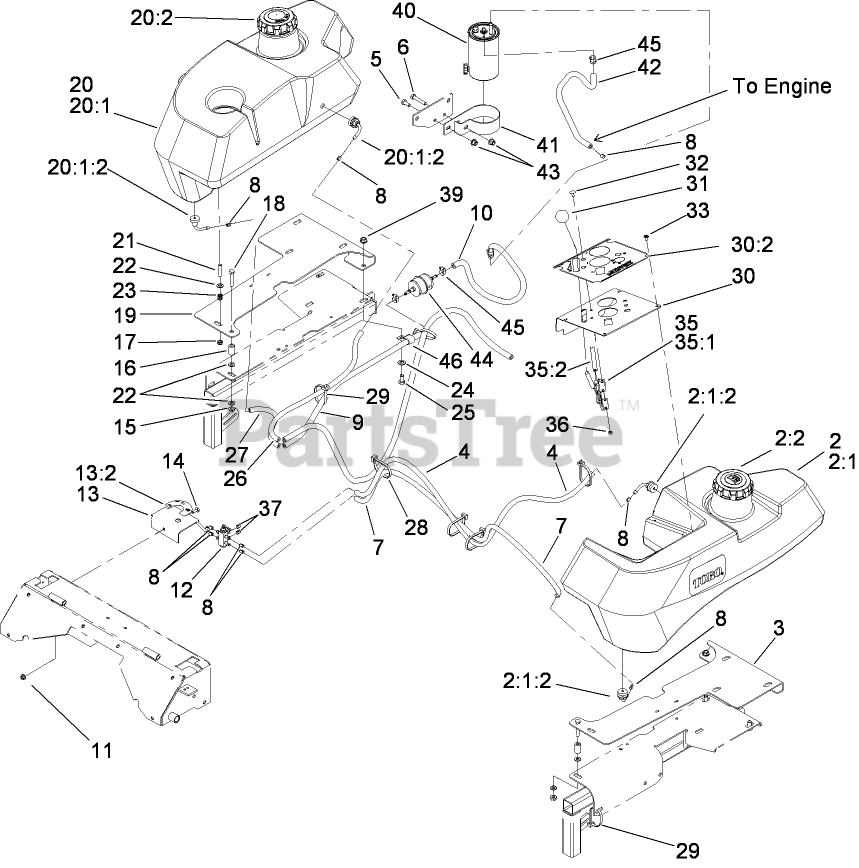

TANK AND FUEL LINE ASSEMBLY Parts Diagram

  • Title

2

Toro 115-3556

LH FUEL TANK KIT

$

$

Not available

2:1

TANK-FUEL, LH

Note: Not serviced separately

$

$

Not available

2:1:2

Toro 103-2615

Fitting-Fuel, Bulkhead

$43.99

$

In Stock, only 1 left!

0

2:2

Toro 114-8214

BIODIESEL CAP ASM

$94.99

$

Usually ships in 3-6 days

0

3

Toro 107-7672-03

BRACKET-FUEL TANK, LH

$120.99

$

Usually ships in 3-6 days

0

4

Toro 109-0273

HOSE-FUEL

$23.99

$

Usually ships in 3-6 days

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 109-0289

HOSE-FUEL

$39.99

$

Usually ships in 3-6 days

0

8

Toro 1-643293

CLAMP-HOSE, FUEL

$6.99

$

In Stock, Qty 6

0

9

Toro 114-8206

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

10

Toro 110-4113

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$214.99

$

In Stock, Qty 6

0

13

Toro 107-9878

BRACKET-VALVE, FUEL

$

$

Not available

13:2

Toro 107-2114

DECAL-VALVE, FUEL

$36.99

$

Usually ships in 3-6 days

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

16

Toro 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

17

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 107-7671-03

BRACKET-FUEL TANK, RH

$120.99

$

Usually ships in 3-6 days

0

20

Toro 115-3555

RH FUEL TANK KIT

$958.99

$

Usually ships in 3-6 days

0

20:1

TANK-FUEL, RH

Note: Not serviced separately

$

$

Not available

20:1:2

Toro 103-2615

Fitting-Fuel, Bulkhead

$43.99

$

In Stock, only 1 left!

0

20:2

Toro 114-8214

BIODIESEL CAP ASM

$94.99

$

Usually ships in 3-6 days

0

21

Toro 1-633023

STUD

$6.99

$

In Stock, only 2 left!

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 12

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

26

Toro 110-5701

HOSE-FUEL

$18.99

$

In Stock, only 2 left!

0

27

Toro 109-0294

Hose-Fuel

$6.99

$

Usually ships in 3-6 days

0

28

Toro 110-4100

HOSE-FUEL

$31.99

$

Usually ships in 3-6 days

0

29

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

30

Toro 115-3561

CONTROL PANEL ASM

$

$

Not available

30:2

Toro 115-3562

DECAL-CONTROL PANEL

$

$

Not available

31

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 4 left!

0

32

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

33

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

35

Toro 110-5729

THROTTLE CONTROL CABLE ASM

$104.99

$

In Stock, only 1 left!

0

35:1

Toro 112-2334

LEVER-THROTTLE

$86.99

$

Usually ships in 3-6 days

0

35:2

Toro 110-5730

CABLE-THROTTLE
(Superseded to 110-5729)

$104.99

$

In Stock, only 1 left!

0

36

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

39

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

40

Toro 112-9188

ELEMENT-FILTER, FUEL/WATER

$71.99

$

In Stock, Qty 20+

0

41

Toro 110-8807

BRACKET-FILTER, FUEL

$116.99

$

Usually ships in 3-6 days

0

42

Toro 114-8207

HOSE-FUEL

$

$

Not available

43

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

44

Toro 112-7836

FILTER-INLINE

$15.99

$

In Stock, Qty 19

0

45

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

46

Toro 115-3559

CLAMP-J

$

$

Not available
