74269 CP (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) COOLING PUMP DRIVE ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

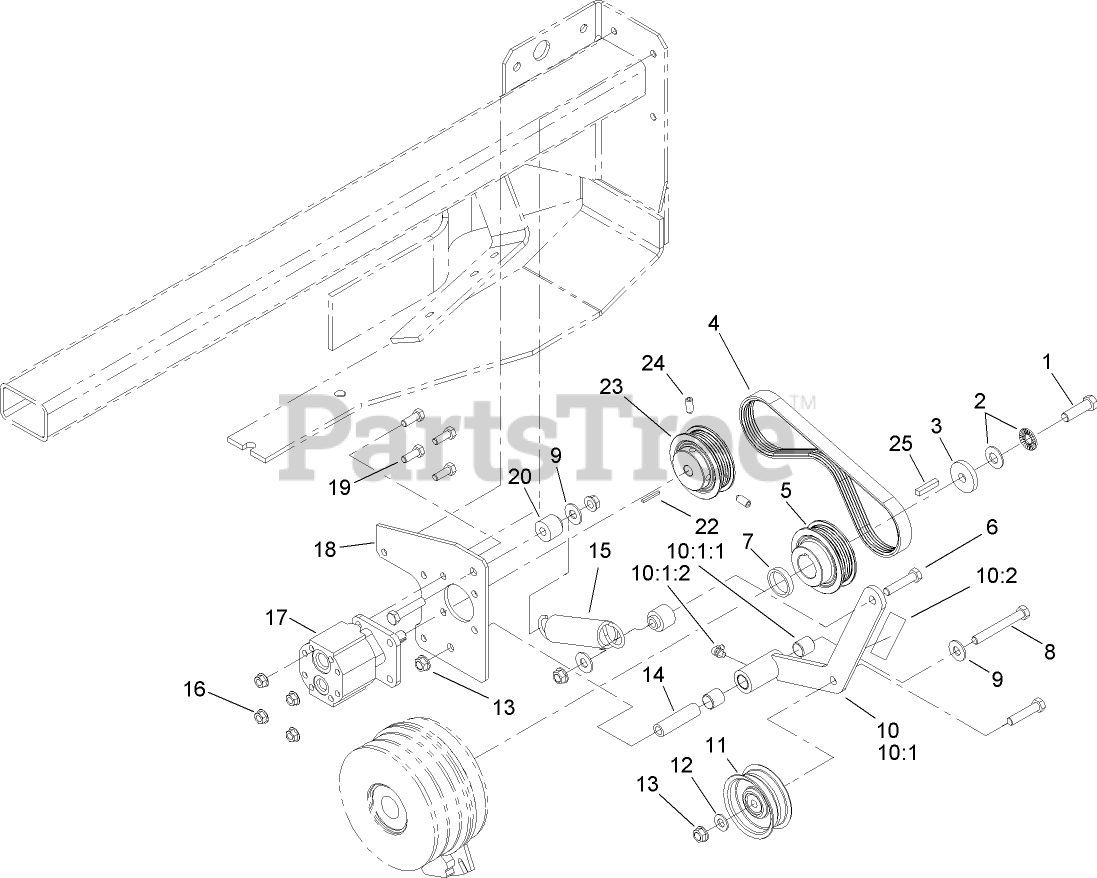

COOLING PUMP DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, Qty 9

0

2

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

3

Toro 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 20+

0

4

Toro 107-7739

BELT-POLY V

$42.99

$

In Stock, Qty 5

0

5

Toro 103-1339

SHEAVE-5 RIB

$210.99

$

Usually ships in 3-6 days

0

6

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 103-1422

SPACER-PUMP DRIVE, FAN

$8.49

$

Usually ships in 3-6 days

0

8

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 107-9879

WHEEL PUMP TENSION ASM

$

$

Not available

10:1

TENSIONER ASM

Note: Not serviced separately

$

$

Not available

10:1:1

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

10:1:2

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

10:2

Toro 98-5954

DECAL-COVER, MISSING

$9.99

$

In Stock, only 1 left!

0

11

Toro 1-633167

SHEAVE-IDLER

$38.99

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

15

Toro 1-603414

SPRING-EXTENSION

$22.99

$

In Stock, Qty 13

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 103-7431

PUMP-FAN, COOLING

$833.99

$

Usually ships in 3-6 days

0

18

Toro 103-1299-03

PLATE-MATING, FAN PUMP

$

$

Not available

19

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 103-1575

SPACER-SPRING, FAN PUMP

$15.99

$

In Stock, only 2 left!

0

22

Toro 32150-1

KEY-SQUARE

$5.99

$

Usually ships in 3-6 days

0

23

Toro 103-1338

SHEAVE-5 RIB

$166.99

$

Usually ships in 3-6 days

0

24

Toro 3246-6

SCREW-SET, HSH

$7.99

$

Usually ships in 3-6 days

0

25

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, only 3 left!

0
