74269 CP (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) CRANKSHAFT ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

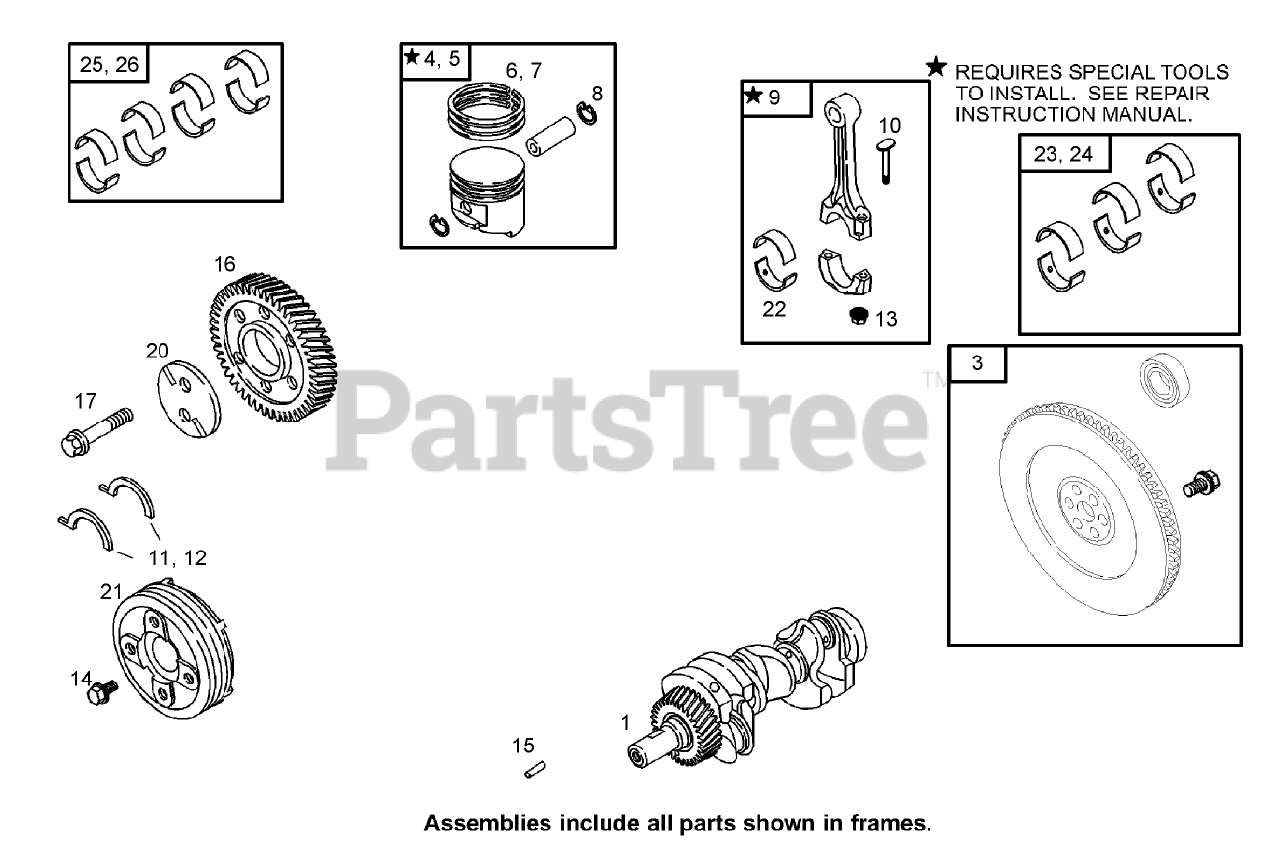

CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 105-9339

Crankshaft

$3293.99

$

Usually ships in 3-6 days

0

3

Toro 99-9024

FLYWHEEL
(Superseded to 99-9267)

$727.99

$

Usually ships in 3-6 days

0

4

Toro 107-9895

PISTON ASM

$417.99

$

Usually ships in 3-6 days

0

5

Toro 107-9896

PISTON ASM (OVERSIZE)

$459.99

$

Usually ships in 3-6 days

0

6

Toro 105-9340

Ring Set

$273.99

$

Usually ships in 3-6 days

0

7

Toro 99-9269

RING SET (.010 OVERSIZED)

$302.99

$

Usually ships in 3-6 days

0

8

Toro 99-9607

LOCK-PIN, PISTON

$16.99

$

Usually ships in 3-6 days

0

9

Toro 99-9608

ROD-CONNECTING

$

$

Not available

10

Toro 99-9030

SCREW-ROD, CONNECTING

$25.99

$

Usually ships in 3-6 days

0

11

Toro 99-9035

WASHER-THRUST

$129.99

$

Usually ships in 3-6 days

0

12

Toro 99-9036

WASHER-THRUST (.005 IN OVERSIZED)

$191.99

$

Usually ships in 3-6 days

0

13

Toro 99-9034

NUT-HEX

$13.99

$

Usually ships in 3-6 days

0

14

Toro 107-9897

SCREW-HEX

$28.99

$

Usually ships in 3-6 days

0

15

Toro 99-9037

PIN-LOCATING

$23.99

$

Usually ships in 3-6 days

0

16

Toro 99-9609

GEAR-DRIVE

$466.99

$

Usually ships in 3-6 days

0

17

Toro 99-9032

SCREW-HEX

$

$

Not available

20

Toro 99-9040

PLATE-GEAR, IDLER

$27.99

$

Usually ships in 3-6 days

0

21

Toro 99-9041

PULLEY-CRANKSHAFT

$224.99

$

Usually ships in 3-6 days

0

22

Toro 99-9042

BEARING-ROD
(Superseded to 117-4893)

$125.99

$

In Stock, only 1 left!

0

23

Toro 99-9043

SET-BEARING, ROD
(Superseded to 117-4893)

$125.99

$

In Stock, only 1 left!

0

24

Toro 99-9044

SET-BEARING, ROD (.010 UNDERSIZED)

$203.99

$

Usually ships in 3-6 days

0

25

Toro 99-9045

SET-BEARING, MAIN (SET OF 8)

$

$

Not available

26

Toro 99-9046

SET-BEARING, MAIN (.010 UNDERSIZED)

$214.99

$

Usually ships in 3-6 days

0
