74269 CP (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) WATER PUMP ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

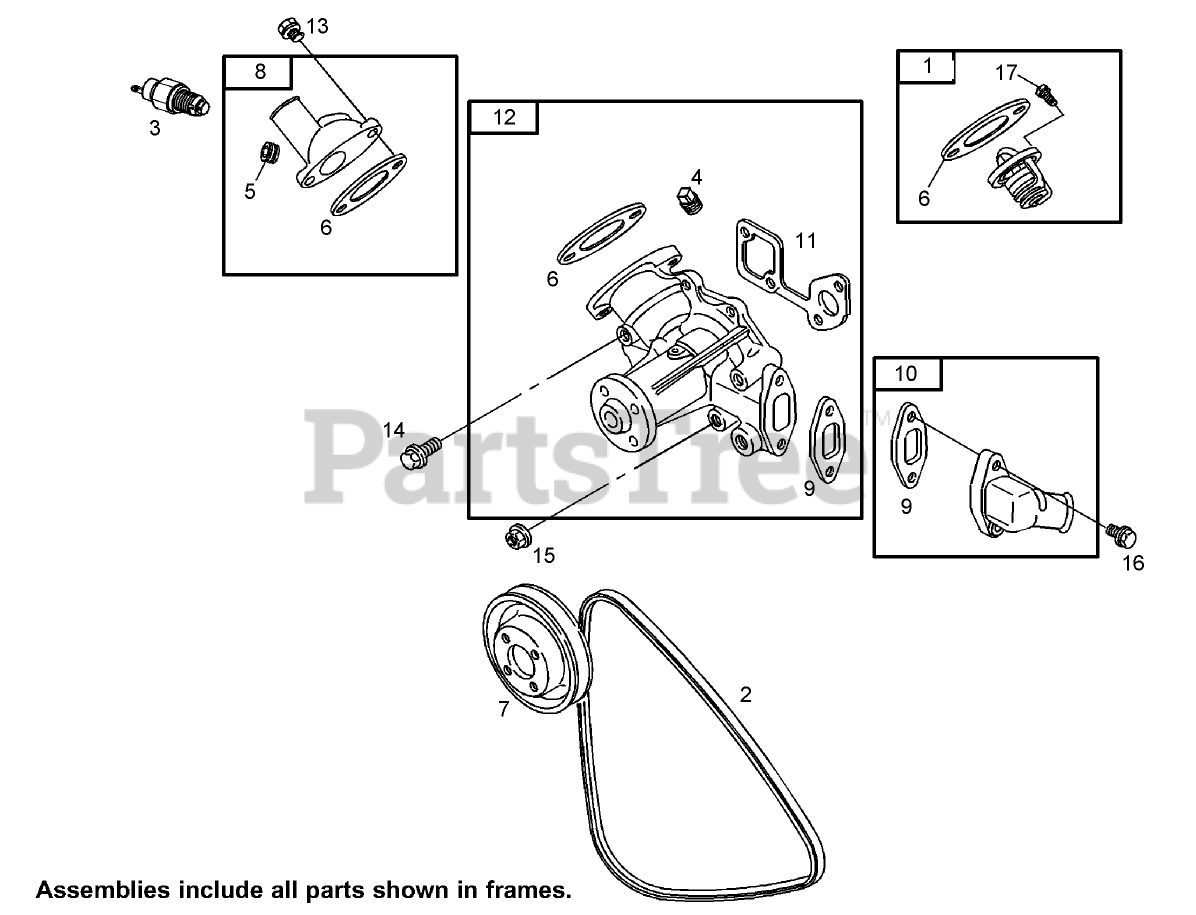

WATER PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9155

THERMOSTAT

$

$

Not available

2

Toro 99-9156

BELT-V

$

$

Not available

3

Toro 107-9902

SWITCH-TEMPERATURE, WATER

$

$

Not available

4

Toro 99-9159

PLUG

$13.99

$

Usually ships in 3-6 days

0

5

Toro 99-9158

PLUG

$10.99

$

Usually ships in 3-6 days

0

6

Toro 99-9163

GASKET-OUTLET

$16.99

$

Usually ships in 3-6 days

0

7

Toro 99-9164

PULLEY-PUMP

$253.99

$

Usually ships in 3-6 days

0

8

Toro 99-9165

HOUSING-OUTLET

$

$

Not available

9

Toro 99-9166

GASKET-HOUSING, INLET

$19.99

$

Usually ships in 3-6 days

0

10

Toro 99-9167

HOUSING-INLET

$

$

Not available

11

Toro 99-9168

GASKET-PUMP, WATER

$19.99

$

Usually ships in 3-6 days

0

12

Toro 99-9659

PUMP-WATER

$759.99

$

Usually ships in 3-6 days

0

13

Toro 99-9004

SCREW-HEX

$

$

Not available

14

Toro 99-9151

SCREW-HEX

$16.99

$

Usually ships in 3-6 days

0

15

Toro 99-9153

NUT-HEX, METRIC

$

$

Not available

16

Toro 99-9004

SCREW-HEX

$

$

Not available

17

Toro 99-9152

SCREW-METRIC

$22.99

$

Usually ships in 3-6 days

0
