74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) RECYCLER ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

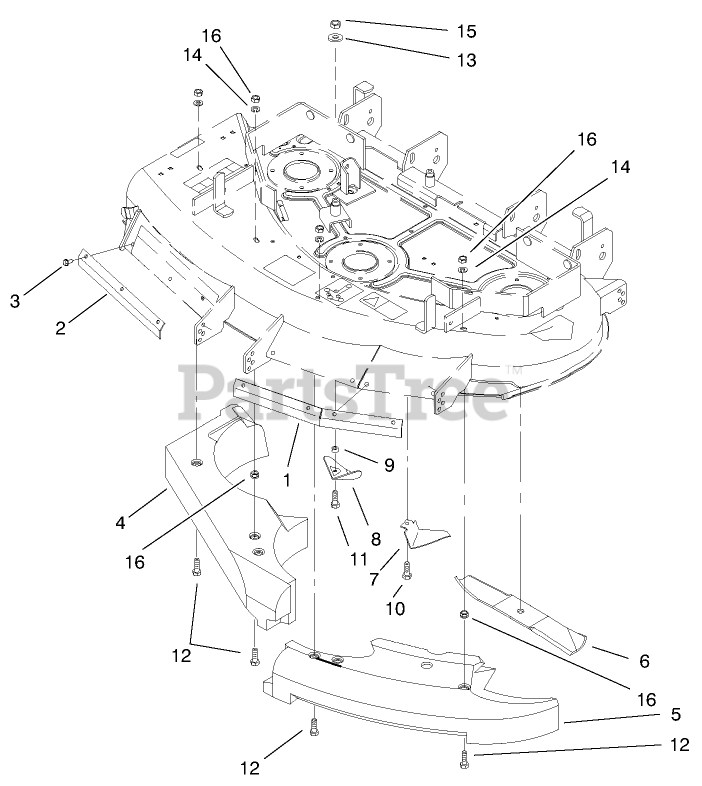

RECYCLER ASSEMBLY Parts Diagram

  • Title

1

Toro 99-4578

Guard-Left
(Superseded to 99-4578-01)

$

$

Not available

2

Toro 99-4579

Guard-Right
(Superseded to 99-4579-01)

$

$

Not available

3

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

4

Toro 93-7651

BAFFLE-RH

$304.99

$

Usually ships in 3-6 days

0

5

Toro 93-7652

BAFFLE-LH

$304.99

$

Usually ships in 3-6 days

0

6

Toro 92-7952

Blade-Recycler
(Superseded to 92-7952-03)

$33.99

$

In Stock, only 1 left!

0

7

Toro 93-1196

KICKER-CENTER, REAR

$32.99

$

Usually ships in 3-6 days

0

8

Toro 84-5760

PLATE-KICKER

$13.99

$

Usually ships in 3-6 days

0

9

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

10

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 9

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0
