74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH500V-DS10 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

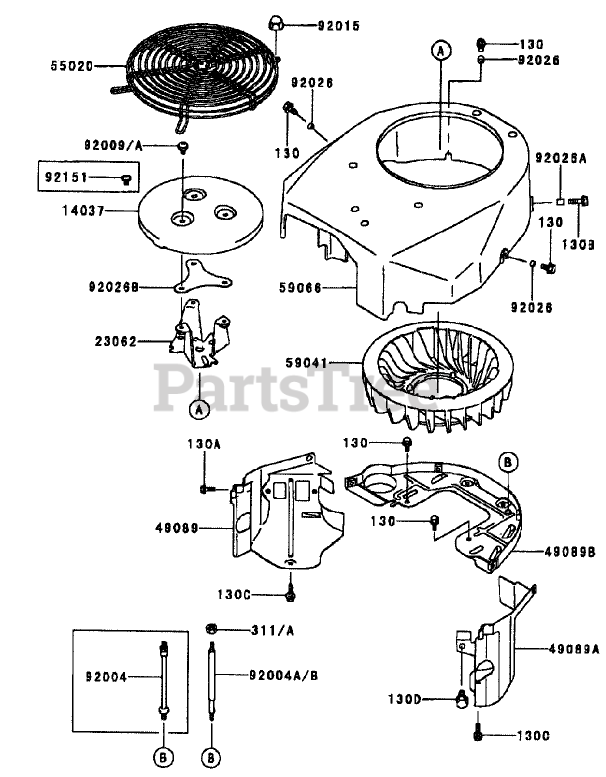

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH500V-DS10 Parts Diagram

  • Title

23062

Kawasaki 23062-7002

Bracket-Comp

$10.99

$

Usually ships in 2-5 days

0

49089

Kawasaki 49089-7001

Shroud-Engine
(Superseded to 49089-7034)

$26.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7002

Shroud-Engine

$28.99

$

In Stock, only 1 left!

0

49089B

Kawasaki 49089-7003

Shroud-Engine
(Superseded to 49089-7032)

$32.99

$

In Stock, only 1 left!

0

55020

Kawasaki 55020-7001

Guard
(Superseded to 55020-7004)

$32.99

$

In Stock, only 3 left!

0

59041

Toro 59041-7001

Fan

$

$

Currently unavailable

59066

Kawasaki 59066-7002

Housing-Fan

$

$

Not available

92004

Kawasaki 92004-2148

Stud
(Superseded to 92004-7006)

$6.99

$

In Stock, Qty 20+

0

92004A

Kawasaki 92004-7006

Stud
(Superseded to 92004-7025)

$6.99

$

In Stock, Qty 20+

0

92004B

Kawasaki 92004-7006

Stud
(Superseded to 92004-7025)

$6.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-7008

Screw
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

92009A

Kawasaki 92009-7008

Screw
(Superseded to 130BA0612)

$1.99

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1170

Nut
(Superseded to 92210-0003)

$0.99

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-7001

SPACER (6.2X7.9X5)
(Superseded to 92153-7007)

$4.49

$

In Stock, only 3 left!

0

92026A

Toro 92026-7003

Spacer

$

$

Currently unavailable

92026B

Kawasaki 92026-7004

Spacer
(Superseded to 92026-7007)

$5.99

$

In Stock, Qty 19

0

92151

Toro 92151-7009

Bolt, 6x10

$

$

Currently unavailable

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

$0.99

$

In Stock, Qty 10

0

130B

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

$3.49

$

In Stock, only 3 left!

0

130C

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

$0.99

$

In Stock, Qty 10

0

130D

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 12

0

311

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

311A

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

144037

Toro 14037-7003-9H

Screen

$

$

Currently unavailable
