74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) DECK ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

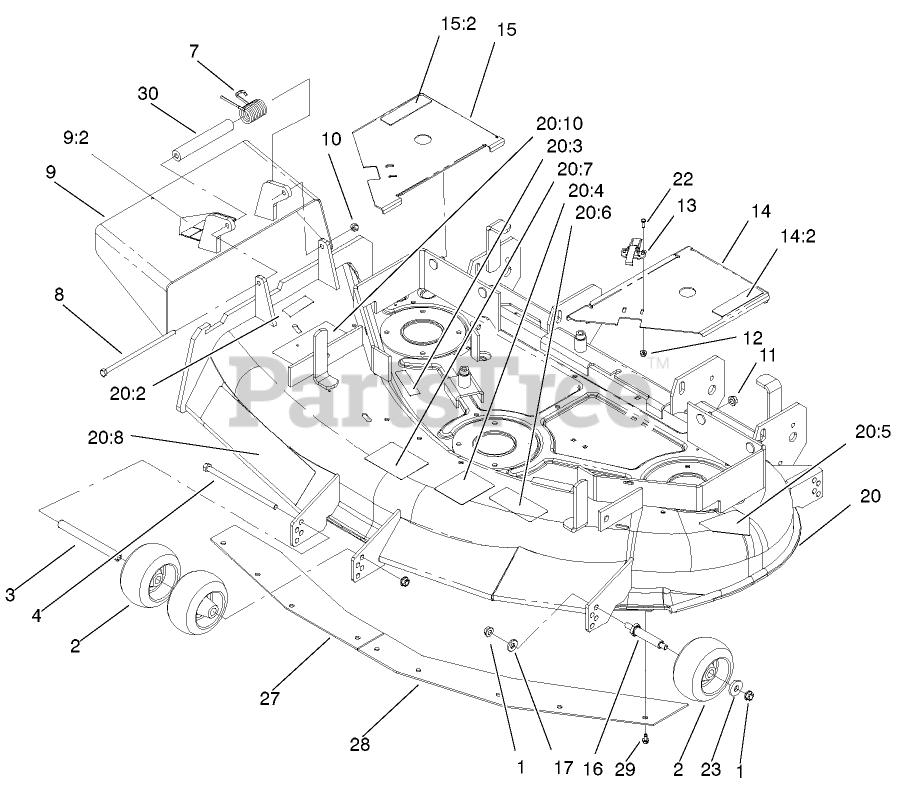

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

3

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

4

Toro 323-28

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

7

Toro 104-8554

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

8

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 10

0

9

Toro 105-0826

Deflector ASM
(Superseded to 105-4626)

$

$

Not available

9:2

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

13

Toro 249-21

CLAMP-SLOTTED

$21.99

$

In Stock, only 3 left!

0

14

Toro 100-3961

LH COVER ASM

$

$

Not available

14:2

Toro 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

15

Toro 100-3962

RH COVER ASM

$

$

Not available

15:2

Toro 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

16

Toro 99-2842

SPACER
(Superseded to 126-2928)

$28.99

$

In Stock, Qty 20+

0

17

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

20

Toro 105-1644

Deck ASM
(Superseded to 106-5884)

$4625.99

$

Usually ships in 3-6 days

0

20:2

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$25.99

$

Usually ships in 3-6 days

0

20:3

Toro 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

20:4

Toro 99-3943

DECAL-ROUTING, BELT

$8.49

$

In Stock, only 4 left!

0

20:5

Toro 93-7010

DECAL-DANGER

$13.99

$

Usually ships in 3-6 days

0

20:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$13.99

$

Usually ships in 3-6 days

0

20:7

Toro 99-8939

DECAL-ANTI SCALP

$29.99

$

Usually ships in 3-6 days

0

20:8

Toro 100-3967

DECAL

$

$

Not available

20:10

Toro 93-7824

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

22

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

23

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

27

Toro 100-3257-03

PLATE-BLOWOUT, RH

$173.99

$

Usually ships in 3-6 days

0

28

Toro 100-3258-03

PLATE-BLOWOUT, LH

$173.99

$

Usually ships in 3-6 days

0

29

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 13

0

30

Toro 104-8555

SPACER-MOUNTING, DEFLECTOR
(Superseded to 105-4622)

$11.99

$

In Stock, only 4 left!

0
