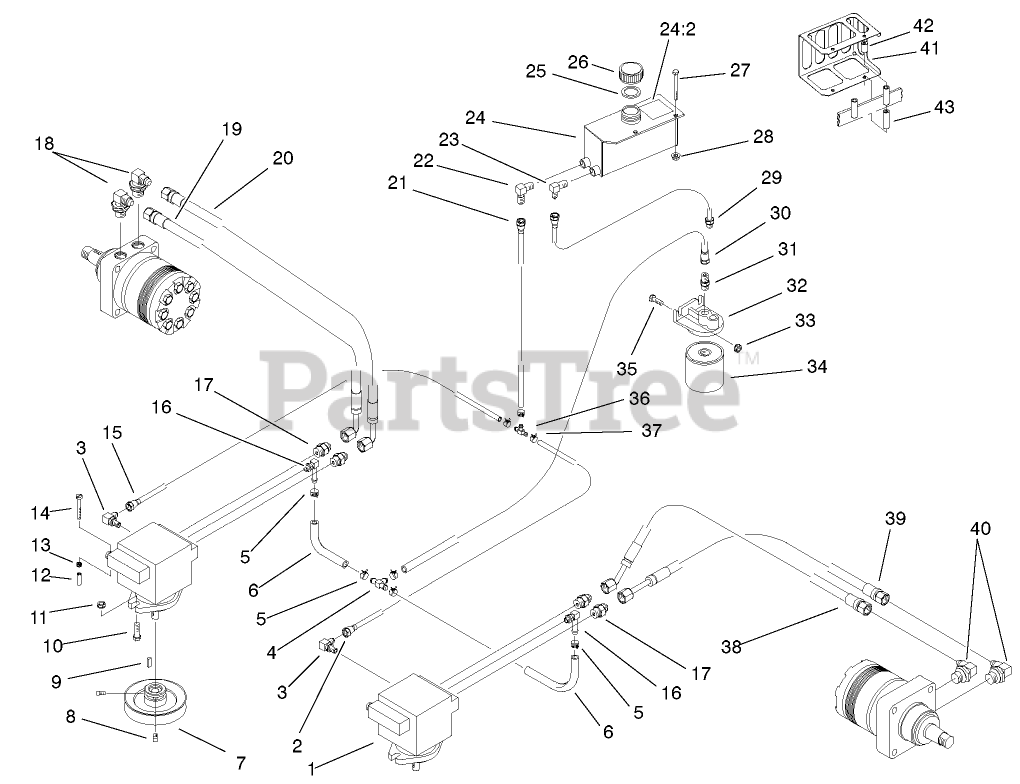

74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) HYDRAULICS ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

HYDRAULICS ASSEMBLY Parts Diagram

  • Title

1

Toro 1-603841

PUMP-HYDRAULIC
(Superseded to 103-2766)

$1481.99

$

Usually ships in 3-6 days

0

1

Toro 80-6130

SEAL KIT

Note: Not illustrated

$80.99

$

In Stock, Qty 6

0

2

Toro 1-632285

HOSE ASM

$43.99

$

In Stock, only 4 left!

0

3

Toro 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

4

Toro 1-603721

FITTING-TEE, HOSE

$22.99

$

Usually ships in 3-6 days

0

5

Toro 1-603827

CLAMP-HOSE

$2.99

$

In Stock, only 4 left!

0

6

Toro 1-413273

HOSE

$13.99

$

In Stock, only 1 left!

0

7

Toro 1-653156

PULLEY

$71.99

$

In Stock, only 3 left!

0

8

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 12

0

9

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-613073

GRIP-VALVE, DUMP

$5.49

$

Usually ships in 3-6 days

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 1-801063

SCREW

$2.99

$

Usually ships in 3-6 days

0

15

Toro 1-632286

HOSE ASM

$26.99

$

In Stock, only 3 left!

0

16

Toro 1-603989

FITTING

$35.99

$

Usually ships in 3-6 days

0

17

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 8

0

18

Toro 1-633605

FITTING-HYD, 90 DEG

$47.99

$

In Stock, only 2 left!

0

19

Toro 100-3964

HOSE-FRONT

$124.99

$

Usually ships in 3-6 days

0

20

Toro 100-3965

HOSE-REAR

$124.99

$

Usually ships in 3-6 days

0

21

Toro 1-654144

HOSE

$58.99

$

Usually ships in 3-6 days

0

22

Toro 1-603987

FITTING-ELBOW

$19.99

$

Usually ships in 3-6 days

0

23

Toro 1-603988

FITTING-ELBOW

$20.99

$

Usually ships in 3-6 days

0

24

Toro 100-3953

HYDRAULIC TANK ASM

$

$

Not available

24:2

Toro 100-3952

DECAL-HOT SURFACE
(Superseded to 107-2131)

$

$

Not available

25

Toro 1-523103

GASKET-CAP, TANK

$6.49

$

In Stock, Qty 13

0

26

Toro 1-513167

CAP

$26.99

$

In Stock, only 4 left!

0

27

Toro 321-21

SCREW-HH

$19.99

$

Usually ships in 3-6 days

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 1-654320

HOSE

$52.99

$

In Stock, only 1 left!

0

30

Toro 1-654509

HOSE

$69.99

$

Usually ships in 3-6 days

0

31

Toro 1-513510

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

32

Toro 1-603720

HEAD-FILTER

$

$

Not available

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 17

0

34

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$34.99

$

Usually ships in 3-6 days

0

35

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 1-603722

FITTING-TEE, HOSE

$21.99

$

Usually ships in 3-6 days

0

37

Toro 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

38

Toro 100-3966

HOSE-REAR

$101.99

$

Usually ships in 3-6 days

0

39

Toro 100-3968

HOSE-LH

$

$

Not available

40

Toro 1-633786

FITTING-90 DEG

$

$

Not available

41

Toro 99-8927-03

SHIELD-HEAT, HYDRO RES

$99.99

$

Usually ships in 3-6 days

0

42

Toro 99-8935

SPACER

$

$

Not available

43

Toro 99-8934

SPACER

$

$

Not available
