74274 CP (7000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) MAIN FRAME AND REAR WHEEL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

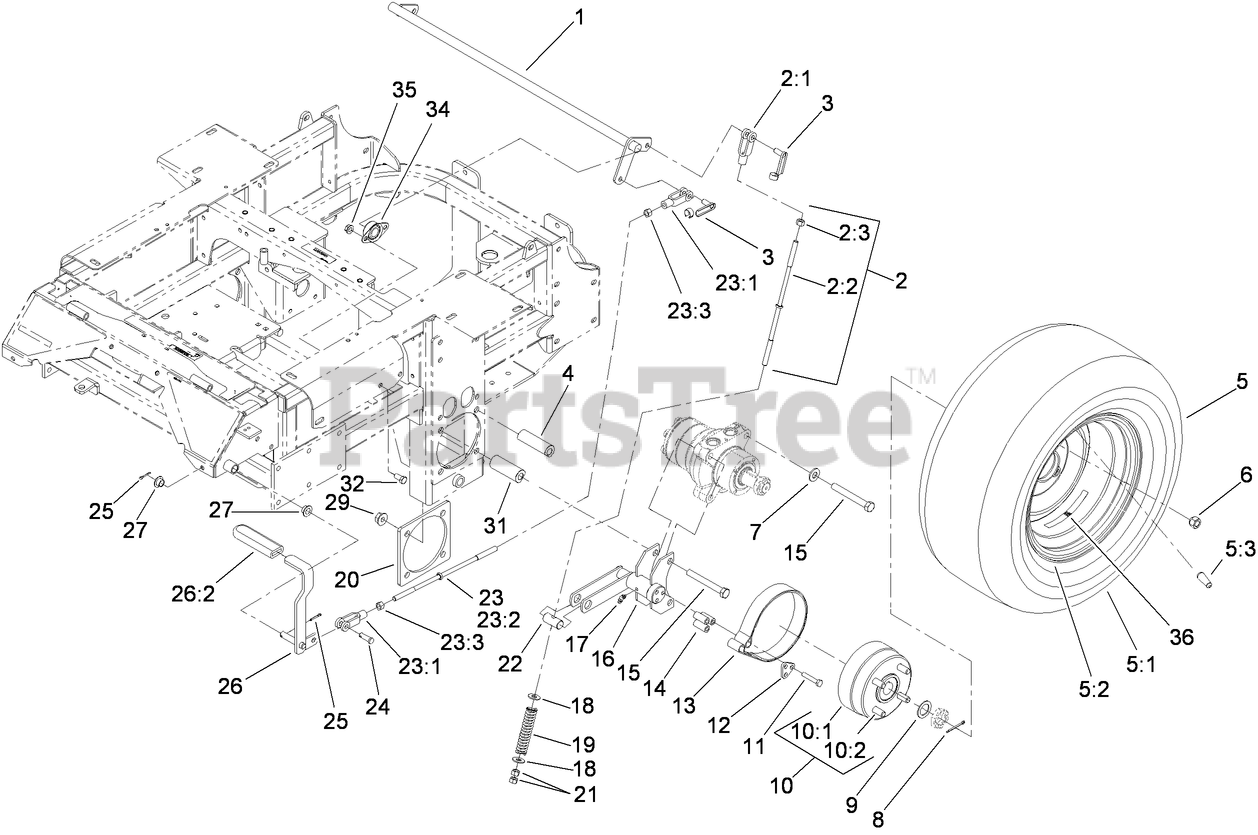

MAIN FRAME AND REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-632217-03

SHAFT-BRAKE

$194.99

$

Usually ships in 3-6 days

0

2

Toro 108-5963

BRAKE ROD ASM

$56.99

$

Usually ships in 3-6 days

0

2:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 7

0

2:2

Toro 108-5980

ROD-BRAKE

$49.99

$

Usually ships in 3-6 days

0

2:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

3

Toro 103-2399

Pin-Spring, Clevis

$6.99

$

In Stock, Qty 20+

0

4

Toro 109-5012

SPACER-WHEEL, LONG

$32.99

$

In Stock, only 1 left!

0

5

Toro 109-8972

WHEEL AND TIRE ASM

$493.99

$

In Stock, only 2 left!

0

5:1

Toro 1-633993

TIRE

$311.99

$

Usually ships in 3-6 days

0

5:2

Toro 109-3156

RIM

$267.99

$

In Stock, only 3 left!

0

5:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

6

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

7

Toro 87-7270

WASHER-THRUST

$1.49

$

In Stock, only 3 left!

0

8

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Toro 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

10

Toro 103-0590

WHEEL HUB ASM

$202.99

$

In Stock, Qty 8

0

10:1

Toro 103-0589

HUB-WHEEL

$192.99

$

Usually ships in 3-6 days

0

10:2

Toro 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

11

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 103-0374

RETAINER-BAND, BRAKE

$5.99

$

In Stock, only 2 left!

0

13

Toro 103-0355

BAND-BRAKE

$66.99

$

In Stock, only 4 left!

0

14

Toro 103-0384

SPACER

$2.49

$

Usually ships in 3-6 days

0

15

Toro 325-33

SCREW-HH

$15.99

$

In Stock, only 4 left!

0

16

Toro 103-0354-03

BRAKE BRACKET ASM

$234.99

$

Usually ships in 3-6 days

0

17

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

18

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

19

Toro 1-633454

SPRING-BRAKE

$11.99

$

In Stock, Qty 11

0

20

Toro 103-3271-03

PLATE-REINFORCEMENT

$56.99

$

Usually ships in 3-6 days

0

21

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

22

Toro 1-633144

PIN-TRUNION

$14.99

$

Usually ships in 3-6 days

0

23

Toro 108-5962

BRAKE ROD ASM

$62.99

$

Usually ships in 3-6 days

0

23:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 7

0

23:2

Toro 1-633477

ROD-BRAKE

$22.99

$

In Stock, only 1 left!

0

23:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 8

0

24

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 20+

0

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

26

Toro 1-634500

BRAKE LEVER ASM

$83.99

$

Usually ships in 3-6 days

0

26:2

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 17

0

27

Toro 1-513140

BEARING-CONTROL

$6.99

$

In Stock, Qty 6

0

29

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 10

0

31

Toro 109-5011

SPACER-WHEEL, SHORT

$30.99

$

In Stock, Qty 6

0

32

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

34

Toro 1-633102

BEARING-FLANGE, SIDE

$21.99

$

In Stock, only 3 left!

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Toro 109-7949

DECAL
(Superseded to 126-2056)

$11.99

$

In Stock, only 1 left!

0
