74274 CP (7000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) PISTON AND CRANKSHAFT ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

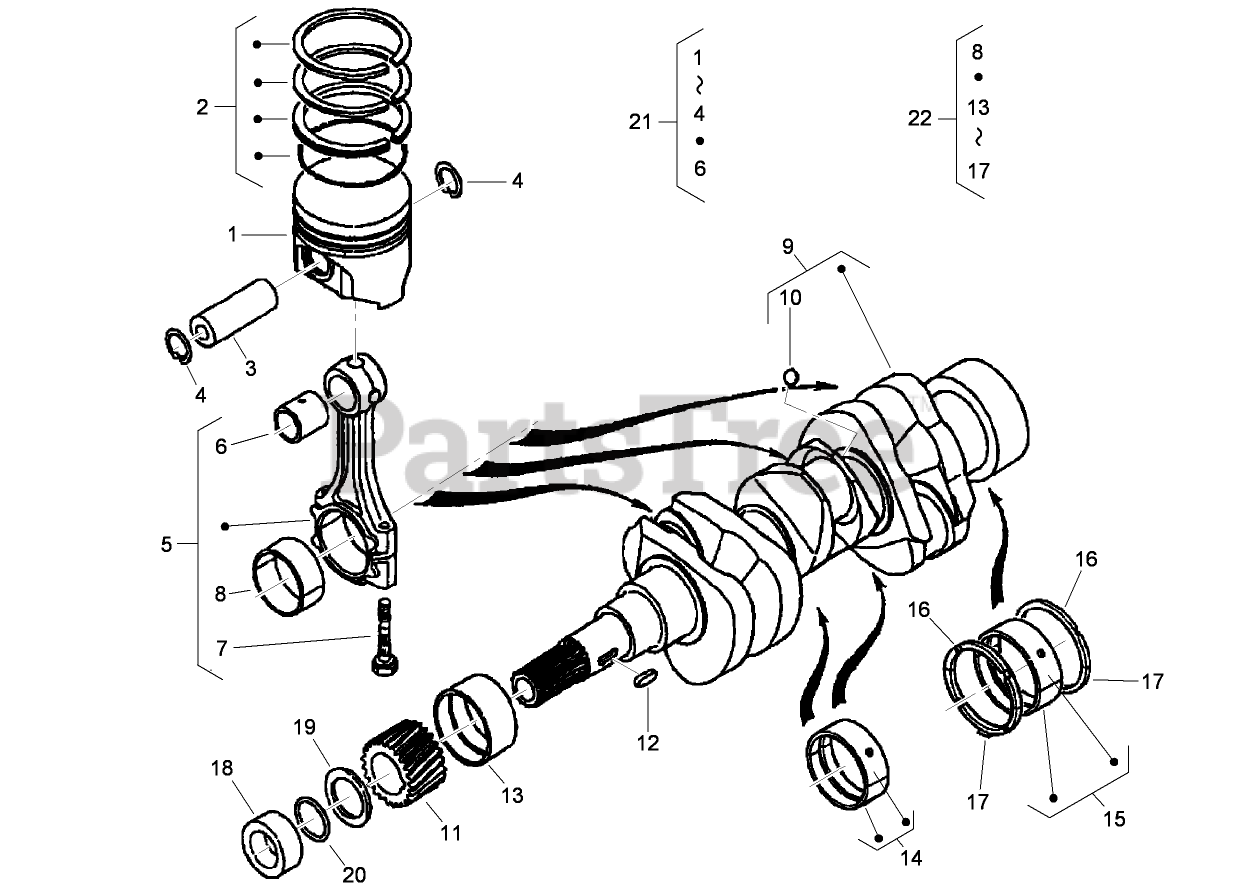

PISTON AND CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 117-0306

PISTON (STD)
(Superseded to 130-8100)

$532.99

$

Usually ships in 3-6 days

0

1

Toro 117-0307

PISTON (+.25MM)
(Superseded to 130-1539)

$624.99

$

Usually ships in 3-6 days

0

2

Toro 112-2501

PISTON RING ASM (STD)

$395.99

$

Usually ships in 3-6 days

0

2

Toro 112-2502

PISTON RING ASM (+.25MM)

$

$

Not available

3

Toro 110-3734

PIN-PISTON

$35.99

$

Usually ships in 3-6 days

0

4

Toro 100-1835

CIRCLIP-INTERNAL

$3.49

$

Usually ships in 3-6 days

0

5

Toro 110-3735

CONNECTING ROD ASM
(Superseded to 125-9070)

$684.99

$

Usually ships in 3-6 days

0

6

Toro 110-3736

BUSHING-PIN, PISTON

$30.99

$

Usually ships in 3-6 days

0

7

Toro 100-1999

BOLT-ROD, CONNECTING

$20.99

$

Usually ships in 3-6 days

0

8

Toro 100-1942

METAL-CRANKPIN (-0.20mm)
(Superseded to 121-3849)

$60.99

$

Usually ships in 3-6 days

0

8

Toro 100-1943

METAL-CRANKPIN (-0.40mm)
(Superseded to 121-2420)

$56.99

$

Usually ships in 3-6 days

0

8

Toro 100-2000

METAL-CRANKPIN (STD)

$59.99

$

Usually ships in 3-6 days

0

9

Toro 117-0308

CRANKSHAFT

$3312.99

$

Usually ships in 3-6 days

0

10

Toro 100-1791

BALL

$2.49

$

Usually ships in 3-6 days

0

11

Toro 100-1891

GEAR-CRANKSHAFT

$131.99

$

Usually ships in 3-6 days

0

12

Toro 100-1752

KEY-FEATHER

$4.49

$

Usually ships in 3-6 days

0

13

Toro 110-3738

METAL-CRANKSHAFT (STD)

$51.99

$

Usually ships in 3-6 days

0

13

Toro 110-3739

METAL-CRANKSHAFT (-.0.20MM)
(Superseded to 121-2424)

$89.99

$

Usually ships in 3-6 days

0

13

Toro 110-3740

METAL-CRANKSHAFT (-0.40MM)

$46.99

$

Usually ships in 3-6 days

0

14

Toro 110-3741

CRANKSHAFT METAL ASM (STD)

$83.99

$

Usually ships in 3-6 days

0

14

Toro 110-3742

CRANKSHAFT METAL ASM (-0.20MM)
(Superseded to 125-9083)

$66.99

$

Usually ships in 3-6 days

0

14

Toro 110-3743

CRANKSHAFT METAL ASM (-0.40mm)

$83.99

$

Usually ships in 3-6 days

0

15

Toro 110-3744

CRANKSHAFT METAL ASM (STD)
(Superseded to 125-9066)

$89.99

$

Usually ships in 3-6 days

0

15

Toro 110-3745

CRANKSHAFT METAL ASM (-0.20MM)

$83.99

$

Usually ships in 3-6 days

0

15

Toro 110-3746

CRANKSHAFT METAL ASM (-0.40MM)

$83.99

$

Usually ships in 3-6 days

0

16

Toro 100-1836

METAL-SIDE (STD)

$16.99

$

Usually ships in 3-6 days

0

16

Toro 100-1838

METAL-SIDE (+0.20MM)

$

$

Not available

16

Toro 100-1839

METAL-SIDE (+0.40MM)

$8.99

$

Usually ships in 3-6 days

0

17

Toro 117-0309

METAL-SIDE (STD)

$30.99

$

Usually ships in 3-6 days

0

17

Toro 117-0310

METAL-SIDE (+0.20mm)

$

$

Not available

17

Toro 117-0311

METAL-SIDE (+0.40mm)

$

$

Not available

18

Toro 100-1890

COLLAR-CRANKSHAFT

$80.99

$

Usually ships in 3-6 days

0

19

Toro 100-1974

SLINGER-OIL

$3.99

$

Usually ships in 3-6 days

0

20

Toro 100-2209

O-RING

$13.99

$

Usually ships in 3-6 days

0

21

Toro 112-2497

PISTON KIT (STD)
(Superseded to 130-8100)

$532.99

$

Usually ships in 3-6 days

0

21

Toro 112-2498

PISTON KIT (+.25MM)
(Superseded to 130-1539)

$624.99

$

Usually ships in 3-6 days

0

22

Toro 110-3749

ENGINE METAL KIT

$543.99

$

Usually ships in 3-6 days

0

22

Toro 110-3750

ENGINE METAL KIT

$542.99

$

Usually ships in 3-6 days

0

22

Toro 110-3751

ENGINE METAL KIT

$552.99

$

Usually ships in 3-6 days

0
