74279 TE (Z 593-D) - Toro 52" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 270000001 - 270999999) (2007) DECK ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Rear-Discharge Deck

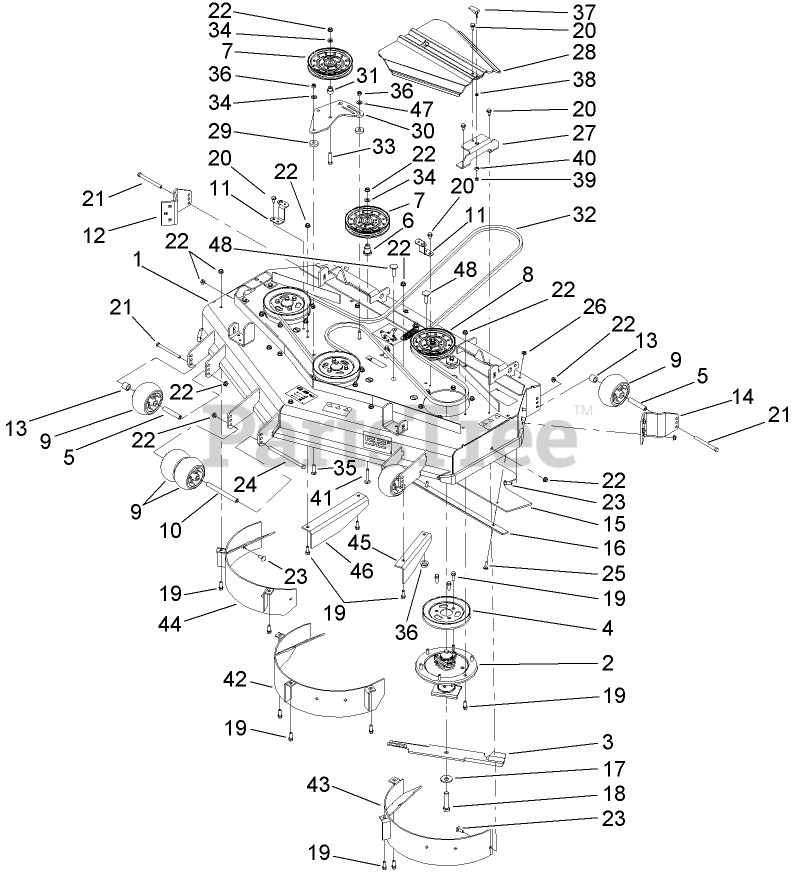

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-3751

DECK DECAL ASM

$

$

Not available

2

Toro 108-7713

SPINDLE ASM
(Superseded to 119-8599)

$484.99

$

In Stock, Qty 5

0

3

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 20+

0

4

Toro 108-5979

PULLEY-B SECTION

$95.99

$

Usually ships in 3-6 days

0

5

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

6

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, Qty 20+

0

7

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 20+

0

8

Toro 114-1812

SPRING IDLER ASM

$217.99

$

Usually ships in 3-6 days

0

9

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

10

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

11

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 3 left!

0

12

Toro 112-3893-01

MOUNT-ANTI SCALP, RH

$68.99

$

Usually ships in 3-6 days

0

13

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

14

Toro 112-3895-01

MOUNT-ANTI SCALP, LH

$68.99

$

Usually ships in 3-6 days

0

15

Toro 112-3869

DEFLECTOR-RUBBER

$151.99

$

Usually ships in 3-6 days

0

16

Toro 112-3868-01

SKID-SKIRT

$101.99

$

Usually ships in 3-6 days

0

17

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

18

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 20+

0

19

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 323-28

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

25

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 114-1809-01

BRACKET-BELT COVER

$52.99

$

Usually ships in 3-6 days

0

28

Toro 107-8536

COVER-BELT

$21.99

$

In Stock, Qty 5

0

29

Toro 105-7788

Spacer

$9.99

$

In Stock, only 3 left!

0

30

Toro 107-8516-01

PLATE-IDLER

$57.99

$

Usually ships in 3-6 days

0

31

Toro 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

32

Toro 108-5951

BELT-V

$145.99

$

In Stock, only 1 left!

0

33

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

36

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

37

Toro 106-6777

HANDLE-LATCH, SWELL

$25.99

$

In Stock, Qty 7

0

38

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

39

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 106-6778

BUSHING-LATCH, SWELL

$1.49

$

In Stock, Qty 20+

0

41

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

42

Toro 112-3871-01

BAFFLE-CENTER

$307.99

$

Usually ships in 3-6 days

0

43

Toro 112-3872-01

BAFFLE-LH

$234.99

$

Usually ships in 3-6 days

0

44

Toro 112-3873-01

BAFFLE-RH

$234.99

$

Usually ships in 3-6 days

0

45

Toro 112-3862-01

BAFFLE-TRAILING

$48.99

$

Usually ships in 3-6 days

0

46

Toro 112-3863-01

BAFFLE-TRAILING

$48.99

$

Usually ships in 3-6 days

0

47

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

48

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0
