74280 TE (Z 597-D) - Toro 62" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 260000001 - 260999999) (2006) LOW DRIVEN SPINDLE ASSEMBLY NO. 104-3532 Parts Diagram

62" Z Master Zero-Turn Mower, Rear-Discharge Deck

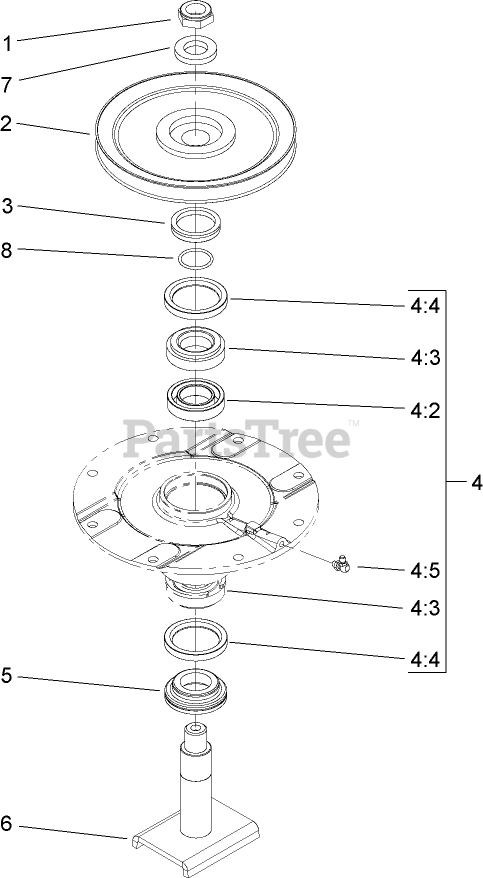

LOW DRIVEN SPINDLE ASSEMBLY NO. 104-3532 Parts Diagram

  • Title

1

Toro 3296-60

NUT-LOCK, NI

$5.99

$

In Stock, Qty 6

0

2

Toro 104-3546

PULLEY-DRIVEN, LOW

$211.99

$

Usually ships in 3-6 days

0

3

Toro 104-3564

SEAL-V RING

$

$

Currently unavailable

4

Toro 104-3552

SPINDLE HOUSING ASM

$

$

Currently unavailable

4:2

Toro 104-3549

BEARING SPACER SET

$

$

Currently unavailable

4:3

Toro 26-1830

BEARING KIT (MATCHED SET)
(Superseded to 110-8297)

$59.99

$

Usually ships in 3-6 days

0

4:4

Toro 253-154

SEAL-OIL

$6.49

$

In Stock, Qty 10

0

4:5

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

5

Toro 69-6950

SPACER-SHAFT, SPINDLE

$24.99

$

Usually ships in 3-6 days

0

6

Toro 104-3554

SHAFT-SPINDLE

$87.99

$

In Stock, only 3 left!

0

7

Toro 104-8322

WASHER-HARDENED

$

$

Currently unavailable

8

Toro 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0
