74280 TE (Z 597-D) - Toro 62" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 270000001 - 270999999) (2007) ENGINE FRAME, CONSOLE AND FLOOR PAN ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Rear-Discharge Deck

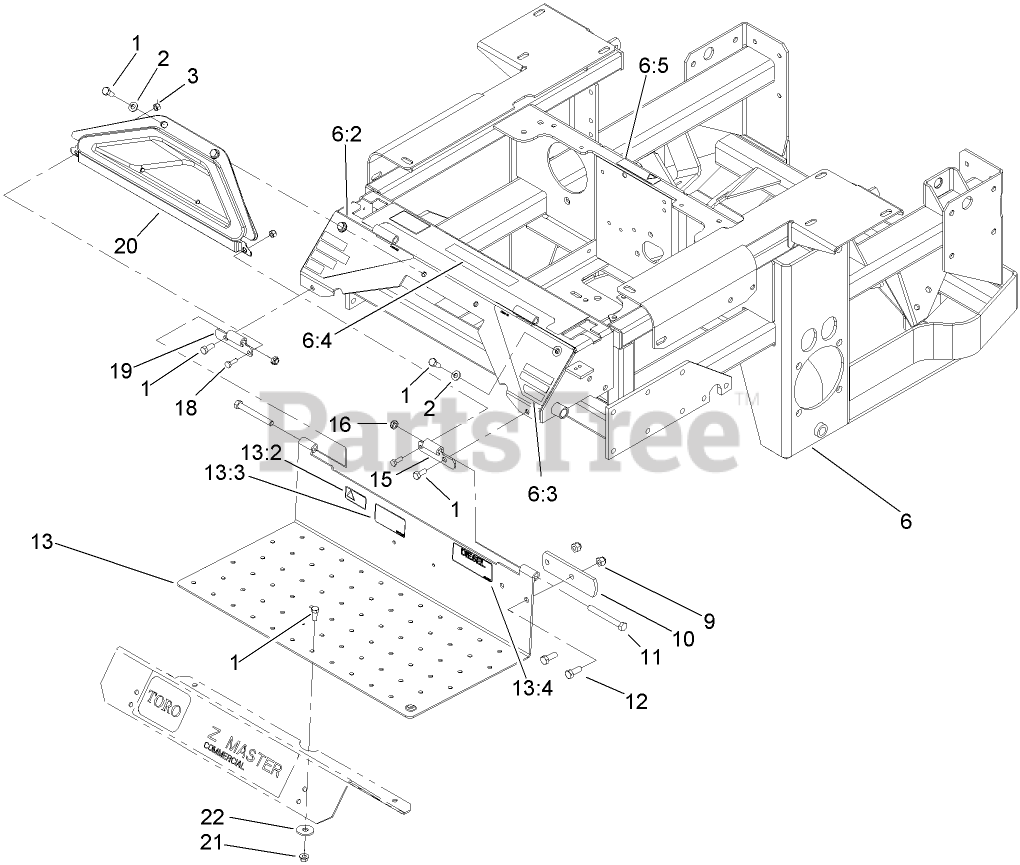

ENGINE FRAME, CONSOLE AND FLOOR PAN ASSEMBLY Parts Diagram

  • Title

1

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

2

Toro 3256-70

WASHER-FLAT

$1.99

$

In Stock, Qty 6

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

MAIN FRAME ASM

Note: Not serviced separately

$

$

Not available

6:2

Toro 107-3963

DECAL-DANGER, LEFT

$121.99

$

Usually ships in 3-6 days

0

6:3

Toro 107-3964

DECAL-WARNING, RIGHT

$121.99

$

Usually ships in 3-6 days

0

6:4

Toro 107-3967

DECAL-CONSOLE, TOP

$

$

Not available

6:5

Toro 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 1-633964-03

STOP-BRAKE, PARK

$13.99

$

Usually ships in 3-6 days

0

11

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

12

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 107-7655

FLOORPAN ASM

$

$

Not available

13:2

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

In Stock, Qty 8

0

13:3

Toro 107-3982

DECAL-LOCATION, MANUAL

$

$

Not available

13:4

Toro 107-7666

DECAL-DIESEL

$

$

Not available

15

Toro 106-7488-03

Hinge-Floorpan, LH

$23.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-7489-03

Hinge-Floorpan, RH

$23.99

$

Usually ships in 3-6 days

0

20

Toro 106-7498

Pocket

$36.99

$

Usually ships in 3-6 days

0

21

Toro 32128-25

NUT-HF

$3.99

$

In Stock, only 3 left!

0

22

Toro 1-653036

WASHER

$5.49

$

Usually ships in 3-6 days

0
