74284 (Z 550) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH740 0075 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

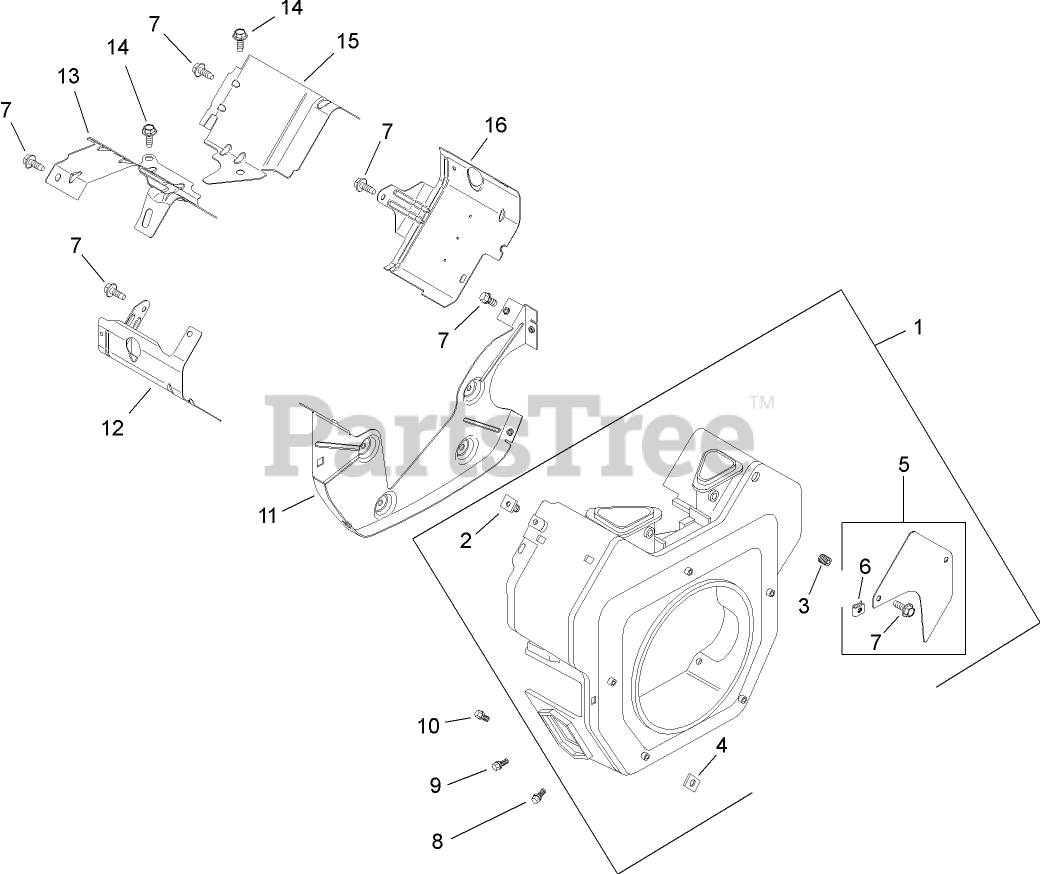

BLOWER HOUSING AND BAFFLE ASSEMBLY KOHLER CH740 0075 Parts Diagram

  • Title

1

Kohler 24 027 201-S

Housing-Blower
(Superseded to 24 027 485-S)

Note: Obtain parts from www.kohlerplus.com

$159.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

5

Kohler 25 755 21-S

Access Panel Kit
(Superseded to 25 755 20-S)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, only 1 left!

0

6

Kohler 25 154 02-S

Clip-Mounting
(Superseded to 25 154 37-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

7

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

8

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

9

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 13

0

10

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 17

0

11

Kohler 24 146 53-S

Plate-Backing
(Superseded to 24 146 59-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 2 left!

0

12

Kohler 24 063 39-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

In Stock, only 1 left!

0

13

Kohler 24 063 70-S

BAFFLE-VALLEY (No. 2 SIDE)
(Superseded to 32 063 02-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 2 left!

0

14

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 13

0

15

Kohler 24 063 59-S

BAFFLE-VALLEY (No. 1 SIDE)
(Superseded to 32 063 03-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 4 left!

0

16

Kohler 24 063 58-S

Baffle-Barrel, Cylinder (No. 1 Side)
(Superseded to 24 063 85-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 1 left!

0

Kohler 25 154 11-S

Clip-Repair (Speed Nut)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

Kohler 25 154 11-S

Clip-Repair (Speed Nut)

Note: Not illustrated

$3.99

$

In Stock, only 1 left!

0

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Not illustrated

$8.49

$

In Stock, only 3 left!

0

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, only 3 left!
