74296 (Z 500) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

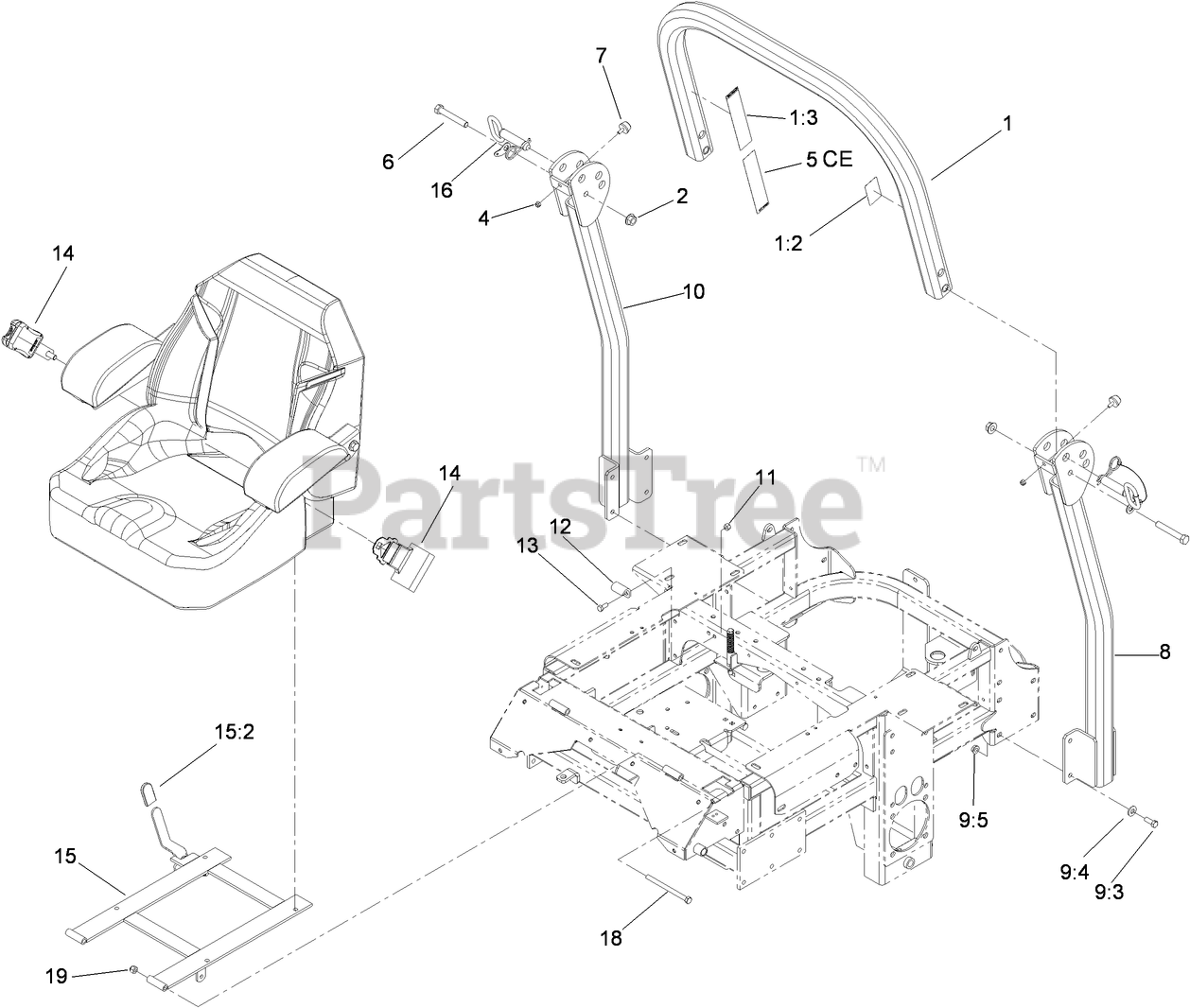

ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Upper Tube ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 107-2101

DECAL-ROPS

$

$

Not available

1:3

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$8.99

$

In Stock, only 1 left!

0

2

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

5

Toro 107-3069

DECAL-WARNING

$21.99

$

Usually ships in 3-6 days

0

6

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 19

0

8

TUBE-SUPPORT, LH

Note: Not serviced separately

$

$

Not available

9:3

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9:4

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

9:5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

BAG-BOLT, ROPS

Note: Not serviced separately

$

$

Not available

10

TUBE-SUPPORT, RH

Note: Not serviced separately

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 107-3058

Catch-Latch, Seat

$5.49

$

Usually ships in 3-6 days

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 109-9805

SEAT BELT KIT

$318.99

$

Usually ships in 3-6 days

0

15

Toro 110-5850

SEAT FRAME AND LATCH ASM

$101.99

$

Usually ships in 3-6 days

0

15:2

Toro 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

16

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 3 left!

0

18

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
