74301 (Z 380) - Toro 38" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) 38IN DECK ASSEMBLY Parts Diagram

38" TimeCutter Zero-Turn Mower

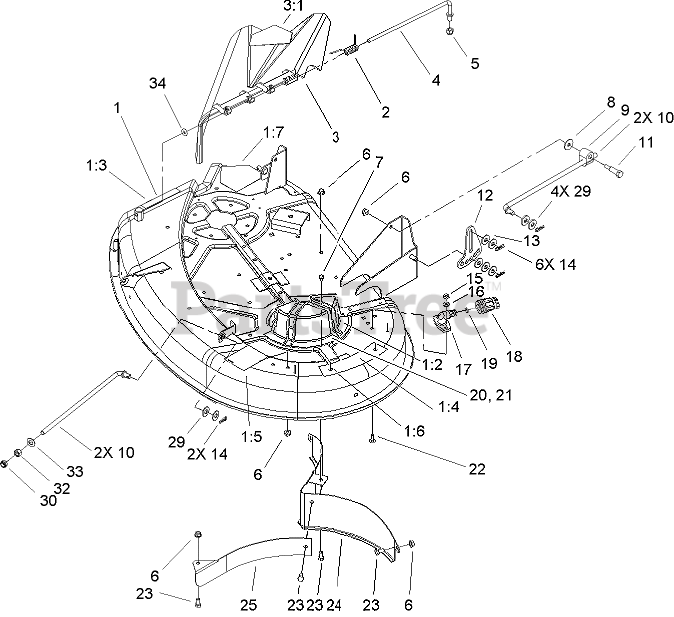

38IN DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9124

38 IN DECK ASM

$1127.99

$

Usually ships in 3-6 days

0

1:2

Toro 68-3660

DECAL-DANGER, SHIELD

$10.99

$

In Stock, only 1 left!

0

1:3

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$13.99

$

Usually ships in 3-6 days

0

1:4

Toro 79-3140

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

1:5

Toro 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 18

0

1:6

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 12

0

1:7

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

2

Toro 57-6950

SPRING

$25.99

$

In Stock, only 4 left!

0

3

Toro 93-0317

DEFLECTOR ASM

$71.99

$

In Stock, only 4 left!

0

3:1

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

4

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

9

Toro 88-4230

TRUNNION-HOC

$13.99

$

In Stock, only 1 left!

0

10

Toro 105-3437

ROD-HANGER

$31.99

$

In Stock, Qty 6

0

11

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 3 left!

0

12

Toro 88-5570-03

LINK-ADJUSTING, HOC

$13.99

$

In Stock, only 1 left!

0

13

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 20+

0

14

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

15

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

16

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 12

0

18

Toro 95-3270

CONNECTOR-HOSE

$22.99

$

In Stock, Qty 18

0

19

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 13

0

20

Toro 88-4030

GUIDE-BELT, LH

$35.99

$

In Stock, only 1 left!

0

21

Toro 88-4020

GUIDE-BELT, RH

$35.99

$

In Stock, only 1 left!

0

22

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

23

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 106-7030-03

BAFFLE-REAR

$109.99

$

Usually ships in 3-6 days

0

25

Toro 106-7032-03

EXTENSION-BAFFLE

$95.99

$

Usually ships in 3-6 days

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, Qty 5

0

32

Toro 3219-4

NUT-HEX

$3.49

$

Usually ships in 3-6 days

0

33

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

34

Toro 106-8745

O-RING

$1.99

$

In Stock, only 2 left!

0
