74301 (Z 380) - Toro 38" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) ENGINE ASSEMBLY Parts Diagram

38" TimeCutter Zero-Turn Mower

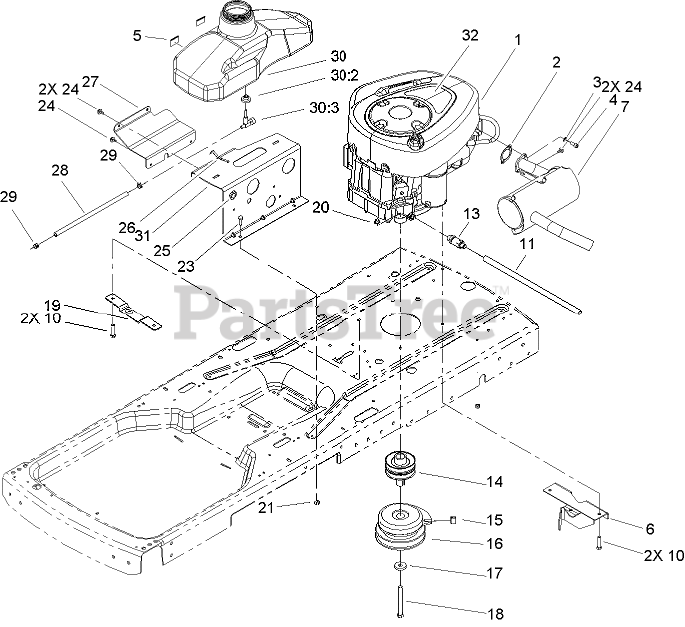

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS & STRATTON, 280H07-0166-E1

Note: Not serviced separately

$

$

Not available

2

Toro 88-4410

GASKET-EXHAUST

$20.99

$

In Stock, Qty 5

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

5

Toro 104-2488

FOAM-SWITCH, SEAT

$8.49

$

Usually ships in 3-6 days

0

6

Toro 107-4873

BRACKET-PIVOT

$

$

Not available

7

Toro 106-7007

MUFFLER

$497.99

$

In Stock, only 1 left!

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 106-7022

TUBE-DRAIN, OIL

$9.99

$

In Stock, Qty 6

0

13

Toro 92-6877

VALVE-DRAIN, OIL

$43.99

$

In Stock, only 3 left!

0

14

Toro 105-3472

PULLEY-ENGINE

$316.99

$

Usually ships in 3-6 days

0

15

Toro 98-5023

BUMPER

$8.99

$

Usually ships in 3-6 days

0

16

Toro 105-3462

CLUTCH-ELECTRIC

$1127.99

$

Usually ships in 3-6 days

0

17

Toro 112843

WASHER

$3.99

$

In Stock, Qty 11

0

18

Toro 3212-16

SCREW-HH

$20.99

$

In Stock, Qty 11

0

19

Toro 106-2156

PLATE-MOUNT, IDLER

$40.99

$

Usually ships in 3-6 days

0

20

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 7

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

25

Toro 237-124

GROMMET

$2.99

$

In Stock, only 1 left!

0

26

Toro 609830

SPRING

$5.99

$

In Stock, only 2 left!

0

27

Toro 108-2315-03

PLATE-SUPPORT

$

$

Not available

28

Toro 106-8720

HOSE-FUEL

$

$

Not available

29

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

30

Toro 105-3464

GAS TANK ASM

$

$

Not available

30:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

30:3

Toro 104048

VALVE-FUEL

$39.99

$

In Stock, Qty 7

0

31

Toro 108-2314-03

PLATE-TANK

$

$

Not available

32

Toro 107-4924

DECAL-ENGINE, I/C

$

$

Not available
