74311 TE (8000) - Toro 122cm Z Master Zero-Turn Mower (SN: 402000000 - 404329999) Deck Assembly Parts Diagram

122cm Z Master Zero-Turn Mower

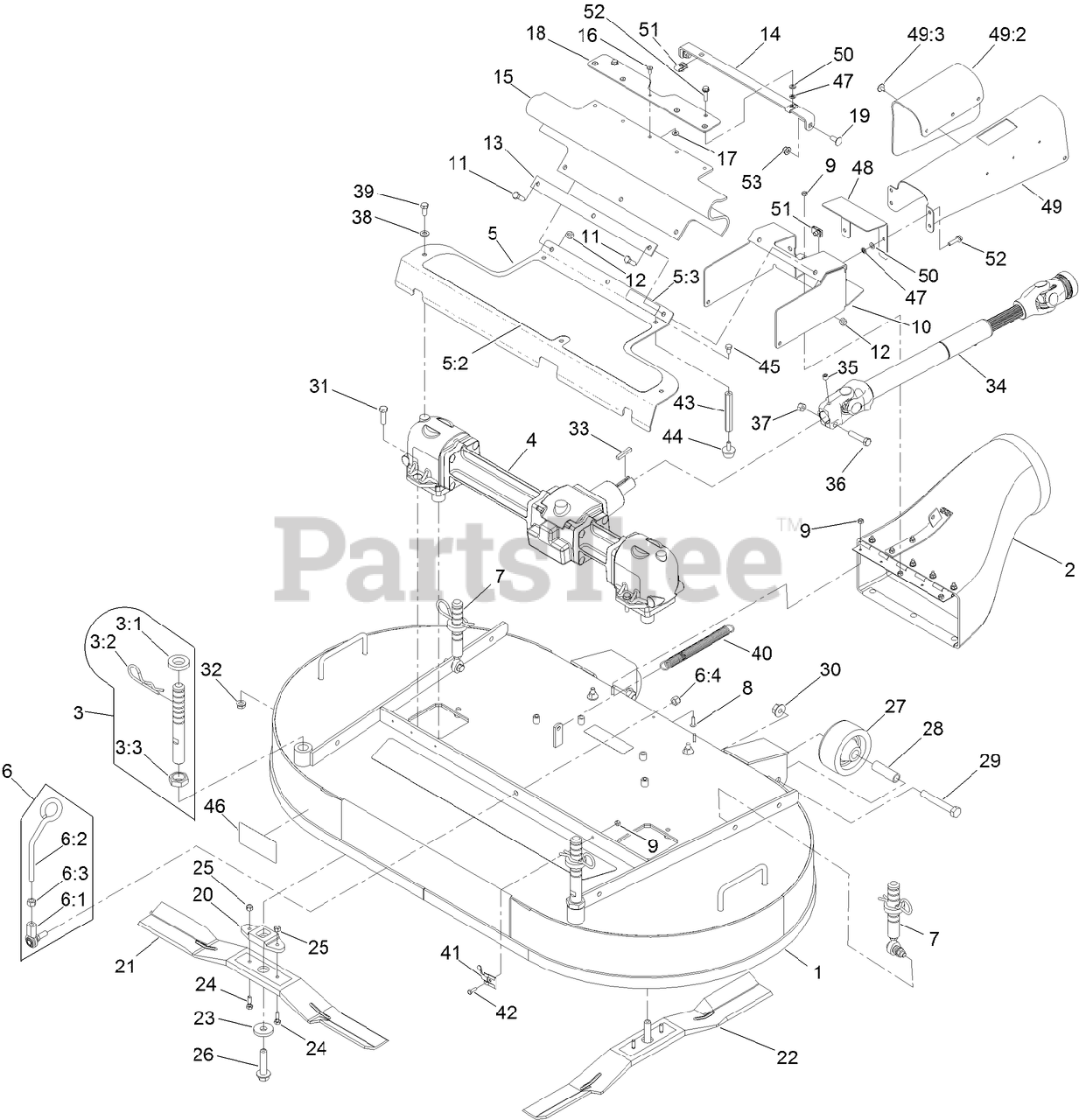

Deck Assembly Parts Diagram

  • Title

1

Toro 109-4372

DECK DECAL AND BAFFLE ASM
(Superseded to 142-2922)

$1710.99

$

Usually ships in 3-6 days

0

2

Toro 103-9487

DISCHARGE TUBE ASM

$318.99

$

In Stock, only 1 left!

0

3

Toro 109-0321

FRONT DECK HEIGHT ADJUST ASM

$94.99

$

In Stock, only 1 left!

0

3:1

Toro 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 20+

0

3:2

Toro 103-7353

PIN-CUT HEIGHT

$11.99

$

In Stock, Qty 20+

0

3:3

Toro 103-8496

NUT-JAM

$5.49

$

Usually ships in 3-6 days

0

4

Toro 103-3387

GEAR BOX ASM

$3238.99

$

Usually ships in 3-6 days

0

5

Toro 130-2899

GEARBOX COVER ASM

$153.99

$

Usually ships in 3-6 days

0

5:2

Toro 103-8629

PAD-ANTI SKID

$26.99

$

Usually ships in 3-6 days

0

5:3

Toro 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

6

Toro 103-8363

DECK LATCH ASM

$123.99

$

In Stock, only 2 left!

0

6:1

Toro 103-7994

BALLJOINT-RH

$42.99

$

Usually ships in 3-6 days

0

6:2

Toro 103-8307

LATCH-DECK

$41.99

$

In Stock, only 1 left!

0

6:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

6:4

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

7

Toro 109-0323

REAR DECK HEIGHT ADJUST ASM

$113.99

$

Usually ships in 3-6 days

0

8

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 6

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 133-1870-01

GUARD-PTO, FRONT

$112.99

$

Usually ships in 3-6 days

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 103-6290-03

STRAP-DRIVE, LINE COVER

$37.99

$

Usually ships in 3-6 days

0

14

Toro 136-1661-03

MOUNT-GUARD

$59.99

$

Usually ships in 3-6 days

0

15

Toro 103-5979

GUARD-PTO

$80.99

$

Usually ships in 3-6 days

0

16

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 136-1660-03

PLATE-GUARD

$44.99

$

Usually ships in 3-6 days

0

19

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 103-7705

DRIVER-BLADE

$43.99

$

In Stock, Qty 20+

0

21

Toro 130-2862

BLADE-25IN, RH

$37.99

$

In Stock, Qty 20+

0

22

Toro 130-2861

BLADE-25IN, LH

$37.99

$

In Stock, Qty 20+

0

23

Toro 30-8770

WASHER

$11.99

$

In Stock, only 3 left!

0

24

Toro 99-0283

BOLT-SHEAR

$7.99

$

In Stock, Qty 20+

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 20+

0

27

Toro 103-3700

ROLLER-DECK

$19.99

$

Usually ships in 3-6 days

0

28

Toro 103-4230

SPACER-ROLLER

$12.99

$

Usually ships in 3-6 days

0

29

Toro 325-14

SCREW-HH

$4.49

$

In Stock, only 1 left!

0

30

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 14

0

31

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, only 2 left!

0

34

Toro 103-9485

DRIVE SHAFT ASM

$526.99

$

Usually ships in 3-6 days

0

35

Toro 3247-2

SCREW-SET, HSH

$4.49

$

Usually ships in 3-6 days

0

36

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 103-8841

SPRING-EXTENSION

$14.99

$

In Stock, only 1 left!

0

41

Toro 1-513690

CLIP-DECK, HOLD UP ROD

$5.49

$

Usually ships in 3-6 days

0

42

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 12

0

43

Toro 103-8610

STAND-OFF

$20.99

$

Usually ships in 3-6 days

0

44

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

45

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

46

Toro 130-2887

DECAL

$13.99

$

Usually ships in 3-6 days

0

47

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

48

Toro 133-1871-01

GUARD-PTO

$56.99

$

Usually ships in 3-6 days

0

49

Toro 133-1877

PTO GUARD ASM

$151.99

$

Usually ships in 3-6 days

0

49:2

Toro 133-1883

FLAP-RUBBER

$50.99

$

Usually ships in 3-6 days

0

49:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 5

0

50

Toro 3256-60

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

51

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

52

Toro 120-4654

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

53

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
