74313 (8000) - Toro 48" Z Master Zero-Turn Mower (SN: 402090000 - 403319680) Deck Support Frame Assembly No. 130-2893 Parts Diagram

48" Z Master Zero-Turn Mower

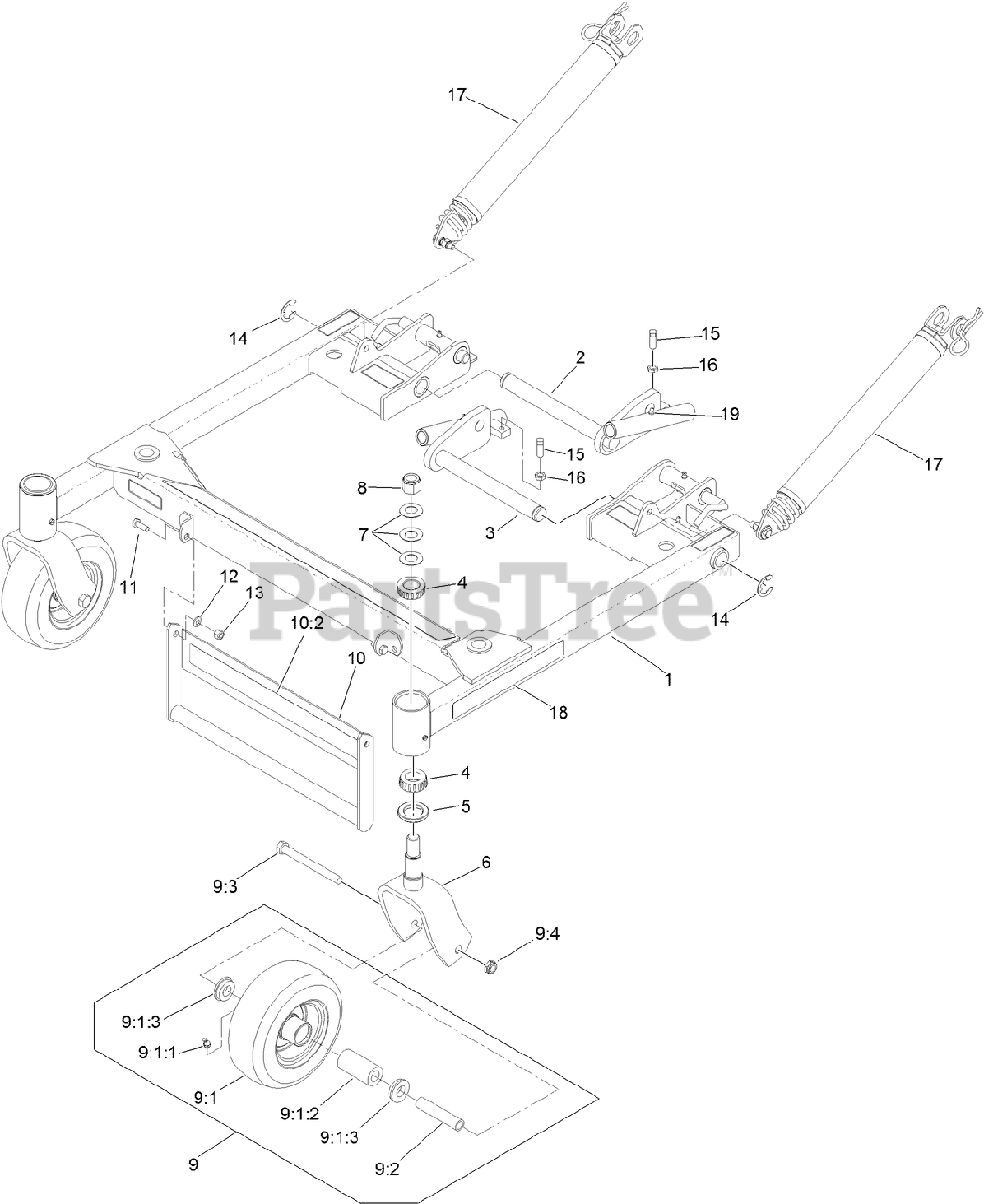

Deck Support Frame Assembly No. 130-2893 Parts Diagram

  • Title

1

Toro 103-9480

DECK SUPPORT ASM
(Superseded to 142-2914)

$1170.99

$

Usually ships in 3-6 days

0

2

Toro 103-3729-01

PIVOT-DECK, RH

$297.99

$

Usually ships in 3-6 days

0

3

Toro 103-3732-01

PIVOT-DECK, LH

$297.99

$

Usually ships in 3-6 days

0

4

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

5

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 8

0

6

Toro 109-1933-01

FORK-CASTER

$196.99

$

Usually ships in 3-6 days

0

7

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

8

Toro 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, only 1 left!

0

9

Toro 130-2867

WHEEL AND AXLE ASM
(Superseded to 135-5967)

$153.99

$

Usually ships in 3-6 days

0

9:1

Toro 130-2866

WHEEL AND TIRE
(Superseded to 135-5964)

$148.99

$

Usually ships in 3-6 days

0

9:1:1

Toro 302-61

FITTING-GREASE

$12.99

$

In Stock, only 2 left!

0

9:1:2

Toro 103-4588

BEARING-ROLLER, STRAIGHT

$38.99

$

Usually ships in 3-6 days

0

9:1:3

Toro 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

9:2

Toro 109-2094

SPACER-CASTER, FRONT

$18.99

$

Usually ships in 3-6 days

0

9:3

Toro 325-19

SCREW-HH

$8.99

$

In Stock, Qty 20+

0

9:4

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

10

Toro 130-2897

DECK LIFT HANDLE ASM

$192.99

$

Usually ships in 3-6 days

0

10:2

Toro 130-2883

DECAL

$22.99

$

Usually ships in 3-6 days

0

11

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 11

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 1-808519

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

15

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

16

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

17

Toro 116-7851

LIFT ASSIST SPRING ASM

$448.99

$

Usually ships in 3-6 days

0

18

Toro 130-2884

DECAL

$16.99

$

Usually ships in 3-6 days

0

19

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0
