74330 (16-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 240001180 - 240999999) (2004) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

42" TimeCutter Zero-Turn Mower

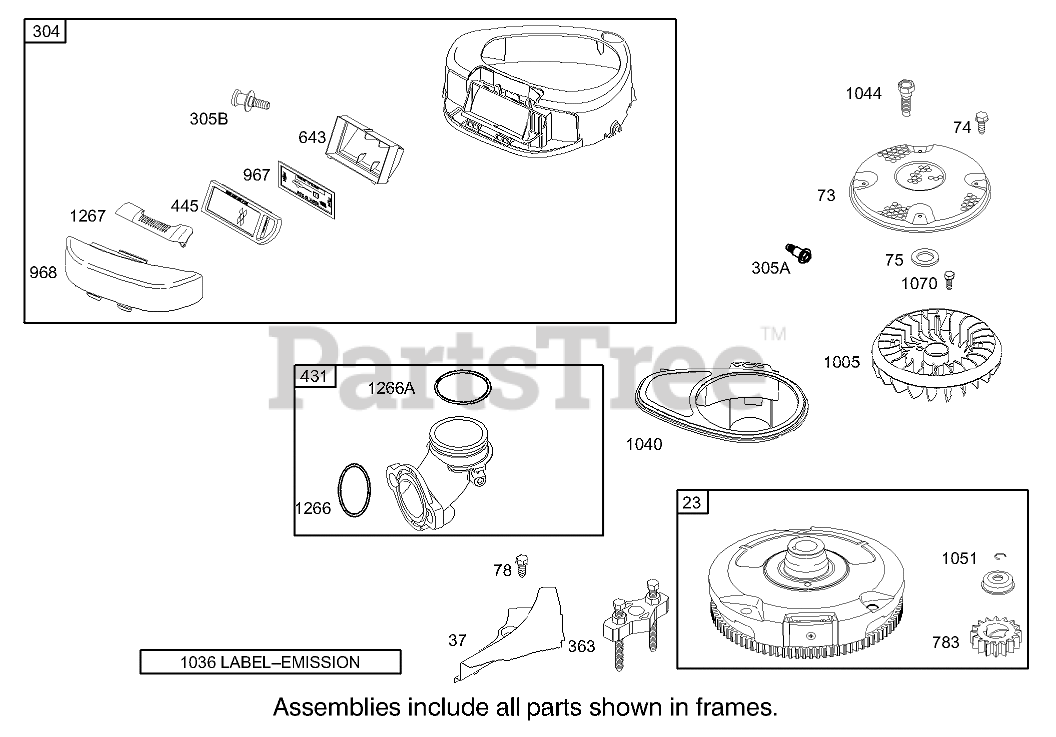

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693556

Flywheel
(Superseded to 595094)

Note: Obtain parts from www.briggsandstratton.com

$238.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 697352

Guard-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 697384

Screen-Rotating

Note: Obtain parts from www.briggsandstratton.com

$30.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 697897

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 690582

Washer-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

78

Briggs & Stratton 691003

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 2 left!

0

304

Briggs & Stratton 698804

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$126.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 697103

Screw
(Superseded to 799370)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

305B

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 17

0

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

431

Briggs & Stratton 697122

Elbow-Intake

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 698083

Filter-Cartridge, Air Cleaner
(Superseded to 794422)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, Qty 20+

0

643

Briggs & Stratton 698401

Retainer-Filter, Air

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

967

Briggs & Stratton 697015

Filter-Cleaner, Pre

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

968

Briggs & Stratton 697084

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 697853

Fan-Flywheel
(Superseded to 796201)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 695700

Label?Emission

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1040

Briggs & Stratton 698368

Plate-Trim

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

1044

Briggs & Stratton 691658

Screw-Crankshaft Extension
(Superseded to 698139)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 5

0

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 16

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

1267

Briggs & Stratton 697135

Latch-Blower Housing
(Superseded to 697662)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0
