74330 (16-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 240001180 - 240999999) (2004) DECK, SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

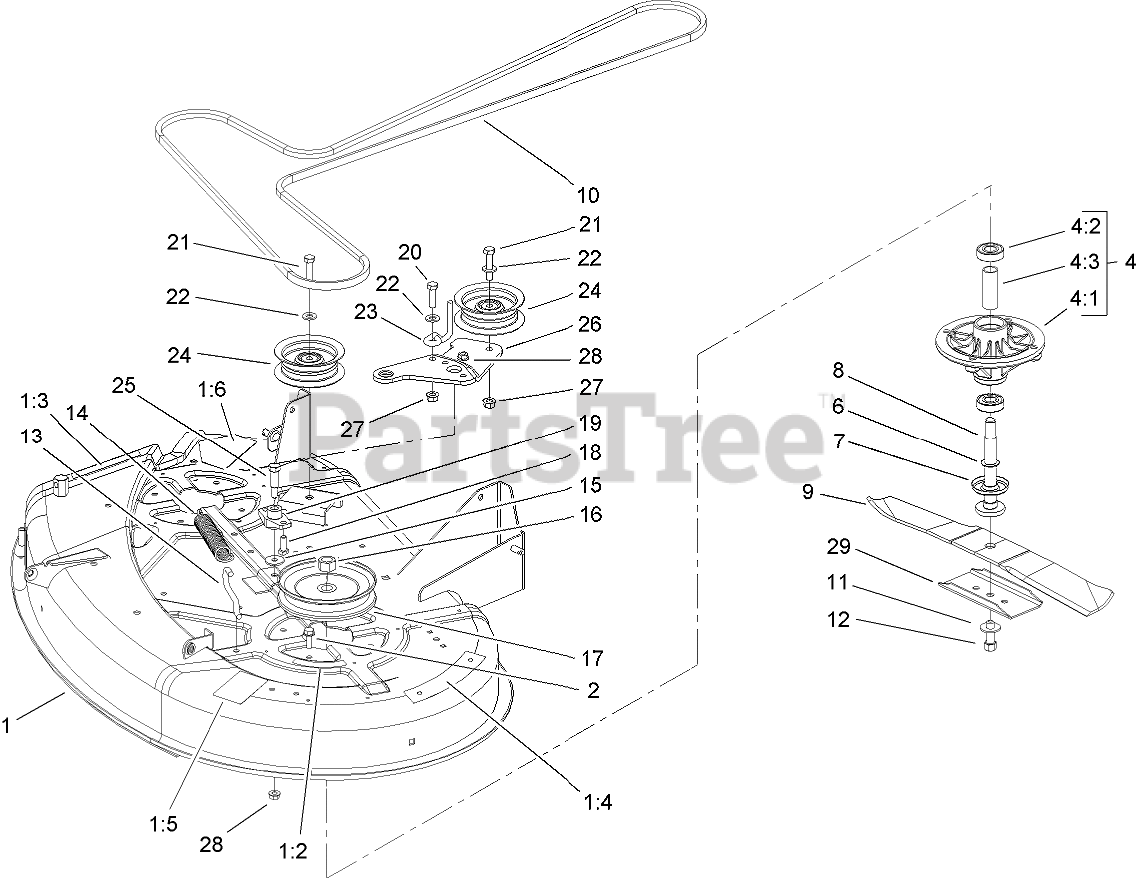

DECK, SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 106-8731

42IN DECK ASM
(Superseded to 132-9330)

$1263.99

$

Usually ships in 3-6 days

0

1:2

Toro 68-3660

DECAL-DANGER, SHIELD

$10.99

$

In Stock, only 1 left!

0

1:3

Toro 68-3650

DECAL-DANGER, DEFLECTOR

$13.99

$

Usually ships in 3-6 days

0

1:4

Toro 79-3140

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

1:5

Toro 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 18

0

1:6

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

4

Spindle ASM

Note: Not serviced separately

$

$

Not available

4:1

Toro 88-4510

HOUSING-SPINDLE

$91.99

$

In Stock, Qty 20+

0

4:2

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

4:3

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 20+

0

6

Toro 80-4380

SPACER

$6.49

$

In Stock, Qty 20+

0

7

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 20+

0

8

Toro 80-4341

SHAFT-SPINDLE

$47.99

$

In Stock, only 2 left!

0

9

Toro 106-2247-03

BLADE

$29.99

$

In Stock, Qty 20+

0

10

Toro 106-2173

BELT-V

$83.99

$

Usually ships in 3-6 days

0

11

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

13

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 20+

0

14

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, Qty 20+

0

15

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

16

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

17

Toro 88-5330

PULLEY

$107.99

$

In Stock, only 4 left!

0

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 88-4980

BUSHING-ARM, IDLER

$14.99

$

In Stock, Qty 8

0

20

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 15

0

24

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

25

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 3 left!

0

26

Toro 107-2467-03

ARM-IDLER

$45.99

$

In Stock, only 3 left!

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

29

Toro 106-2248-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 20+

0
