74350 (17-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) CYLINDER BLOCK ASSEMBLY RH HYDROSTAT NO. 105-3491 Parts Diagram

42" TimeCutter Zero-Turn Mower

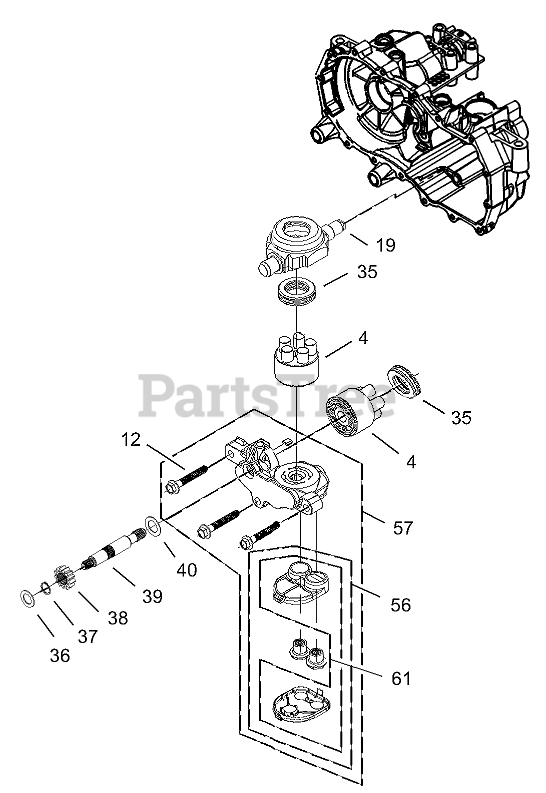

CYLINDER BLOCK ASSEMBLY RH HYDROSTAT NO. 105-3491 Parts Diagram

  • Title

4

Toro 104-2106

CYLINDER BLOCK ASM
(Superseded to 103-2666)

$578.99

$

Usually ships in 3-6 days

0

12

Toro 94-6926

BOLT

$11.99

$

Usually ships in 3-6 days

0

19

Toro 104-5304

SWASHPLATE-TRUNNION

$206.99

$

Usually ships in 3-6 days

0

35

Toro 94-6922

BEARING-THRUST

$66.99

$

In Stock, only 2 left!

0

36

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

37

Toro 104-5340

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

38

Toro 104-5316

GEAR-PINNION, 13T

$35.99

$

Usually ships in 3-6 days

0

39

Toro 106-8683

SHAFT-MOTOR

$303.99

$

Usually ships in 3-6 days

0

40

Toro 104-5360

WASHER

$8.49

$

Usually ships in 3-6 days

0

56

Toro 106-8689

Filter Kit

$

$

Currently unavailable

57

Toro 106-8690

LH CENTER SECTION FILTER KIT

$999.99

$

Usually ships in 3-6 days

0

61

Toro 106-8693

FILTER KIT

$

$

Not available
