74350 (17-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

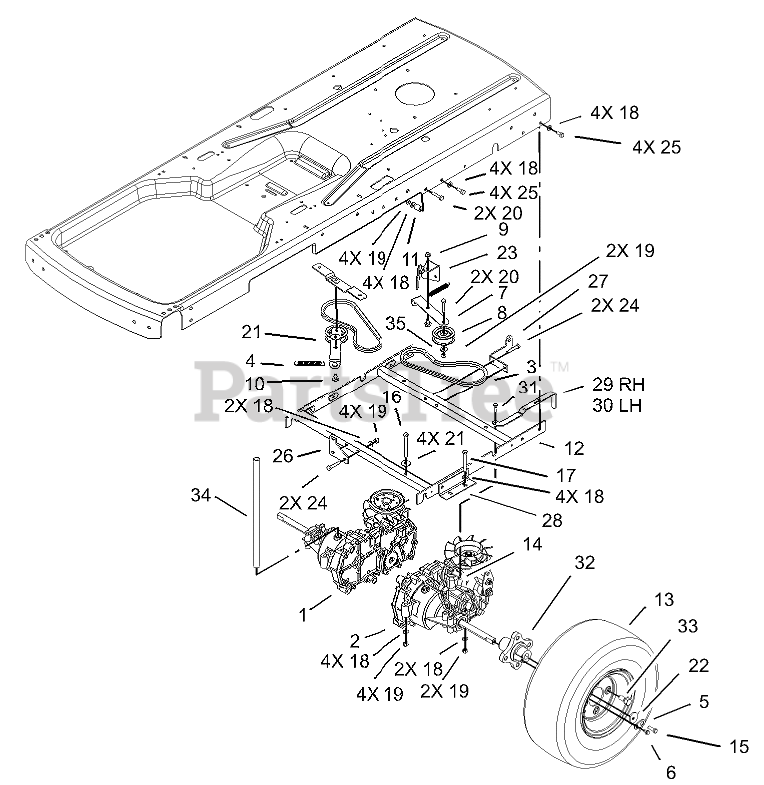

HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-3491

HYDROSTAT-RH

$

$

Not available

2

Toro 105-3492

HYDROSTAT-LH
(Superseded to 114-8521)

$2164.99

$

Usually ships in 3-6 days

0

3

Toro 106-2174

V-BELT

$21.99

$

Usually ships in 3-6 days

0

4

Toro 95-3805

SPRING

$14.99

$

In Stock, Qty 10

0

5

Toro 105-3438

TAB-LOCKING

$4.49

$

Usually ships in 3-6 days

0

6

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

7

Toro 105-7047

ARM-IDLER

$13.99

$

Usually ships in 3-6 days

0

8

Toro 106-2176

PULLEY-IDLER

$33.99

$

In Stock, Qty 20+

0

9

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

10

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 1 left!

0

11

Toro 95-8868-03

Tube-Stop-Black

$16.99

$

Usually ships in 3-6 days

0

12

Toro 106-2170-01

HYDRO MOUNT ASM

$

$

Not available

13

Toro 106-7005

REAR WHEEL ASM

$472.99

$

Usually ships in 3-6 days

0

13:4

Toro 232-47

TUBE
(Superseded to 232-37)

Note: Not illustrated

$33.99

$

In Stock, only 2 left!

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

16

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

17

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 17

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

22

106-7001

WASHER-WHEEL

$

$

Not available

23

Toro 105-3473

STOP - CLUTCH

$

$

Not available

24

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

25

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 105-7049

BRACKET-SPRING

$8.99

$

Usually ships in 3-6 days

0

27

Toro 105-7046

BRACKET-SPRING

$16.99

$

Usually ships in 3-6 days

0

28

Toro 105-7039-01

SUPPORT-HYDRO

$

$

Not available

29

Toro 106-2189

ARM - BYPASS, RH

$

$

Not available

30

Toro 106-2192

ARM - BYPASS, LH

$

$

Not available

31

Toro 106-2214

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

32

Toro 106-6987-03

HUB-MACHINED
(Superseded to 108-9533)

$164.99

$

Usually ships in 3-6 days

0

33

Toro 71-4450

BOLT-LUG

$3.49

$

Usually ships in 3-6 days

0

34

Toro 106-7002

VENT HOSE ASM

$72.99

$

In Stock, only 1 left!

0

34:1

Toro 107-1701

CAP VENT ASM

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0

35

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
