74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) BLOWER HOUSING ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

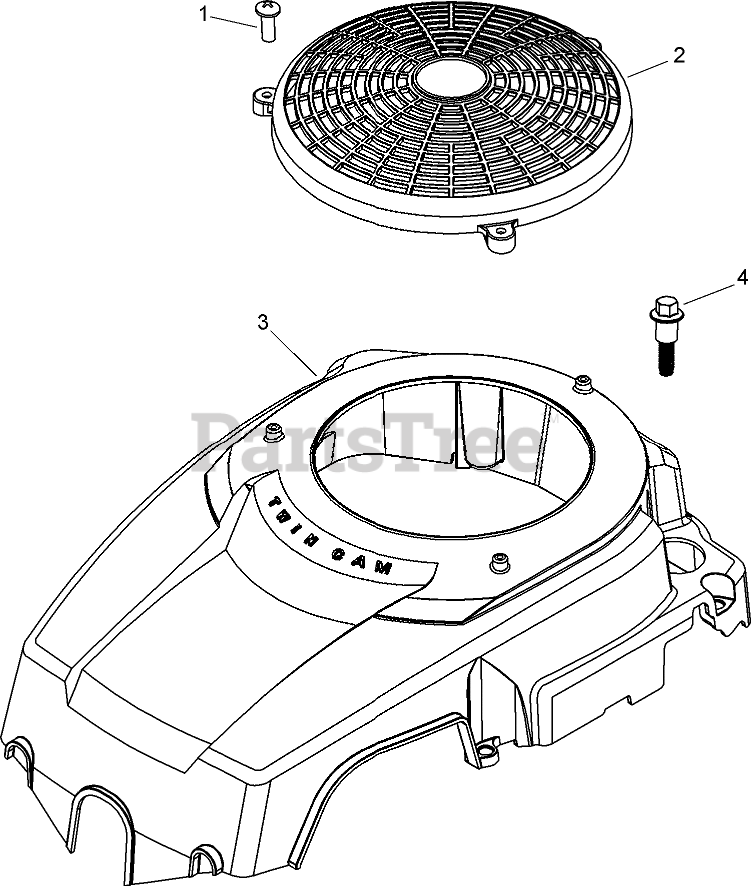

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 086 41-S

SCREW-PPH (11-16X1/2)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

2

Kohler 20 314 06-S

GUARD-FIXED

Note: Obtain parts from www.kohlerplus.com

$22.99

$

In Stock, only 1 left!

0

3

Kohler 20 755 11-S

BLOWER HOUSING AND GUARD KIT (INCLUDES 2, 3)
(Superseded to 20 755 40-S)

Note: Obtain parts from www.kohlerplus.com

$43.99

$

In Stock, only 3 left!

0

4

Kohler 20 086 06-S

Bolt-Shoulder (M6x1x26)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

Kohler 20 113 29-S

LABEL-ROUND, KOHLER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

Kohler 20 113 29-S

LABEL-ROUND, KOHLER

Note: Not illustrated

$2.99

$

In Stock, only 1 left!

0
