74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) Oil Pan and Lubrication Assembly Kohler SV590-0019 Parts Diagram

42" TimeCutter Zero-Turn Mower

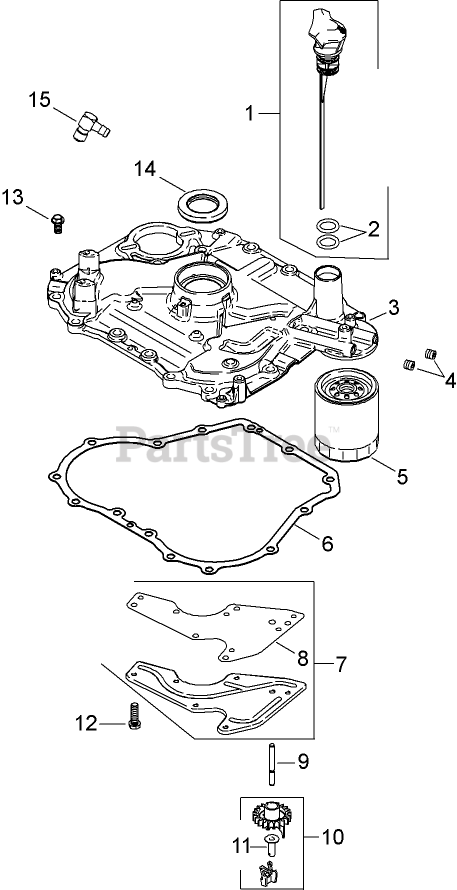

Oil Pan and Lubrication Assembly Kohler SV590-0019 Parts Diagram

  • Title

1

Toro 20 040 02-S

DIPSTICK BLADE KIT (YELLOW) (INCLUDES 2)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 20 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 20 009 10-S

CLOSURE PLATE ASM (INCLUDES 6, 15)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 12 050 01-S

See Supercession: 98020
(Superseded to 98020)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

6

Toro 20 041 01-S

Gasket-Plate, Closure

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 20 096 02-S

Oil Passage Cover Kit (Includes 8)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 20 041 02-S

Gasket-Passage, Oil

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro 20 144 03-S

Shaft-Gear, Governor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 20 310 03-S

Gear and Weight ASM (Includes 11)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro M-545013-S

SCREW-FLG, THD FRM (M5X0.8X13)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro M-851030-S

Screw-Flange, Hex (M8x1.25x30)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

14

Toro 20 032 01-S

Seal-Oil

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

15

Toro 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
