74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290001199 - 290999999) (2009) CRANKCASE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

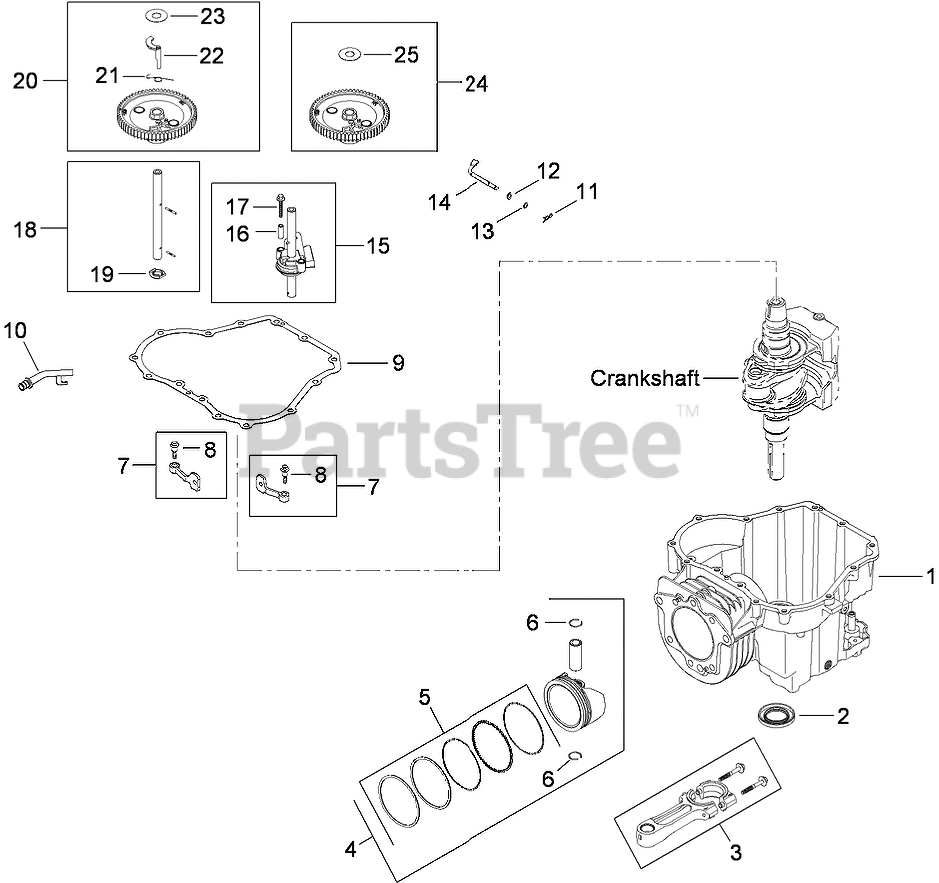

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 522 05

SV590/600 SHORT BLOCK

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 20 032 01-S

Seal-Oil
(Superseded to 20 032 08-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

Usually ships in 2-5 days

0

3

Kohler 20 067 05-S

CONNECTING ROD ASM

Note: Obtain parts from www.kohlerplus.com

$108.99

$

Usually ships in 2-5 days

0

4

Kohler 20 874 09-S

PISTON W/RING SET (94MM) (INCLUDES REF 5, 6)
(Superseded to 20 874 16-S)

Note: Obtain parts from www.kohlerplus.com

$114.99

$

Usually ships in 2-5 days

0

5

Kohler 20 108 04-S

RING SET (94MM)

Note: Obtain parts from www.kohlerplus.com

$95.99

$

In Stock, only 3 left!

0

6

Kohler 62 018 04-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 3 left!

0

7

Kohler 20 090 01-S

Cam Lever ASM
(Superseded to 20 090 12-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 8

0

8

Kohler 20 086 06-S

Bolt-Shoulder (M6x1x26)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 20+

0

9

Kohler 20 041 01-S

Gasket-Plate, Closure
(Superseded to 20 041 21-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 20 123 02-S

Tube-Back, Drain

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 5

0

11

Kohler 12 154 05-S

Clip-Pin, Hitch

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-631015-S

WASHER-FLAT (6mm)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

13

Kohler X-25-102-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

14

Kohler 20 144 02-S

Shaft-Cross, Governor

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 4 left!

0

15

Kohler 20 393 02-S

OIL PUMP ASM (INCLUDES REF 9, 16, 17)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

In Stock, only 1 left!

0

16

Kohler 20 112 02-S

Spacer-Screw, Oil Pump
(Superseded to 20 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

17

Kohler 20 086 13-S

Screw-Pump, Oil
(Superseded to 20 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 20 144 11-S

CAMSHAFT CENTER ASM (EXHAUST) (INCLUDES REF 19)

Note: Obtain parts from www.kohlerplus.com

$20.99

$

In Stock, only 2 left!

0

19

Kohler 20 468 08-S

WASHER-THRUST

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

20

Kohler 20 010 04-S

Cam Gear ASM (INCLUDES REF 21, 22, 23)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

21

Kohler 20 089 06-S

Spring-A C R

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 14

0

22

Kohler 20 044 23-S

WEIGHT-ACR
(Superseded to 20 044 32-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 2 left!

0

23

Kohler 20 468 03-S

Washer-Thrust, A C R

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

24

Kohler 20 010 04-S

Cam Gear ASM (INCLUDES REF 23)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

25

Kohler 20 468 03-S

Washer-Thrust, A C R

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0
