74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290001199 - 290999999) (2009) IGNITION &ELECTRICAL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

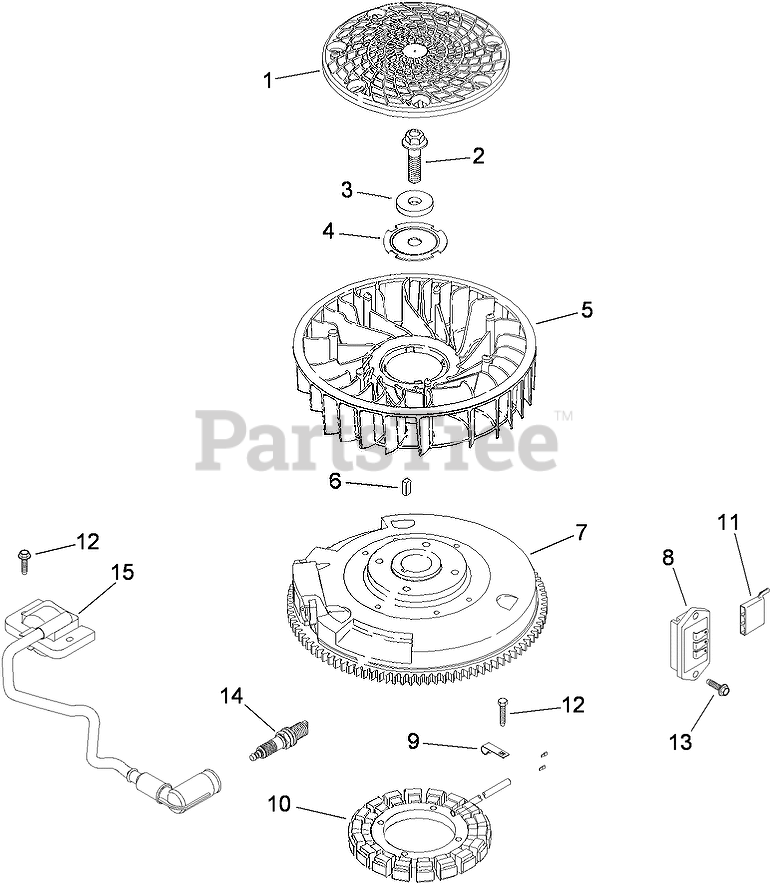

IGNITION &ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 162 02-S

Screen-Grass

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 4 left!

0

2

Kohler 25 086 125-S

SCREW-FLANGE, HEX
(Superseded to 25 086 362-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 10

0

3

Kohler 25 468 09-S

WASHER-FLAT

Note: Obtain parts from www.kohlerplus.com

$6.49

$

Usually ships in 2-5 days

0

4

Kohler 20 146 05-S

PLATE-MOUNTING, FAN

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

5

Kohler 20 157 01-S

Fan

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, only 1 left!

0

6

Kohler 25 340 02-S

KEY-FLYWHEEL, STRAIGHT
(Superseded to 25 340 04-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 4 left!

0

7

Kohler 20 025 40-S

FLYWHEEL
(Superseded to 20 025 44-S)

Note: Obtain parts from www.kohlerplus.com

$251.99

$

In Stock, only 1 left!

0

8

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

9

Kohler 20 154 04-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 237878-S

15 AMP STATOR KIT (INCLUDES 25 452 01-S)

Note: Obtain parts from www.kohlerplus.com

$149.99

$

In Stock, Qty 10

0

11

Kohler 25 155 41-S

CONNECTOR (3 CONTACT)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, Qty 11

0

12

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 17

0

13

Kohler 41 403 10-S

RECTIFIER/REGULATOR
(Superseded to 25 403 37-S)

Note: Obtain parts from www.kohlerplus.com

$105.99

$

In Stock, only 2 left!

0

14

Kohler 25 132 14-S

SPARK PLUG (R F I)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

15

Kohler 20 584 03-S

MODULE-IGNITION (C D I FIXED)

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 8

0

Kohler 28 176 13-S

HARNESS-WIRING

Note: Obtain parts from www.kohlerplus.com

$103.99

$

Usually ships in 2-5 days

0

Kohler 28 176 13-S

HARNESS-WIRING

Note: Not illustrated

$103.99

$

Usually ships in 2-5 days

0

Kohler 25 452 01-S

Terminal

Note: Not illustrated

$5.49

$

Usually ships in 2-5 days

0

Kohler 25 452 01-S

Terminal

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

Kohler 25 454 05-S

TIE

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

Kohler 25 454 05-S

TIE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0
