74363 (Z 4220) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000505 - 290999999) (2009) CRANKCASE ASSEMBLY KOHLER SV610-0211 Parts Diagram

42" TimeCutter Zero-Turn Mower

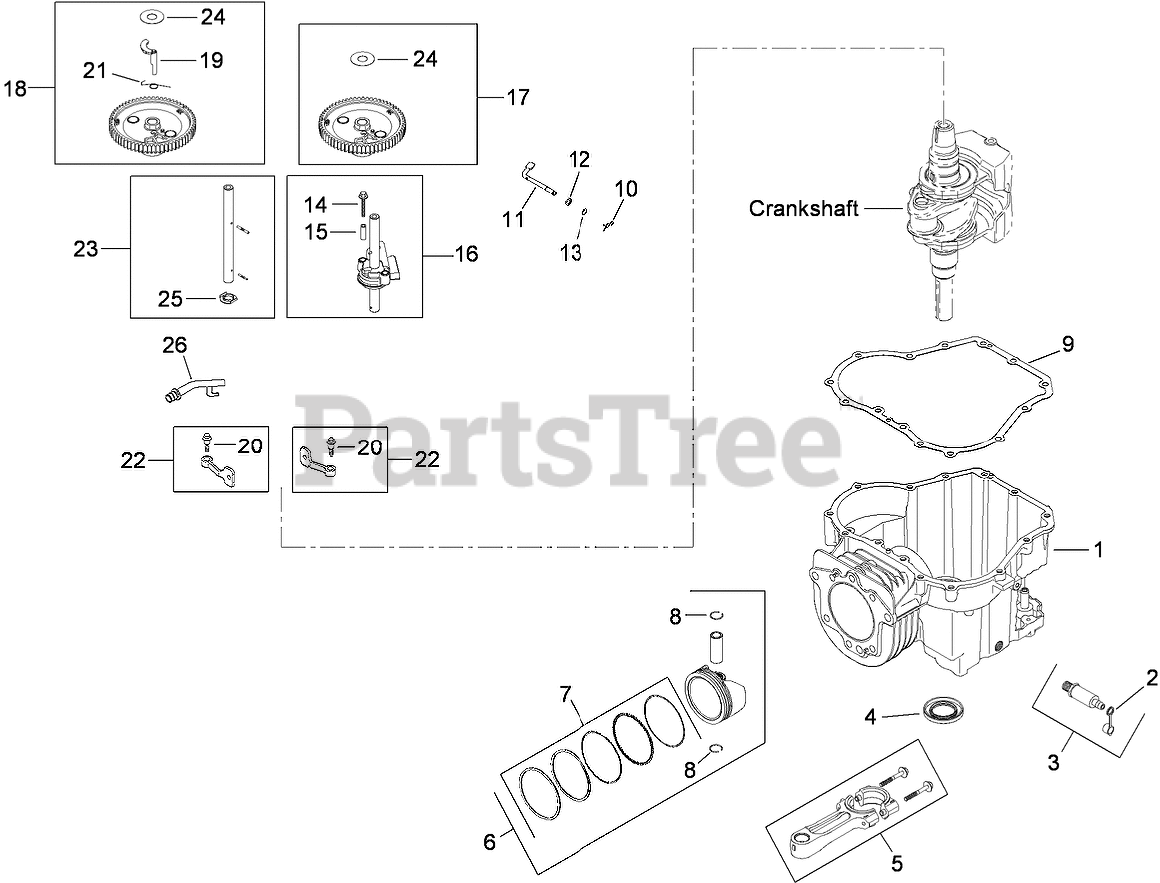

CRANKCASE ASSEMBLY KOHLER SV610-0211 Parts Diagram

  • Title

1

Kohler 20 522 07

SV610/620 SHORT BLOCK

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 25 173 14-S

CAP-VALVE, OIL DRAIN

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

3

Kohler 25 755 14-S

OIL DRAIN VALVE KIT (INCLUDES REF 2)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, Qty 5

0

4

Kohler 20 032 01-S

Seal-Oil
(Superseded to 20 032 08-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

5

Kohler 20 067 05-S

CONNECTING ROD ASM

Note: Obtain parts from www.kohlerplus.com

$80.99

$

Usually ships in 2-5 days

0

6

Kohler 20 874 09-S

PISTON W/RING SET (94MM) (INCLUDES REF 7, 8)
(Superseded to 20 874 16-S)

Note: Obtain parts from www.kohlerplus.com

$114.99

$

In Stock, only 1 left!

0

7

Kohler 20 108 04-S

RING SET (94MM)

Note: Obtain parts from www.kohlerplus.com

$63.99

$

Usually ships in 2-5 days

0

8

Kohler 62 018 04-S

RETAINER-PIN, PISTON

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

9

Kohler 20 041 01-S

Gasket-Plate, Closure
(Superseded to 20 041 21-S)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 1 left!

0

10

Kohler 12 154 05-S

Clip-Pin, Hitch

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 20 144 02-S

Shaft-Cross, Governor

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0

12

Kohler M-631015-S

WASHER-FLAT (6mm)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

13

Kohler X-25-102-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

14

Kohler 20 086 13-S

Screw-Pump, Oil
(Superseded to 20 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 20 112 02-S

Spacer-Screw, Oil Pump
(Superseded to 20 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 20 393 02-S

OIL PUMP ASM (INCLUDES REF 14, 15)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

In Stock, only 2 left!

0

17

Kohler 20 010 05-S

CAM GEAR ASM (INTAKE)) (INCLUDES REF 24)
(Superseded to 20 010 22-S)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, only 1 left!

0

18

Kohler 20 010 06-S

CAM GEAR ASM (EXHAUST) (INCLUDES REF 19, 21, 24)
(Superseded to 20 010 23-S)

Note: Obtain parts from www.kohlerplus.com

$34.99

$

In Stock, only 2 left!

0

19

Kohler 20 044 23-S

WEIGHT-ACR
(Superseded to 20 044 32-S)

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, only 3 left!

0

20

Kohler 20 086 06-S

Bolt-Shoulder (M6x1x26)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 18

0

21

Kohler 20 089 06-S

Spring-A C R

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 8

0

22

Kohler 20 090 01-S

Cam Lever ASM (INCLUDES REF 20)
(Superseded to 20 090 12-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 1 left!

0

23

Kohler 20 144 11-S

CAMSHAFT CENTER ASM (EXHAUST) (INCLUDES REF 25)

Note: Obtain parts from www.kohlerplus.com

$20.99

$

In Stock, only 1 left!

0

24

Kohler 20 468 03-S

Washer-Thrust, A C R

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

25

Kohler 20 468 08-S

WASHER-THRUST

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 3 left!

0

26

Kohler 20 123 02-S

Tube-Back, Drain

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 11

0
