74372 (Z 5020) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV720-0029 Parts Diagram

50" TimeCutter Zero-Turn Mower

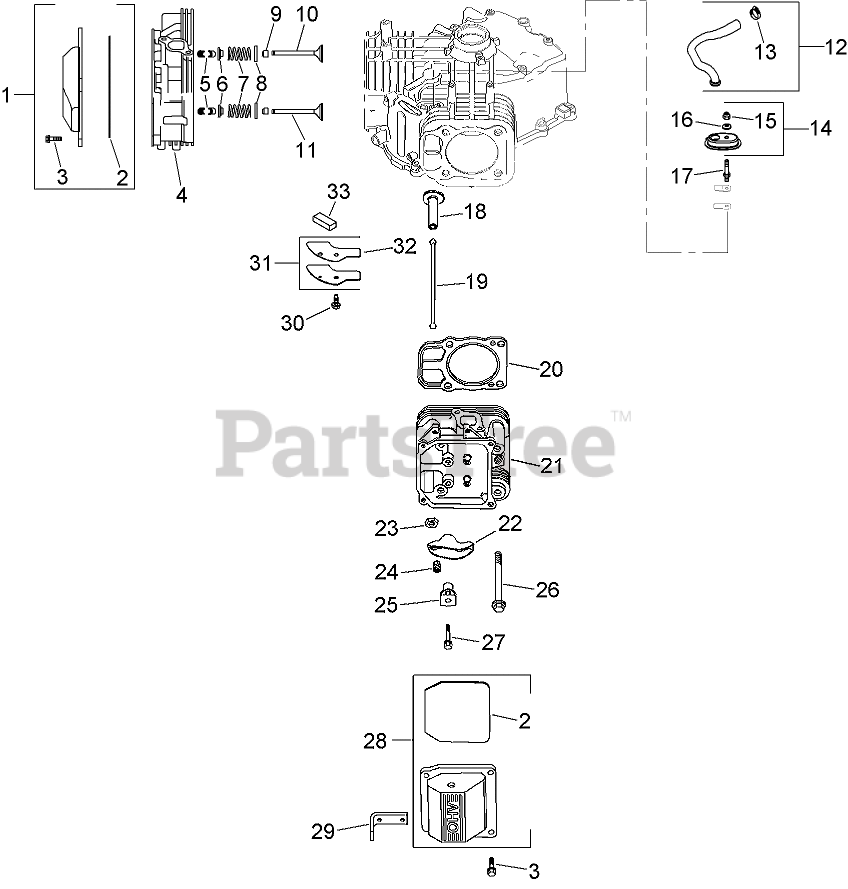

HEAD, VALVE AND BREATHER ASSEMBLY KOHLER SV720-0029 Parts Diagram

  • Title

1

Kohler 24 755 141-S

PLAIN ROCKER COVER ASM (INCLUDES 2, 3 (QTY 4))

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, only 2 left!

0

2

Kohler 24 153 28-S

O-RING, VALVE COVER
(Superseded to 24 153 30-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, Qty 20+

0

3

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 32 318 01-S

HEAD ASM, NO.1 CYLINDER (INCLUDES 26 (QTY 4) AND HEAD GASKET)
(Superseded to 32 818 01-S)

Note: Obtain parts from www.kohlerplus.com

$198.99

$

Usually ships in 2-5 days

0

5

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 8

0

6

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 7

0

7

Kohler 24 089 02-S

SPRING-VALVE

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 2 left!

0

8

Kohler 235011-S

RETAINER-SPRING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 14

0

9

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, Qty 20+

0

10

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Obtain parts from www.kohlerplus.com

$30.99

$

In Stock, Qty 16

0

11

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, Qty 11

0

12

Kohler 32 326 04-S

Hose-Breather (INCLUDES 13)
(Superseded to 32 326 06-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 2 left!

0

13

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 6

0

14

Kohler 32 081 02-S

Housing-Breather (INCLUDES 15,16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

15

Kohler M-547050-S

NUT-LOCK (M5X.8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

16

Kohler 32 468 01-S

WASHER-SEALING

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

17

Kohler 32 072 02-S

Stud-Breather Cover
(Superseded to 32 072 03-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 32 019 01-S

Tappet
(Superseded to 32 019 02-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 11

0

19

Kohler 32 411 02-S

Rod-Push

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

20

Kohler 24 841 03-S

Cylinder Head Gasket Kit (IncludesHead Mounting hardware and 24 041 49-S, 2415327-S)
(Superseded to 24 841 04-S)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, Qty 11

0

21

Kohler 32 318 02-S

Head ASM (No.2 Cylinder) (INCLUDES 26 (QTY4) AND HEAD GASKET)
(Superseded to 32 755 40-S)

Note: Obtain parts from www.kohlerplus.com

$179.99

$

In Stock, only 1 left!

0

22

Kohler 32 186 02-S

Arm-Rocker
(Superseded to 32 755 06-S)

Note: Obtain parts from www.kohlerplus.com

$31.99

$

Usually ships in 2-5 days

0

23

Kohler 32 100 04-S

Nut-Hex (M10x0.75)

Note: Obtain parts from www.kohlerplus.com

$38.99

$

Usually ships in 2-5 days

0

24

Kohler 32 086 03-S

Screw-Set

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

25

Kohler 24 599 02-S

PIVOT-ARM, ROCKER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

26

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 9

0

27

Kohler 32 086 04-S

Screw-Hex Flange (M6x1.0x45)
(Superseded to 25 086 764-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

28

Kohler 32 096 06-S

BREATHER VALVE COVER ASM (INCLUDES 2)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 3 left!

0

29

Kohler 24 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

30

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

31

Kohler 32 096 04-S

BREATHER COVER KIT

Note: Obtain parts from www.kohlerplus.com

$2.99

$

Usually ships in 2-5 days

0

32

Kohler 32 041 01-S

GASKET-COVER, BREATHER

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

33

Kohler 32 050 01-S

FILTER-BREATHER

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

Kohler 24 041 49-S

GASKET-COVER, BREATHER
(Superseded to 25 041 17-S)

Note: Not illustrated

$2.49

$

In Stock, Qty 20+

0

Kohler 24 041 49-S

GASKET-COVER, BREATHER
(Superseded to 25 041 17-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

Kohler 24 153 27-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 9

0

Kohler 24 153 27-S

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 9
