74372 (Z 5020) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV720-0029 Parts Diagram

50" TimeCutter Zero-Turn Mower

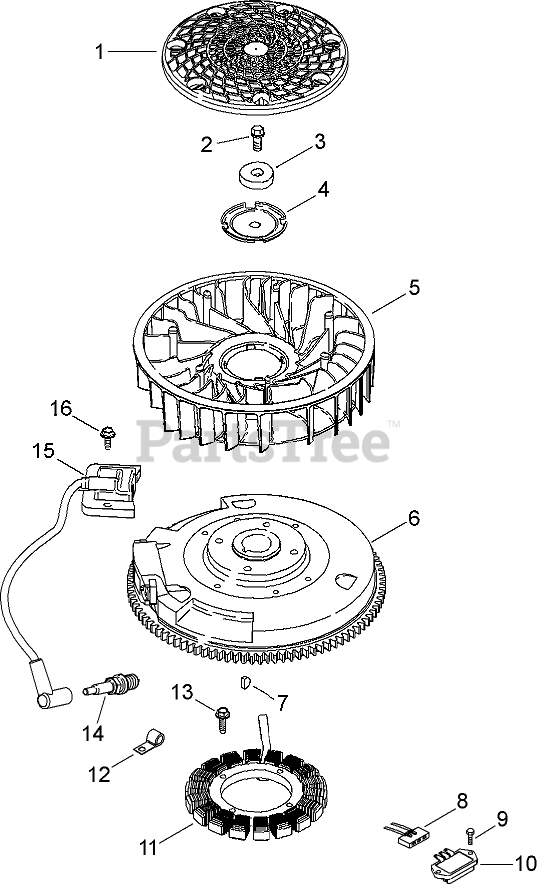

IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV720-0029 Parts Diagram

  • Title

1

Kohler 32 162 03-S

SCREEN-GRASS

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 10

0

2

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 1 left!

0

3

Kohler 12 468 03-S

WASHER-FLAT (13/32)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

4

Kohler 20 146 02-S

Plate-Fan Mounting
(Superseded to 20 146 05-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

5

Kohler 32 157 01-S

Fan

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 32 025 08-S

Flywheel
(Superseded to 32 025 22-S)

Note: Obtain parts from www.kohlerplus.com

$346.99

$

In Stock, only 4 left!

0

7

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 2 left!

0

8

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, Qty 11

0

9

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

10

Kohler 41 403 09-S

Rectifier-Regulator
(Superseded to 41 403 10-S)

Note: Obtain parts from www.kohlerplus.com

$105.99

$

In Stock, only 2 left!

0

11

Kohler 237878-S

15 AMP STATOR KIT

Note: Obtain parts from www.kohlerplus.com

$149.99

$

In Stock, Qty 10

0

12

Kohler 235173-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$11.99

$

Usually ships in 2-5 days

0

13

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

14

Kohler 25 132 14-S

SPARK PLUG (R F I)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

15

Kohler 25 584 01-S

MODULE-IGNITION, R F I
(Superseded to 24 584 45-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

16

Kohler M-561025-S

Screw-Socket, Hex (M5x0.8x25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

Kohler 25 454 03-S

TIE-WIRE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 25 454 03-S

TIE-WIRE

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 32 176 04-S

HARNESS-WIRING
(Superseded to 32 176 14-S)

Note: Not illustrated

$

$

Not available

Kohler 32 176 04-S

HARNESS-WIRING
(Superseded to 32 176 14-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
