74374 (Z 5040) - Toro 50" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) Engine and Clutch Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

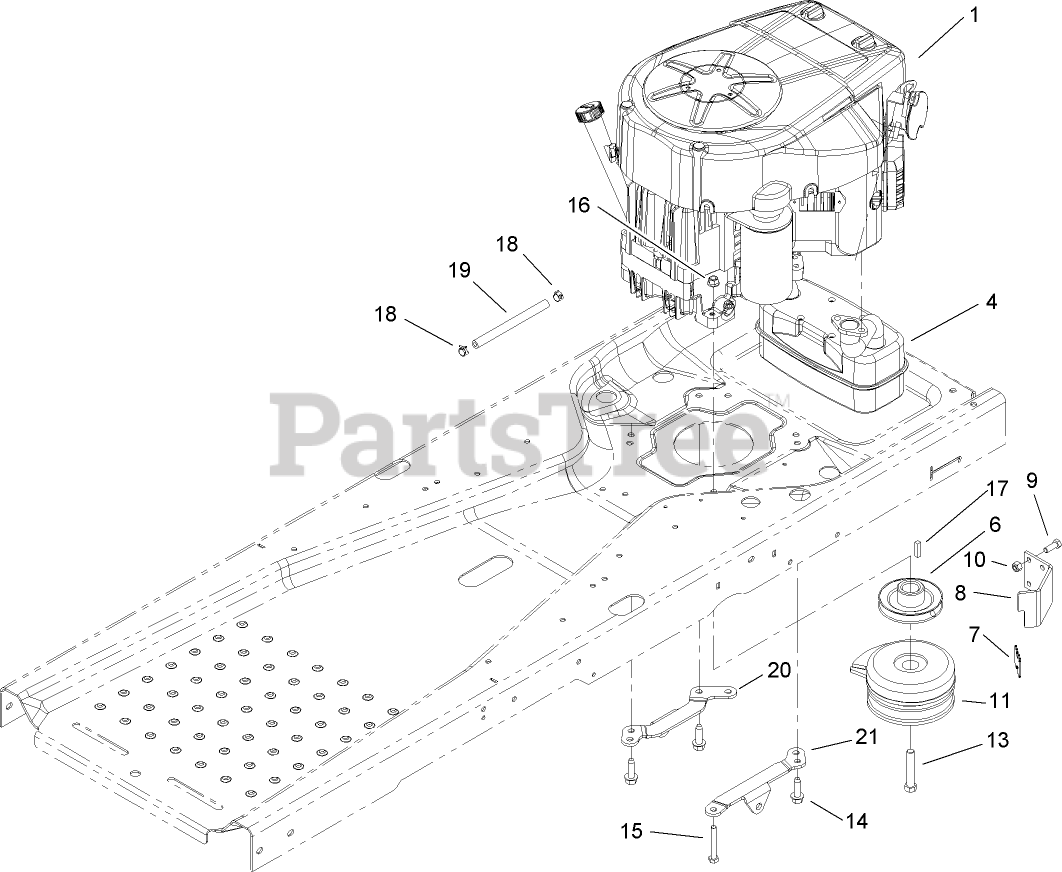

Engine and Clutch Assembly Parts Diagram

  • Title

1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

1

Loose Parts Package

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

4

Toro 112-4020

DISCONTINUED

$

$

Not available

6

Toro 110-6758

See Supercession: 114-1622
(Superseded to 114-1622)

$148.99

$

Usually ships in 3-6 days

0

7

Toro 112-3974

See Supercession: 112-4033
(Superseded to 112-4033)

$8.99

$

In Stock, only 2 left!

0

8

Toro 110-6896

STOP-CLUTCH

$14.99

$

In Stock, only 1 left!

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 110-6766

CLUTCH-ELECTRIC, PTO

$608.99

$

Usually ships in 3-6 days

0

13

Toro 3212-11

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

14

Toro 32144-109

SCREW-THD

$5.49

$

Usually ships in 3-6 days

0

15

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 13

0

16

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

17

Toro 5-7280

KEY

$5.99

$

In Stock, Qty 10

0

18

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

19

Toro 112-9836

HOSE-FUEL

$

$

Not available

20

Toro 110-6798

SUPPORT-HYDRO, RH

$31.99

$

In Stock, Qty 9

0

21

Toro 110-6799

SUPPORT-HYDRO, LH

$31.99

$

In Stock, Qty 6

0
