74375 (Z 5060) - Toro 50" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) SEAT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

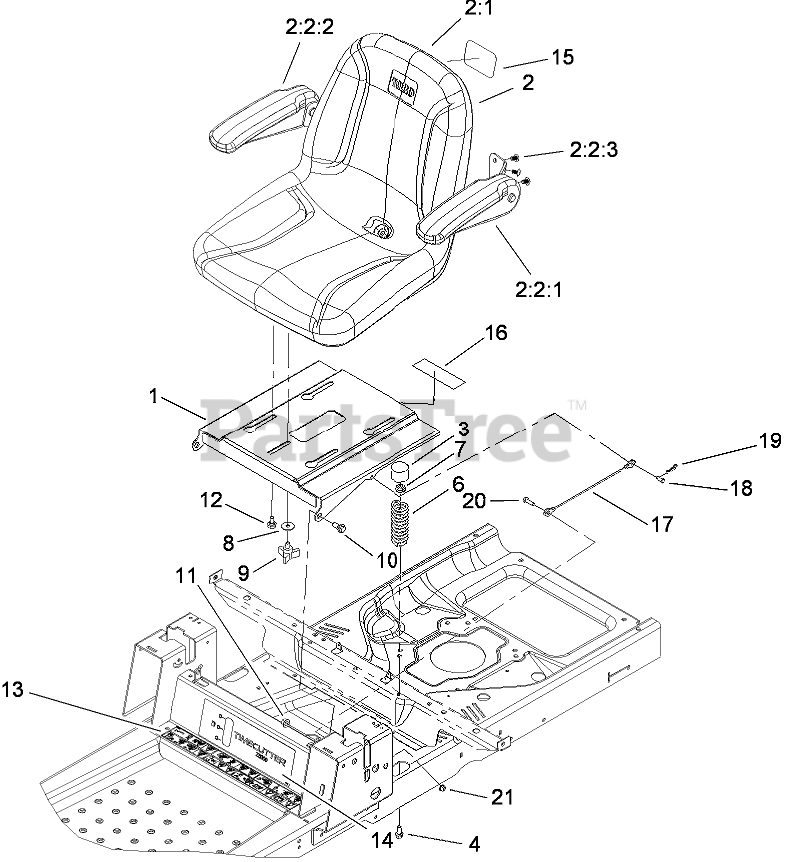

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2465-03

BASE-SEAT

$121.99

$

In Stock, only 3 left!

0

2

Toro 110-6776

18 INCH SEAT ASM
(Superseded to 117-1227)

$

$

Not available

2:1

Toro 110-6772

SEAT-18 INCH
(Superseded to 117-1226)

$

$

Not available

2:2:1

Toro 110-6569

LH ARMREST KIT

$149.99

$

Usually ships in 3-6 days

0

2:2:2

Toro 110-6570

RH ARMREST KIT

$149.99

$

Usually ships in 3-6 days

0

2:2:3

Toro 108-6179

SCREW-HSBH

$12.99

$

Usually ships in 3-6 days

0

2:2

ARMREST KIT

Note: Not illustrated

$

$

Not available

3

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 11

0

4

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, only 4 left!

0

6

Toro 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 19

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

9

Toro 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

10

Toro 94-7582

BOLT-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

11

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 37-8771

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

13

Toro 115-2469

DECAL-DANGER

$32.99

$

Usually ships in 3-6 days

0

14

Toro 115-2488

DECAL-TIMECUTTER
(Superseded to 117-1268)

$28.99

$

Usually ships in 3-6 days

0

15

Toro 99-2385

DECAL

$4.49

$

Usually ships in 3-6 days

0

16

Toro 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

17

Toro 109-2628

CABLE-STOP, SEAT

$19.99

$

In Stock, only 2 left!

0

18

Toro 60-1730

PIN-CLEVIS

$5.49

$

In Stock, only 2 left!

0

19

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
